IPG-50H10PE-WP
1.0M Wireless WIFI Network Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3518EV100
- Listed:
- 2015
Xiongmai
1.0M Wireless WIFI Network Camera Module
Features
- Supports Wi-Fi, a key WPS function
- Support Micro SD card,up to 32G
- Support 3D DNR, DWDR
- Support ONVIF;Support Third-party NVR
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
- Support cloud service, network penetration, alarm information pushed to phone ,etc.
| Model | IPG-50H10PE-WP / IPG-50HV10PT-WP |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP( Hi3518E),pure hard compression ,watch dog / Embedded RTOS,dual-core 32bit DSP(Hi3518EV200),pure hard compression ,watch dog |
| Sensor | 1.0M 1/4" OV 9712 CMOS sensor ;color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 / 1.0M 1/4" H62 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable |
| Image output | Main stream:1280*720@25fps ;sub-stream: 704*576@25fps ; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | No |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization; |
| Audio interface | 1ch input,electrical level 2Vp-p,impedance 1kΩ,support pickup input;1ch output,impedance 16Ω,30mv output power,support to connect the headset or power amplifier |
| Network interface | N/A |
| Extension interface | support WIFI Reset / Alarm, |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | 1/0 (support alarm input and video link to background) |
| WIFI interface | Supports Wi-Fi, a key WPS function |
| Reset interface | N/A |
| SD Card | N/A |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | N/A |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | No |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC 5V input, power consumption:≤3W, / DC4.5V-12V input, power consumption:≤4W |
| Dimension | 38mm*38mm |
| Other | Support POE power supply (optional), not support any custom |
Photos
Files

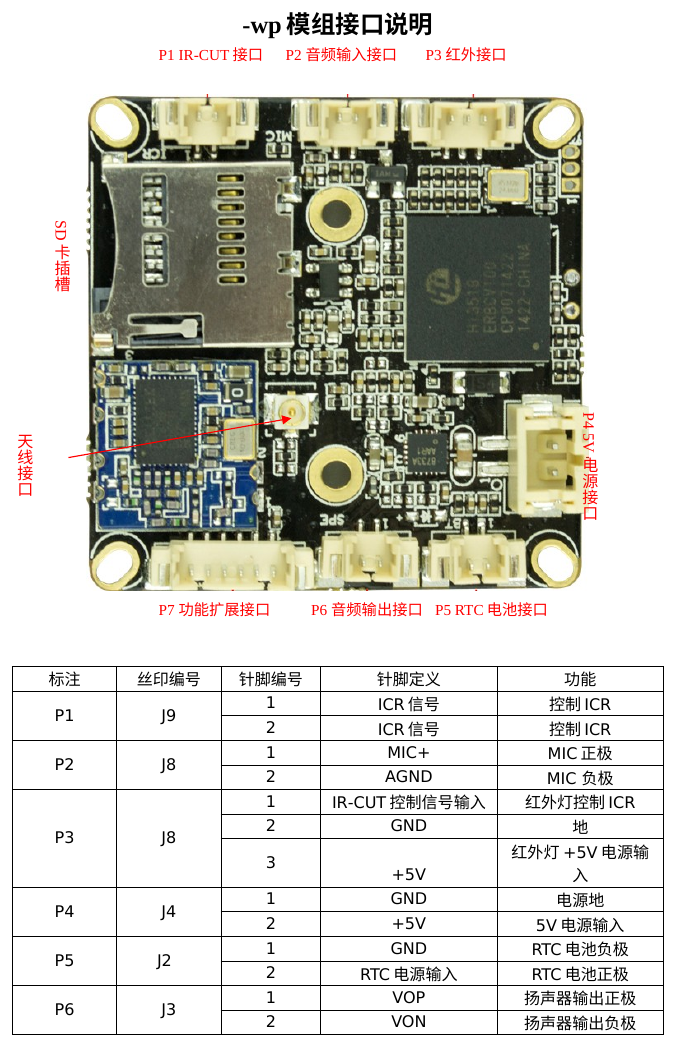

- IPG-50H10PE-WP-pinout-1.png (pinout, 536 KB)

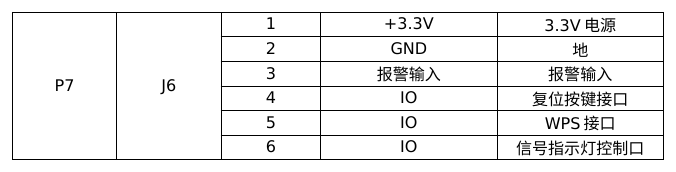

- IPG-50H10PE-WP-pinout-2.png (pinout, 18 KB)
- IPG-50H10PE-WP-interface-zh.doc (document, 761 KB)
- IPG-50H10PE-WP-interface-zh.pdf (document, 218 KB)
