IPG-50XF20PS-WPN
2.0M Wireline&Wi;-Fi IP Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- XM510F
- Sensor:
- SC2235P
- Listed:
- 2019
Xiongmai
2.0M Wireline&Wi;-Fi IP Module
Features
- 2.0M resolution,clear and fine images
- Supports Wireline、Wi-Fi
- Support 3D DNR, DWDR
- Advanced H.264 video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5
- Support ONVIF;access third party
- Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IPG-50XF20PS-WPN |
|---|---|
| System structure | Embedded RTOS, dual-core 32-bit DSP (XM510F),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.9" SC2235P CMOS sensor,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.265X/H.264,support dual stream,AVI;0.1M~8Mpbs variable |
| Image output | Main stream: 1280*1080@12fps; sub-stream: 640*360@12fps |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | No |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Extension interface | N/A |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | Supports Wi-Fi |
| Reset interface | Support |
| SD Card | Support Maximum 128G |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | No |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC5V-12V |
| Dimension | (38mm*38mm)*2 |
| Other | Does not accept any custom. |
Photos
Files

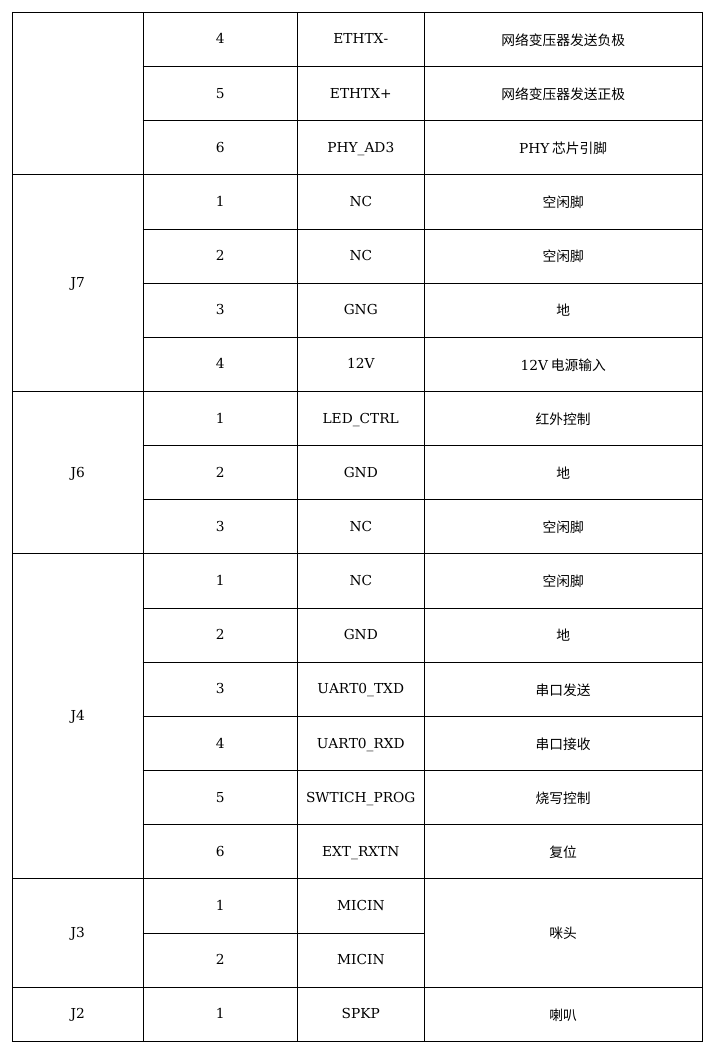

- IPG-50XF20PS-WPN-pinout-1.png (pinout, 50 KB)

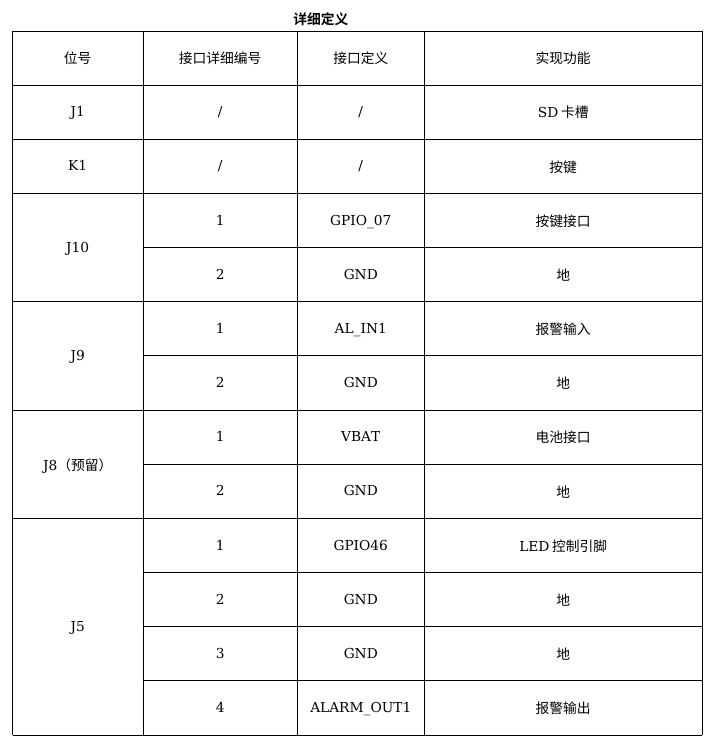

- IPG-50XF20PS-WPN-pinout-2.png (pinout, 36 KB)
- IPG-50XF20PS-WPN-interface-zh.docx (document, 2.6 MB)
- IPG-50XF20PS-WPN-interface-zh.pdf (document, 1.0 MB)
