IPG-53H20PL-S
2.0M Low-illumination CMOS IP Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516CV100
- Sensor:
- IMX322
- Device IDs:
- 00002532
- Listed:
- 2016
cctvsp.ru
IP camera module IPG-53H20PL-S (Hi3516c + IMX322)
In its time, the most popular module for a two-megapixel IP camera. It carries a 1/2.8'' Sony IMX322 CMOS Sensor and a HiSilicon Hi3516C Professional HD IP DSP SoC (1920x1080 at 25 fps, realtime).
Note: this module was discontinued long ago; remaining stock is being sold off. The manufacturer's recommended replacement is IVG-HP201Y-AE, with the newer 2MP IMX323 sensor and a new, more powerful Hi3516Cv300 SoC with video analytics and h265 support.
Used in Low Illumination series outdoor and indoor cameras; performs excellently when shooting daytime and night-time video.
Unlike its higher-end sibling IPG-53H20PL-AE, this module has no support for audio, alarm inputs or USB devices, but it can fairly easily be converted into it by replacing the flash memory (for USB to work) and soldering on the missing connectors and components.
Very popular among enthusiasts, since an SDK exists for the chip and there are alternative firmwares with support for Yandex Disk, Telegram, MQTT, WiFi modules and the IPeye cloud.
| Sensor | 1/2.8'' Sony IMX322 CMOS Sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516C Professsional HD IP Camera SoC |
Xiongmai
2.0M Low-illumination CMOS IP Camera Module
Features
- 1/2.9" imx322 CMOS
- main stream: 1920*1080，1280*720;sub-stream:704*576
- Support Micro SD card,up to 32G
- Support 3D DNR, DWDR
- Support ONVIF;Support Third-party NVR
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
- Support cloud service, network penetration, alarm information pushed to phone ,etc.
| Model | IPG-53H20PL-S / IPG-53H20PL-AE / IPG-53H20PL-B / IPG-53H20PL-P |
|---|---|
| System Structure | Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog; |
| image sensor | 1/2.9" imx322 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.6Lux@F1.2,black/white:0.08 Lux@F1.2 ； |
| Video compression | H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable; |
| Image output | main stream: 1920*1080 ， 1280*720;sub-stream:704*576; |
| audio interface | no / input,level:2Vp-p,impedance:1kΩ,supportsound pick-up input; / 1ch input,level:2Vp-p,impedance:1kΩ,supportsound pick-up input;1ch output, impedance 16Ω,30mw,support microphone; |
| audio compression | no / G.711 / G.711,support bidrectional talk,audio&video synchronization |
| network interface | 1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc; |
| auto iris | no / one auto iris interface,support DC drive |
| photo resistance | one photo resistance interface,support photo resistance signal links to IR-CUT |
| PTZ | no / 1*RS422/RS485, support PELCO(P) and other protocols; |
| USB | no / 1*USB, support WIFI/3G |
| alarm input | no / 1ch alarm input / 2ch alarm input |
| alarm output | no / 1ch alarm output |
| SD | no / Max.32G |
| Features | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture ； united remote client monitoring sofaware 、 MYEYE;perfect SDK; |
| ONVIF | support |
| mobile monitoring | support multiple mobile monitoring （ iPhone ， Windows Mobile ， BlackBerry ， Symbian ， Android ） |
| Other functions | DC12V,3W(consumption),38mm*38mm; |
| Notes | Support POE （ optional ）， B1-type tail-line （ without BNC interface ） |

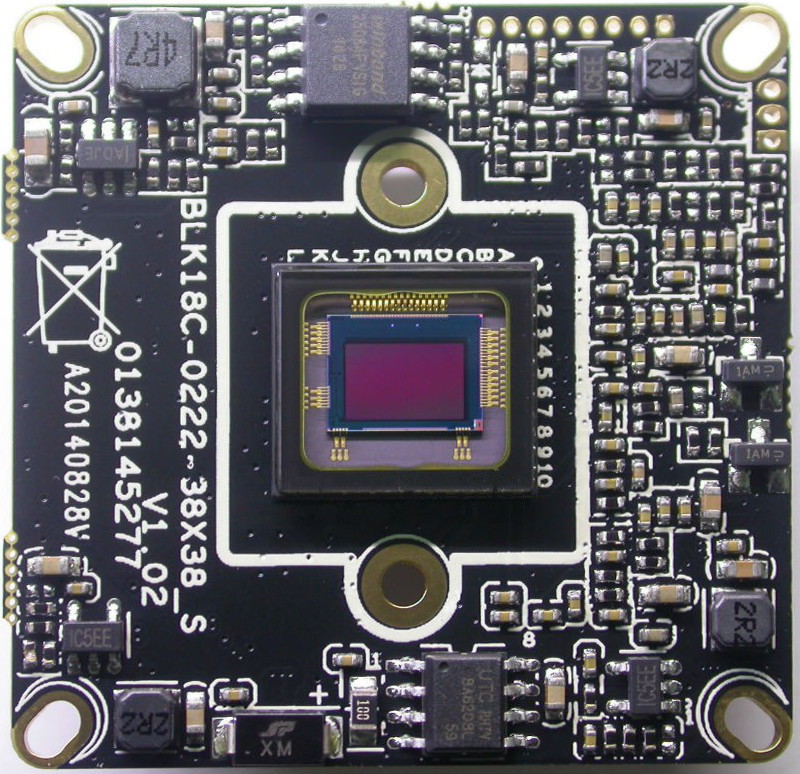

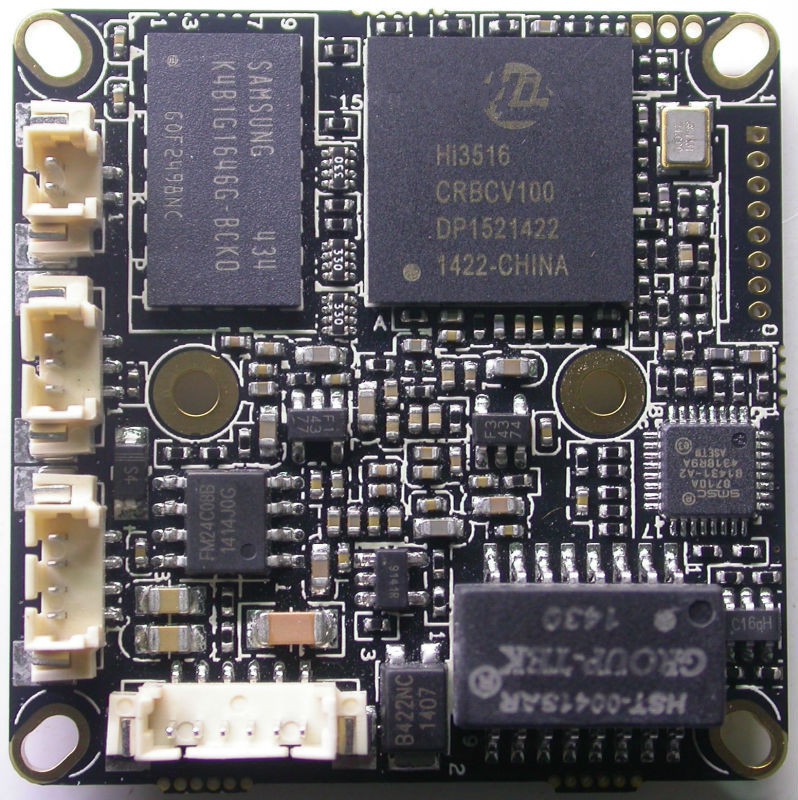

Photos
Files

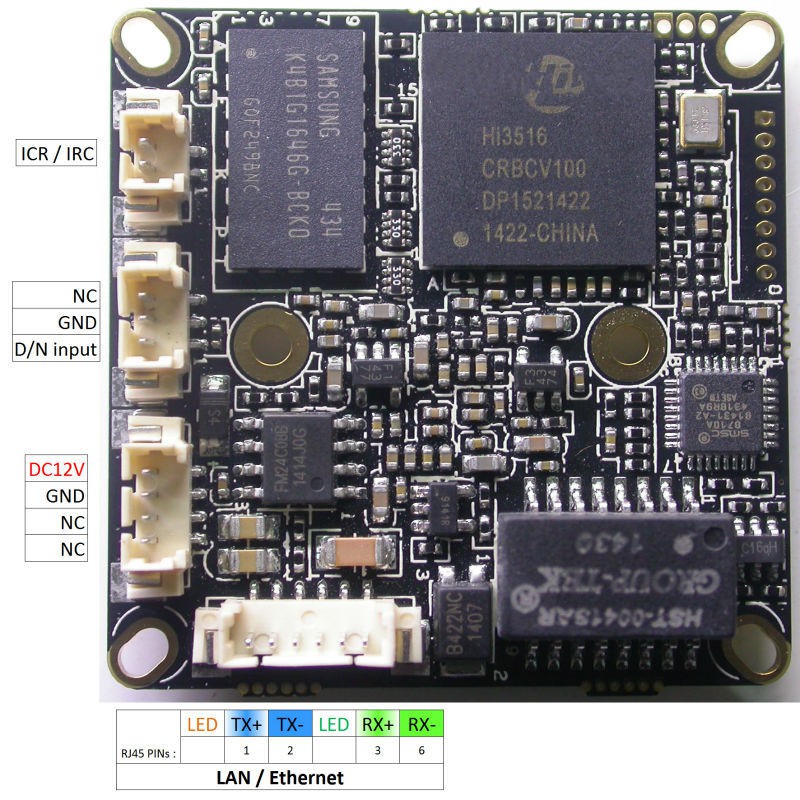

- pinout-3.jpg (pinout, 191 KB)

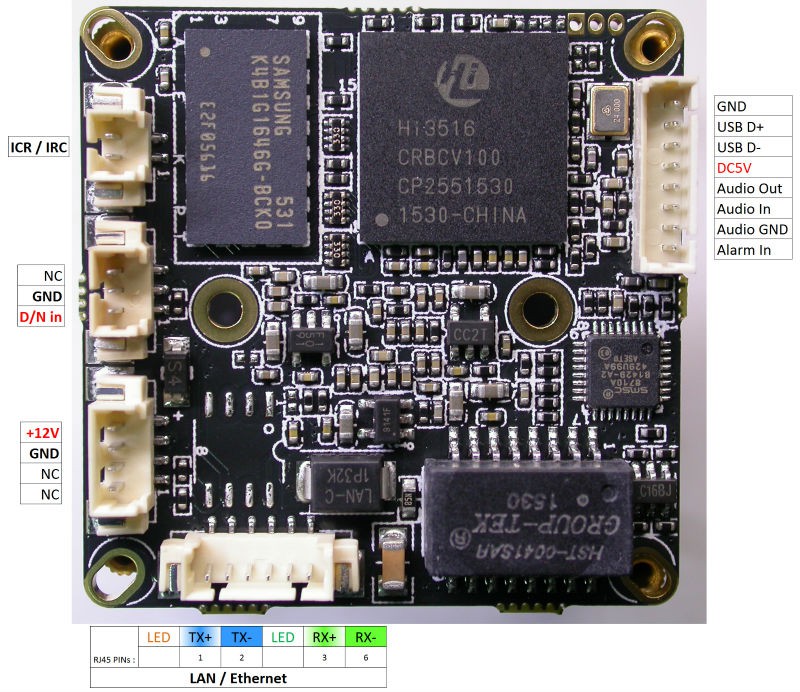

- pinout-4.jpg (pinout, 178 KB)
