IPG-53HV13PT-A

1.3M Hi3518EV200 CMOS IP Camera Module · IP Camera Module

Maker:
Xiongmai
Device IDs:
00018531
Listed:
2017

Xiongmai

1.3M Hi3518EV200 CMOS IP Camera Module

Features

  • 1.3M Low-illumination CMOS sensor
  • Support 3D DNR, DWDR
  • Support ONVIF;Support Third-party NVR
  • Support for mobile video surveillance(iOS,android)
  • Support Web, CMS, platform management software MYEYE,Provide SDK
  • Support cloud service, network penetration, alarm information pushed to phone ,etc.
Specifications
ModelIPG-53HV13PA-S/IPG-53HV13PA-A / IPG-53HV13PT-S/IPG-53HV13PT-A
System structureEmbedded RTOS,dual-core 32bit DSP( Hi3518EV200 ),pure hard compression ,watch dog
Sensor1.3M 1/3"AR0130 Low-illumination CMOS sensor;color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 / 1.3M 1/3" H65 Low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compressionH.265X/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image outputMain stream:1920*1080@25fps，1280*720 @25fps； sub-stream:704*576 @25fps ;
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,electrical level 2Vp-p,impedance 1kΩ,support pickup input;1ch output,impedance 16Ω,30mv output power,support to connect the headset or power amplifier
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interface1*USB,support WIFI/3G,support SD(-S unsupport)
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background, Audio or Alarm)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherSupport POE power supply (optional), not support any custom

Photos

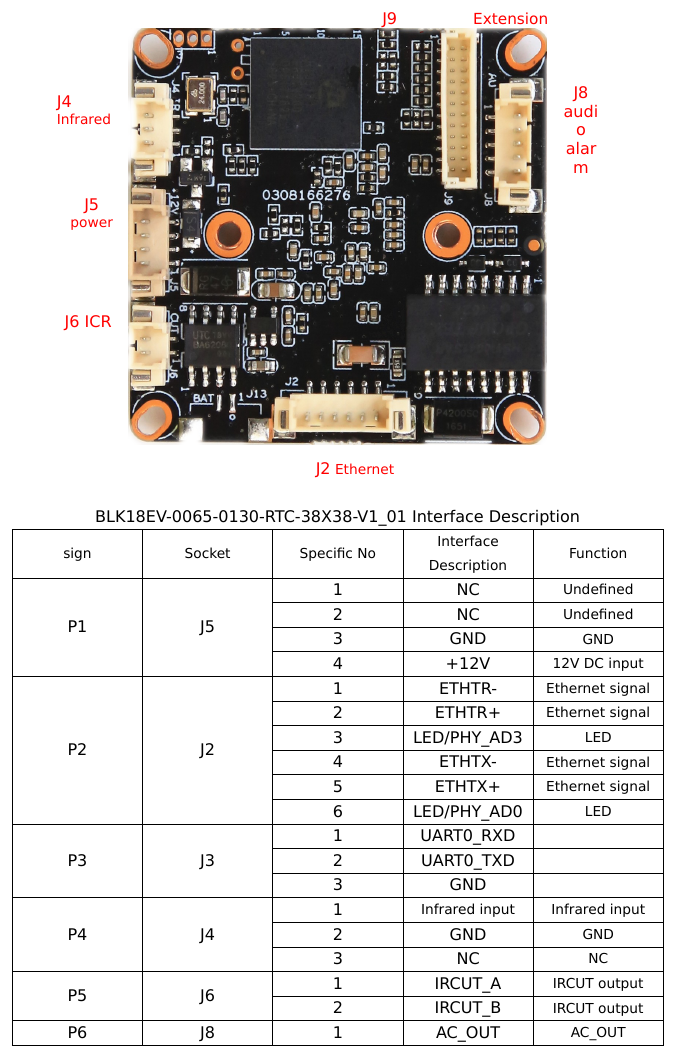

  • front of IPG-53HV13PT-A
  • photo of IPG-53HV13PT-A
