IPG-53XF13PS-WRS

1.3M Low illumination Robot Dedicated IP Module · consumer module

Maker:
Xiongmai
SoC:
XM510F
Sensor:
SC1235
Listed:
2018

Xiongmai

1.3M Low illumination Robot Dedicated IP Module

Features

  • 1.3M resolution,clear and fine images
  • Supports Wireline、Wi-Fi, a key WPS function
  • Support Micro SD card,up to 32G
  • Support 3D DNR, DWDR
  • Support for mobile video surveillance(iOS,android)
  • Support Web, CMS, platform management software MYEYE,Provide SDK
  • Support cloud service, network penetration, alarm information pushed to phone ,etc.
Specifications
ModelIPG-53XF13PS-WRS
System structureEmbedded RTOS, dual-core 32-bit DSP (XM510F),pure hard compression ,watch dog
Sensor1.3M 1/3" SC1235 low illumination CMOS,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compressionH.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image outputMain stream: 1280*960@25fps; sub-stream: 704*576@25fps
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

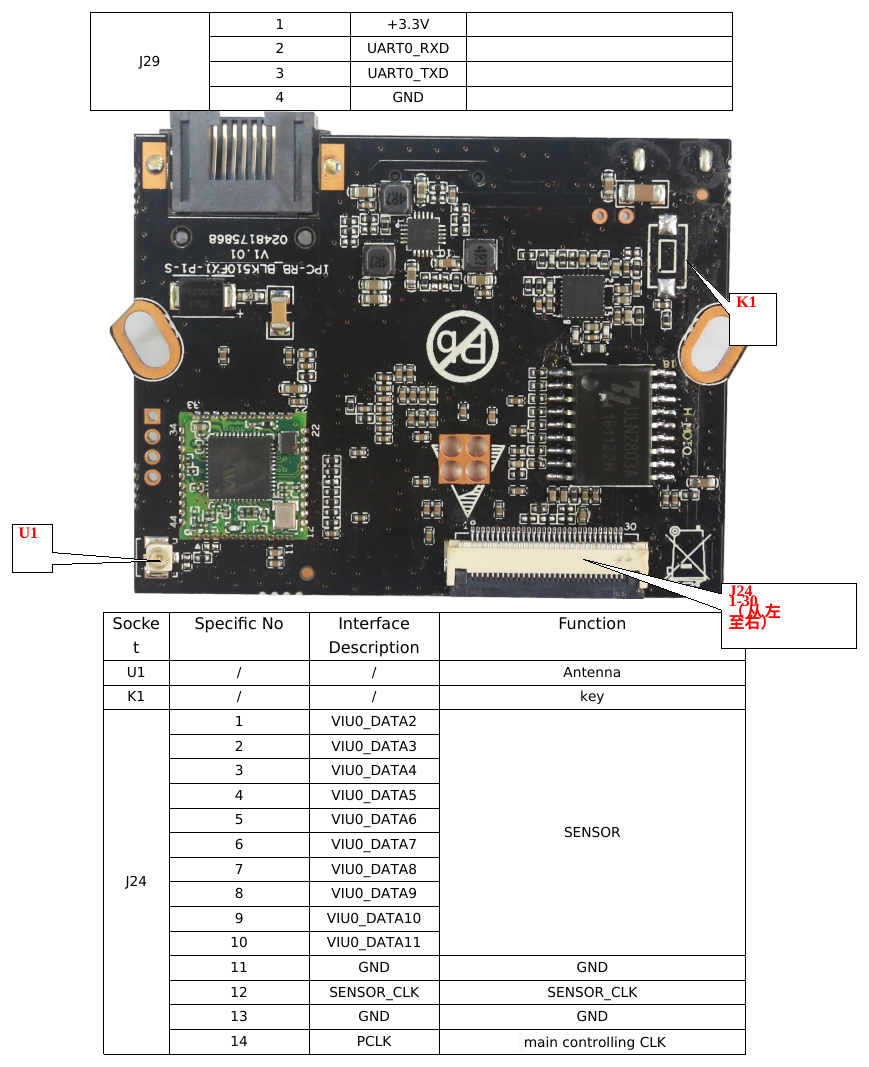

Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfaceN/A

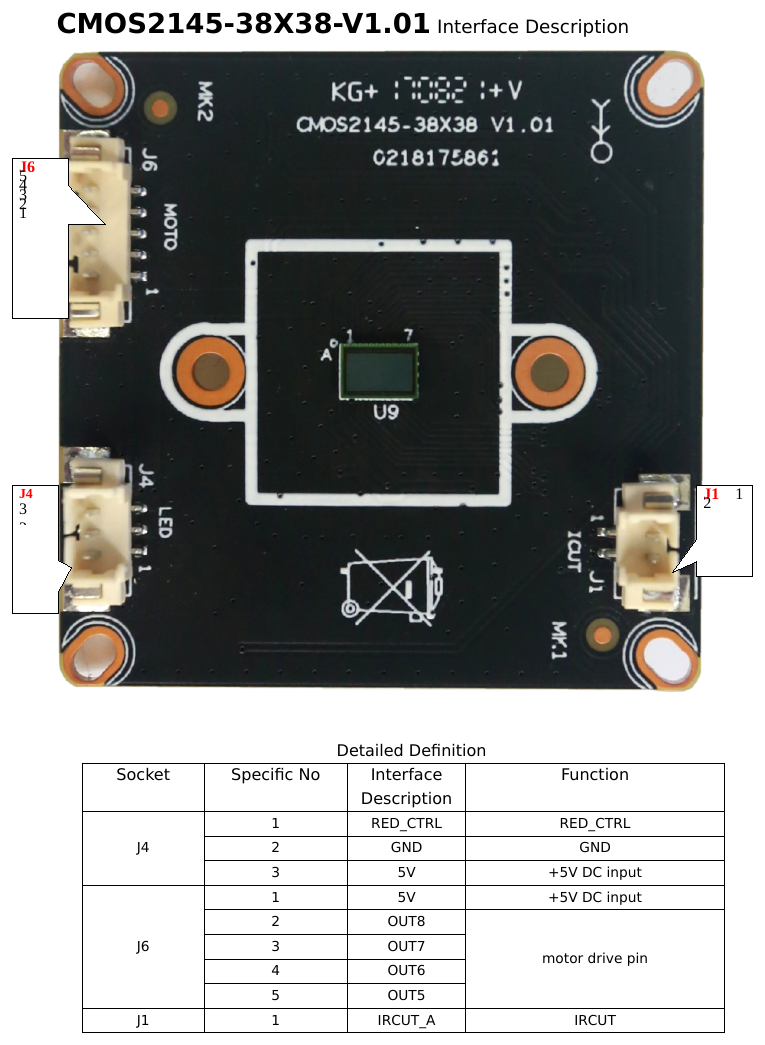

Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceA horizontal motor interface, a vertical electrical interfaces
Alarm I/ON/A
WIFI interfaceSupports Wi-Fi, a key WPS function
Reset interfaceSupport
SD CardSupport
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC5V
Dimension58mm*45mm+38mm*38mm
OtherDoes not accept any custom.

Photos

  • front of IPG-53XF13PS-WRS
