IPG-80H20PT-A
2.0M H.265 IP Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516CV300
- Device IDs:
- 00022520
- Listed:
- 2017
Xiongmai
2.0M H.265 IP Camera Module
Features
- 1080P HD resolution,clear and fine images
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support ONVIF;access third party
- Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IPG-80H20PT-S / IPG-80H20PT-A |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516CV300),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7" F22 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264 ,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080@25fps,1280*720@25fps; sub-stream: 704*576@25fps; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support DWDR; |
| Auto iris | N/A |
| Audio compression | N/A / G.711,support bidrectional talk,audio&video synchronization; |
| Audio interface | N/A / 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Extension interface | 1*USB,support WIFI/3G,support SD；1ch Alarm output；reset key；LED panel |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A / 1/0(support alarm input and video link to background) |
| WIFI interface | N/A |
| Reset interface | N/A |
| SD Card | N/A |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65 ℃ high temperature stable and reliable testing (including mounted machine testing) |
| Intelligence analysis | support |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm |
| Other | Support POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V |
Photos
Files

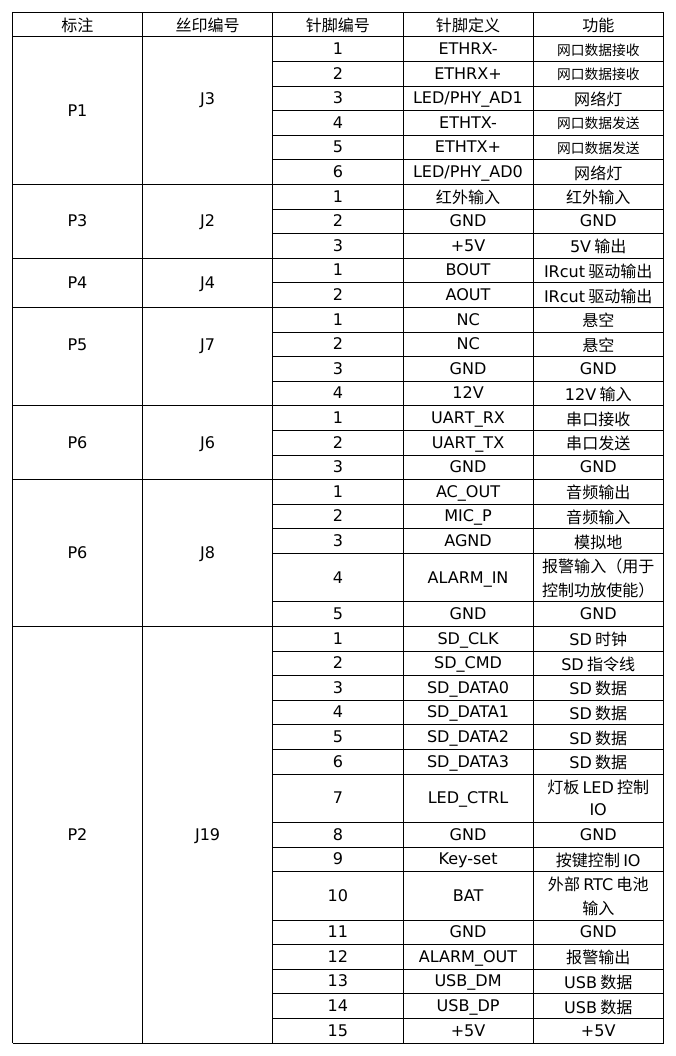

- IPG-80H20PT-A-pinout-1.png (pinout, 123 KB)
- IPG-80H20PT-A-interface-zh.docx (document, 2.9 MB)
- IPG-80H20PT-A-interface-zh.pdf (document, 628 KB)
