IPG-80HV20PSA-S
IP camera module IPG-80HV20PSA-S (Hi3518Ev200 + SC2045) · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3518EV200
- Sensor:
- SC2045
- Device IDs:
- 00018520
cctvsp.ru
IP camera module IPG-80HV20PSA-S (Hi3518Ev200 + SC2045)
The most budget-friendly 2MP IP camera module. Sensor: 1/3.6'' SmartSens Tech. SC2045 CMOS sensor; SoC: HiSilicon Hi3518E V200 Economical HD IP Camera SoC with h264+ support; resolution 1920x1080 at 15 frames per second (18fps with the secondary stream disabled). Mainly used in budget indoor cameras; performs acceptably when shooting daytime video.
The SC2045 is the smallest 2MP sensor, so the lens should be chosen one step shorter in focal length (2.8mm instead of 3.6mm, 3.6mm instead of 6mm, and so on).
| Sensor | 1/3.6'' SmartSens SC2045 CMOS sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3518EV200 HD IP Camera SOC |

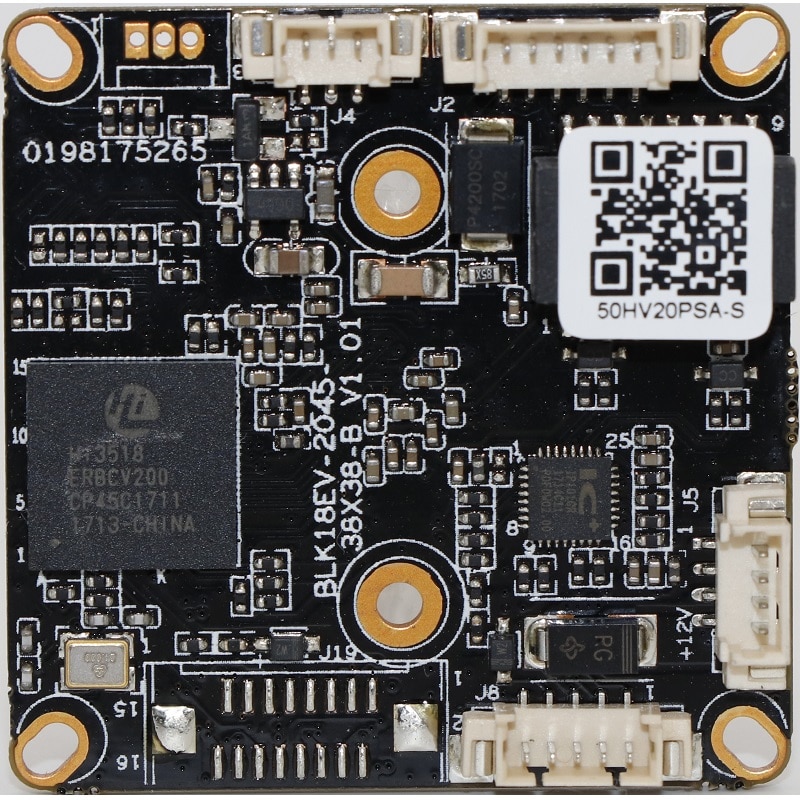

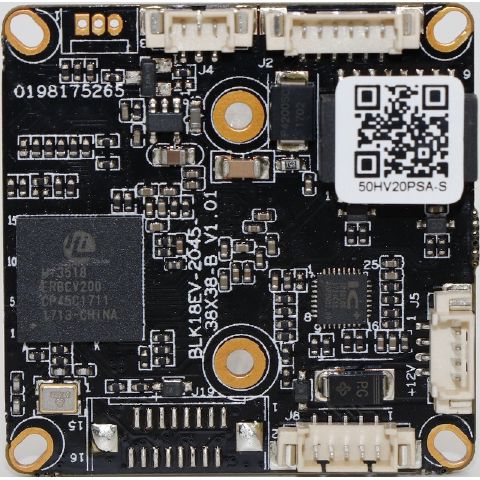

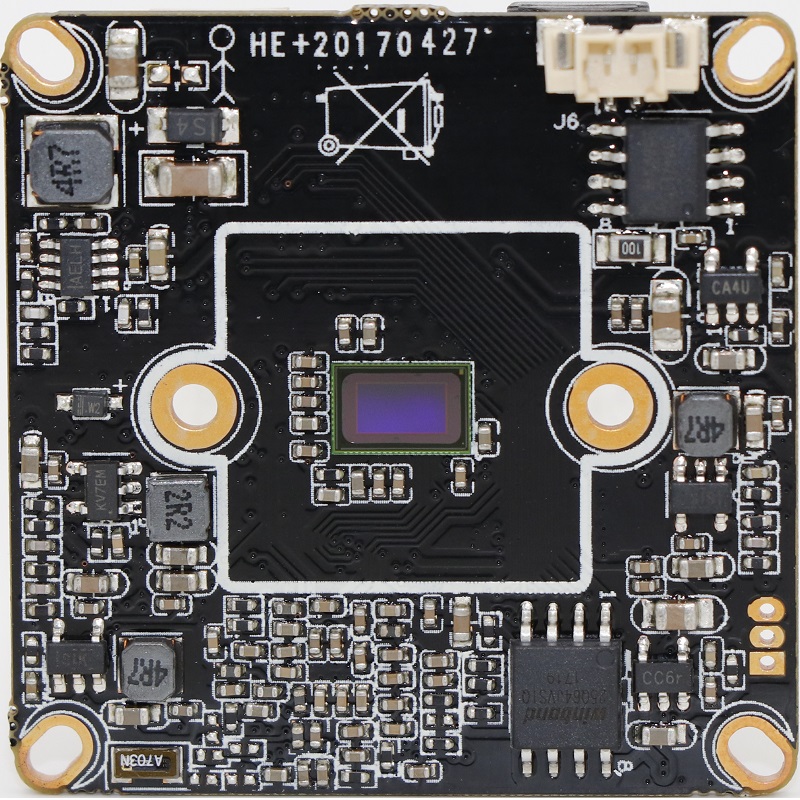

Photos
Files

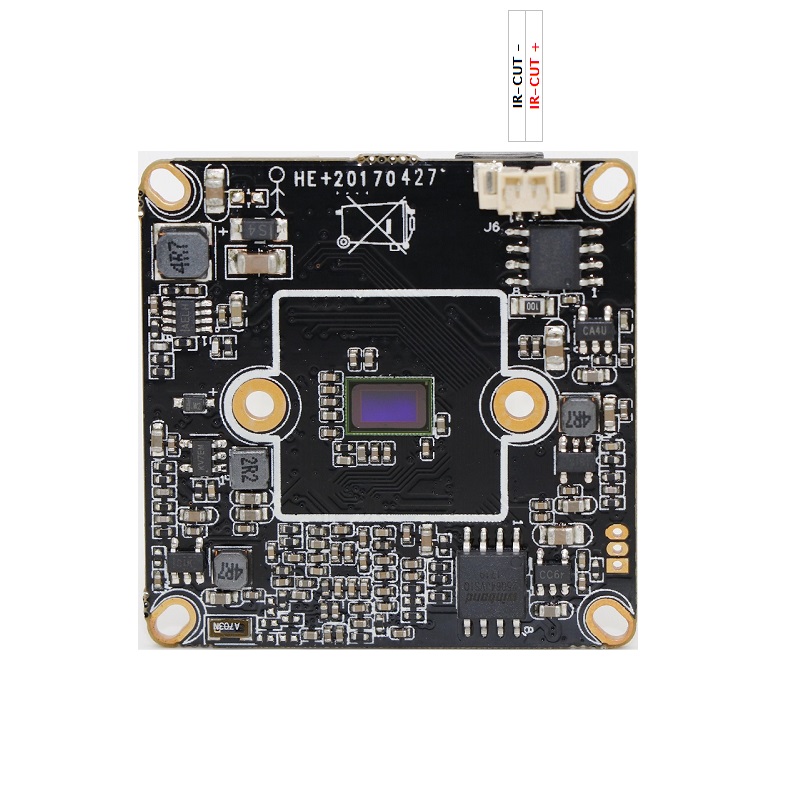

- pinout-3.jpg (pinout, 171 KB)

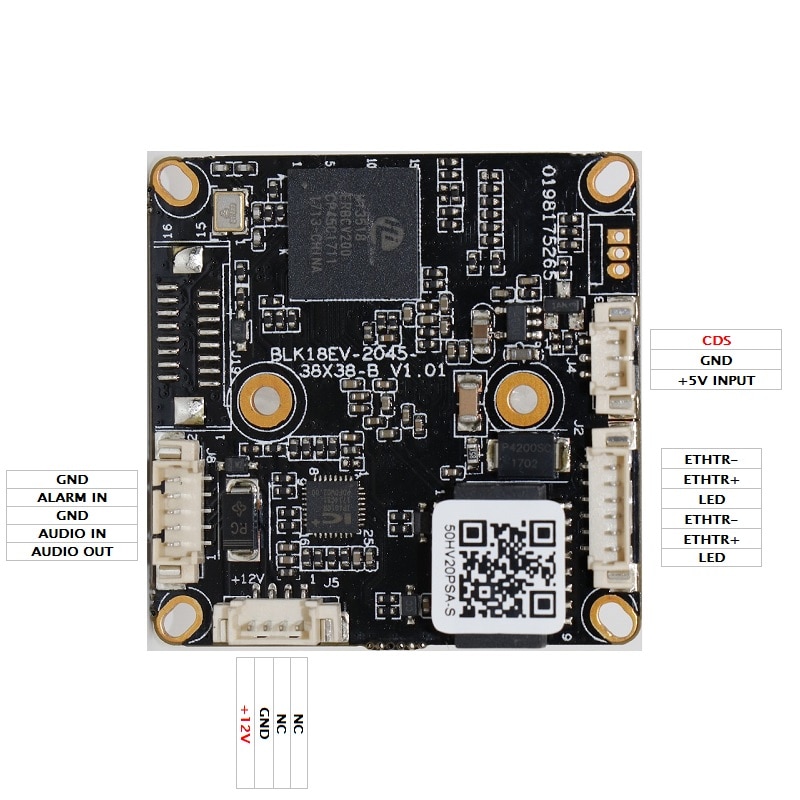

- pinout-4.jpg (pinout, 129 KB)
