IPG-83H20AF

2.0M H.265 Autofocal Module · AF module

Maker:
Xiongmai
Sensor:
AR0237
Listed:
2018

Xiongmai

2.0M H.265 Autofocal Module

Features

  • 2.0M HD resolution,Autofocal,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265+/H.265X video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF ,access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIPG-83H20AF
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516D),pure hard compression ,watch dog
Sensor22.0M 1/2.7" AR0237 low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compressionH.265+/H.265X support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@25fps,1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensStandard 2.8mm-12mm auto-zoom
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfacesupport SD，1*alarm out； RTC battery
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZ1*RS485
Motor interfaceSupport driven AF lens
Alarm I/O2/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension(38mm*38mm)*2
OtherSupport POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V

Photos

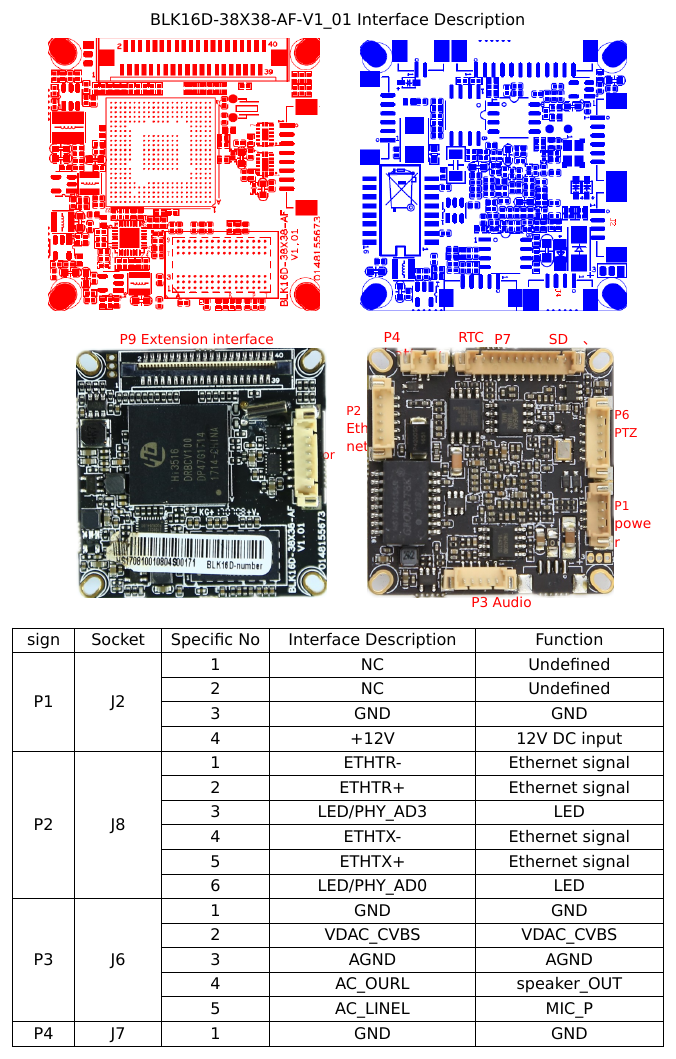

  • front of IPG-83H20AF
