IPG-83H20PL-P
2.0M Low illumination CMOS Network Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516DV100
- Device IDs:
- 00014911
- Listed:
- 2016
Xiongmai
2.0M Low illumination CMOS Network Camera Module
Features
- 1080P HD resolution,clear and fine images
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265++/H.265+/H.265/H.264 video compression
- Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
- Support ONVIF
- Provide web、CMS、center platform management software MYEYE,provide SDK development
| Model | IPG-83H20PL-B / IPG-83H20PL-P |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516D),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7" AR0237 low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264 support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080@25fps, 1280*720@25fps; sub-stream: 704*576@15fps |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | No |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digit |
| Auto iris | No / One auto iris interface,support DC drive |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ;1ch output,impedance:16Ω,30mw |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Extension interface | 1*USB,support WIFI/3G |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | 1*RS485,support kinds of PZT protocols |
| Motor interface | N/A |
| Alarm I/O | 2/0(support alarm input and video link to background) / 2/1(support alarm input and video link to background) |
| WIFI interface | N/A |
| Reset interface | N/A |
| SD Card | N/A / Support32G |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | Support |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm / 38mm*38mm |
| Other | Support POE power supply (optional)，The drive voltage of the light board is at 3.3V |
Photos
Files

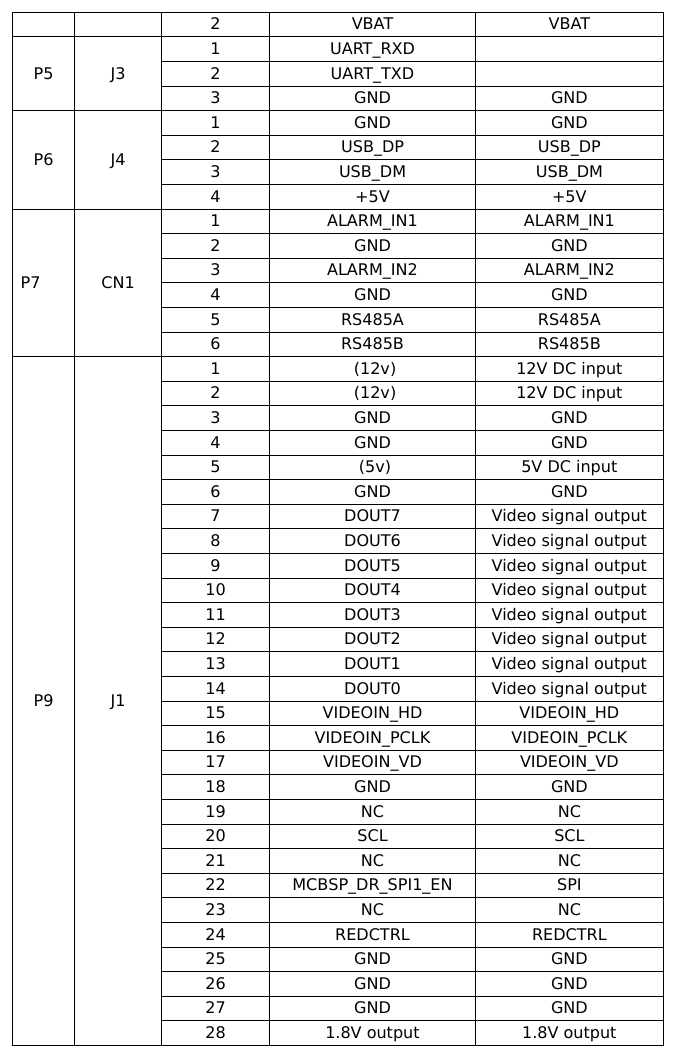

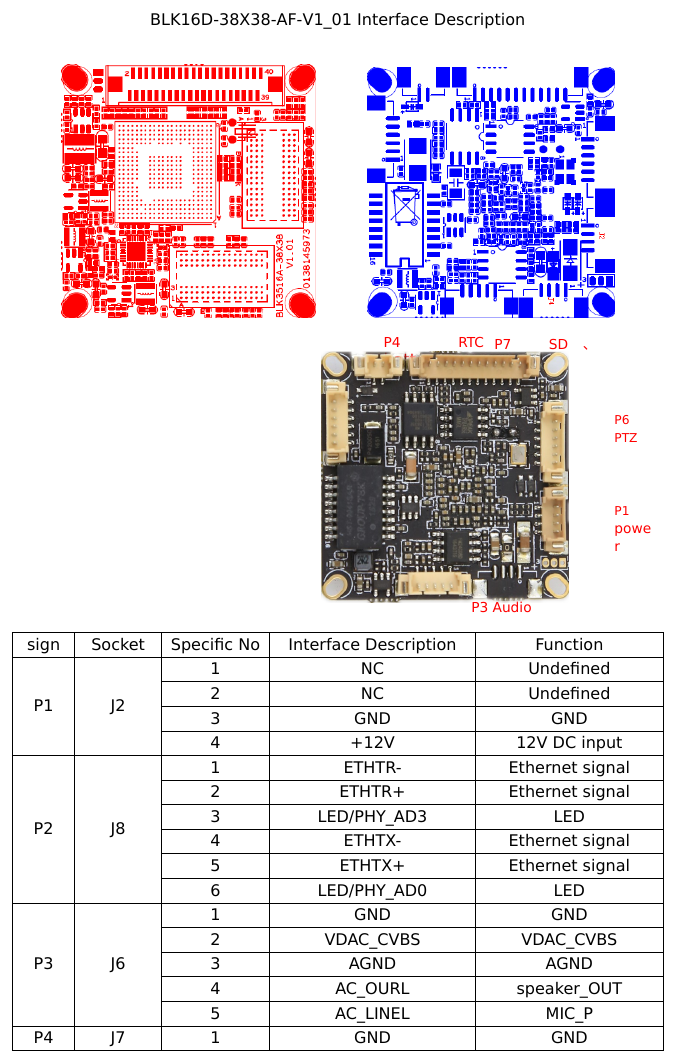

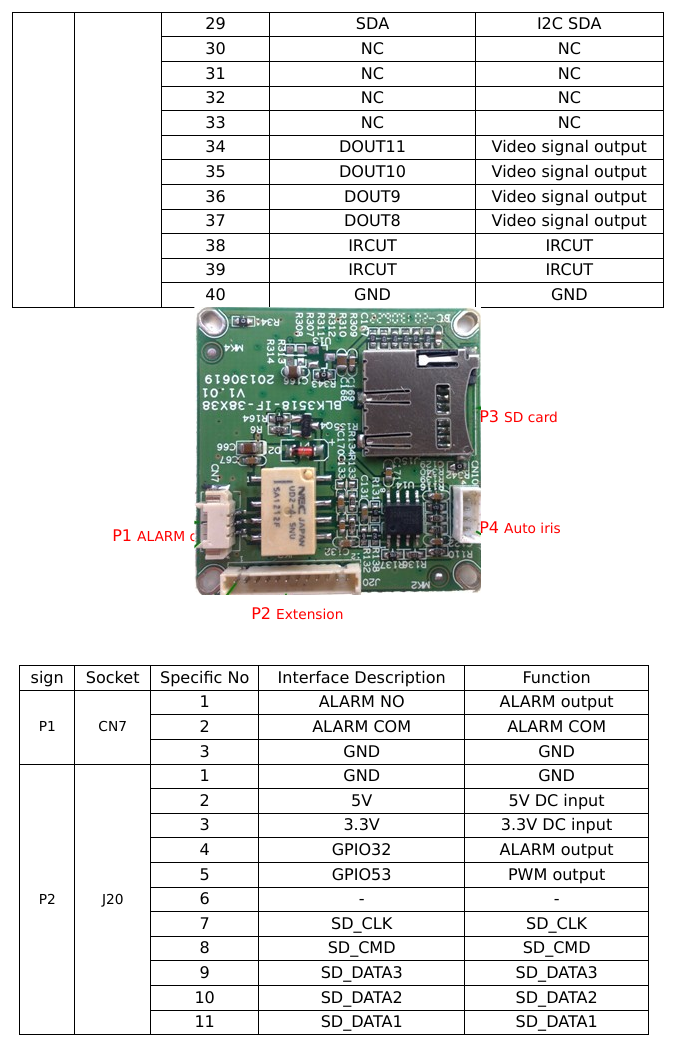

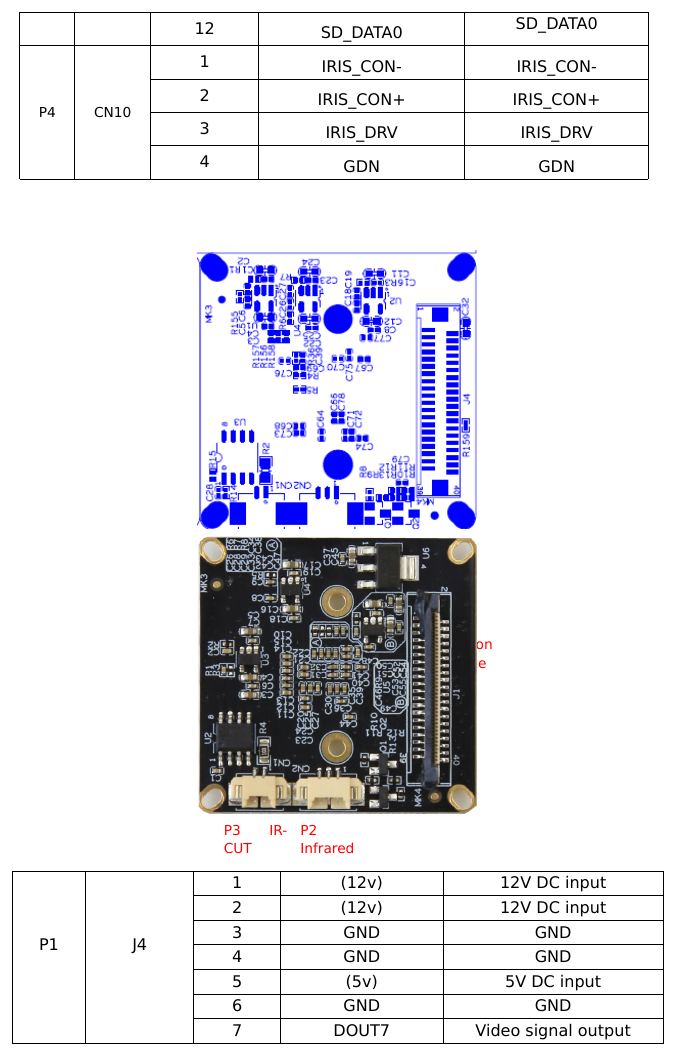

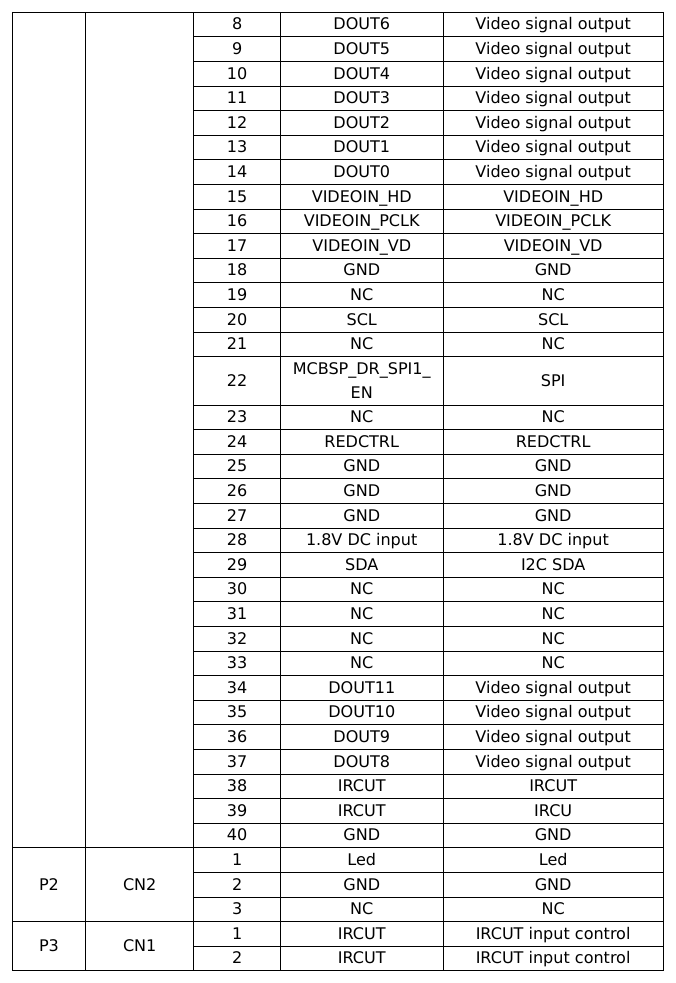

- IPG-83H20PL-P-pinout-1.png (pinout, 251 KB)
