IPG-83H30PA-WF-4F
360°VR Card Machine Network Module · Panoramic VR
- Maker:
- Xiongmai
- SoC:
- XM510
- Device IDs:
- 00022946
- Listed:
- 2017
Xiongmai
360°VR Card Machine Network Module
Features
- 1.3M/3.0M resolution,clear and fine images
- Support 2D/3D noise reduction,digital wide dynamic
- Supports Wi-Fi, a key WPS function, Support Micro SD card,up to 32G
- Advanced H.265/H.264 video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IPG-53X13PT-WF-4F / IPG-83H30PA-WF-4F |
|---|---|
| System structure | Embedded RTOS, dual-core 32-bit DSP (XM510),pure hard compression ,watch dog / Embedded RTOS, dual-core 32-bit DSP (Hi3516CV300),pure hard compression ,watch dog |
| Sensor | 1.3M 1/3" H65 low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 / 3.0M 1/3" AR0330 low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Video compression | H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable / H.265/H.264,support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1280*960@18fps,1280*720@25fps; sub-stream: 640*480@25fps / Main stream: 3MP 2048*1536@15fps，1920*1080@25fps; sub-stream: 640*480@25fps |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | Standard M12 360°VR Lens |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
| Network interface | N/A |
| Extension interface | N/A |
| Singal interface | one IR-CUT interface |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | Supports Wi-Fi, a key WPS function |
| Reset interface | Support |
| SD Card | Support,maximum 32G |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | No |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | No |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC5V |
| Dimension | Φ=60mm |
| Other | Does not accept any custom. |
Photos
Files

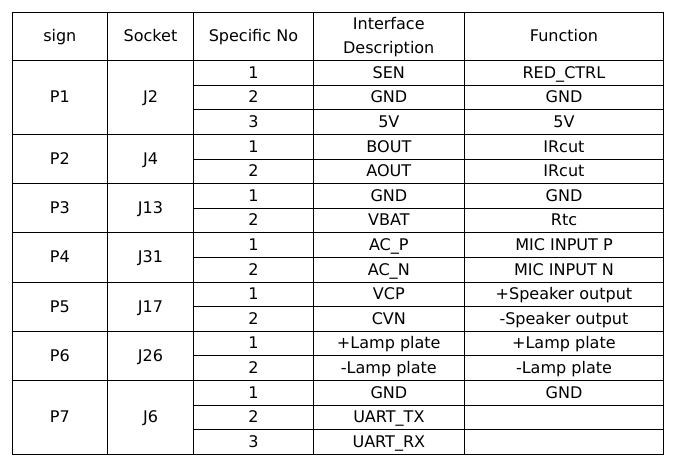

- IPG-83H30PA-WF-4F-pinout-1.png (pinout, 43 KB)
- IPG-83H30PA-WF-4F-interface-en.docx (document, 1.3 MB)
- IPG-83H30PA-WF-4F-interface-en.pdf (document, 305 KB)
- IPG-83H30PA-WF-4F-interface-zh.docx (document, 5.1 MB)
- IPG-83H30PA-WF-4F-interface-zh.pdf (document, 484 KB)
- IPG-83H30PA-WF-4F-interface-zh-2.docx (document, 71 KB)
- IPG-83H30PA-WF-4F-interface-zh-2.pdf (document, 96 KB)
