IPG-H200NS-S-E36
2.0M Hi3518EV200+SC2135 IP All-in-One Module(3.6mm) · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3518EV200
- Sensor:
- F02
- Device IDs:
- 00018520
- Listed:
- 2016
cctvsp.ru
IP camera module IPG-H200NS-S-E36 (Hi3518Ev200 + F02)
2MP IP camera module. Sensor: 1/2.7'' Silicon Optronics JX-F02 CMOS; SoC: HiSilicon Hi3518EV200 HD IP Camera SOC; resolution 1920x1080 at 15 frames per second. Used in budget-series outdoor and indoor two-megapixel cameras; performs well when shooting daytime video. This is a single-board module with standard 38x38mm dimensions, used in cameras with a standard mounting position.
An IR-cut filter and an M12 3.6mm lens are also included.
| Sensor | 1/2.7'' Silicon Optronics JX-F02 CMOS sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3518EV200 HD IP Camera SOC |
| Lens | Fixed M12 3.6 mm |
Xiongmai
2.0M Hi3518EV200+SC2135 IP All-in-One Module(3.6mm)
Features
- 2.0M 1/2.7" SC2135 CMOS sensor
- Support 3D DNR, DWDR
- Support ONVIF;Support Third-party NVR
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
- Support cloud service, network penetration, alarm information pushed to phone ,etc.
| Model | IPG-H200NS-S-E36 / IPG-H200NS-S-F36 |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP( Hi3518EV200 ),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7" SC2135 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080(15fps),1280*720;sub-stream: 704*576; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | Economic 3.6mm M12 Lens / Frequent 3.6mm M12 Lens |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| Auto iris | No |
| SD Card | Unsupport |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65 ℃ high temperature stable and reliable testing (including mounted machine testing) |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W |
| Dimension | 38mm*38mm |
| Explain | Support POE power supply (optional), not support any custom |

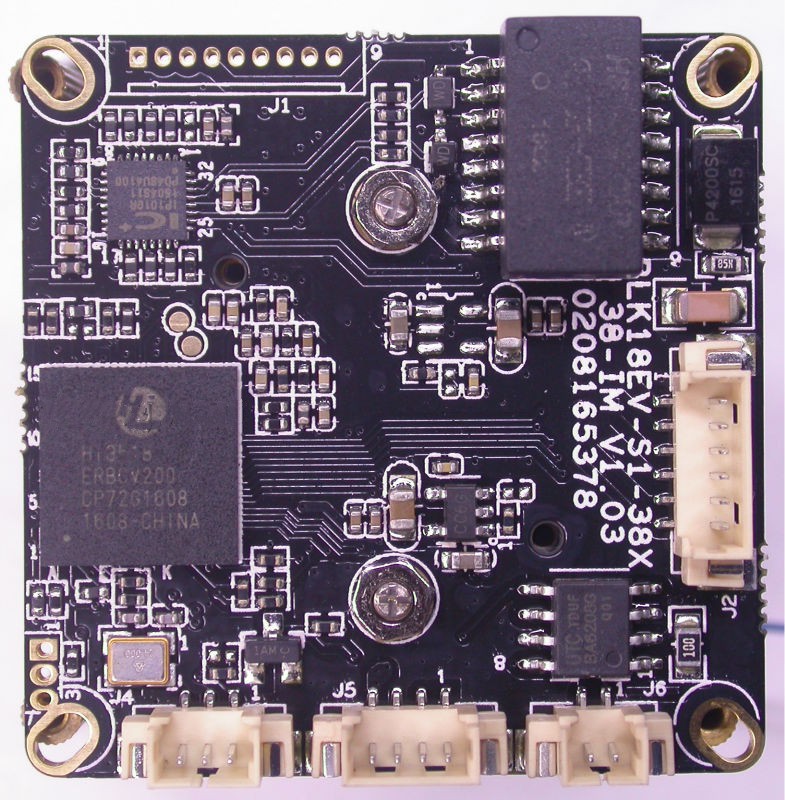

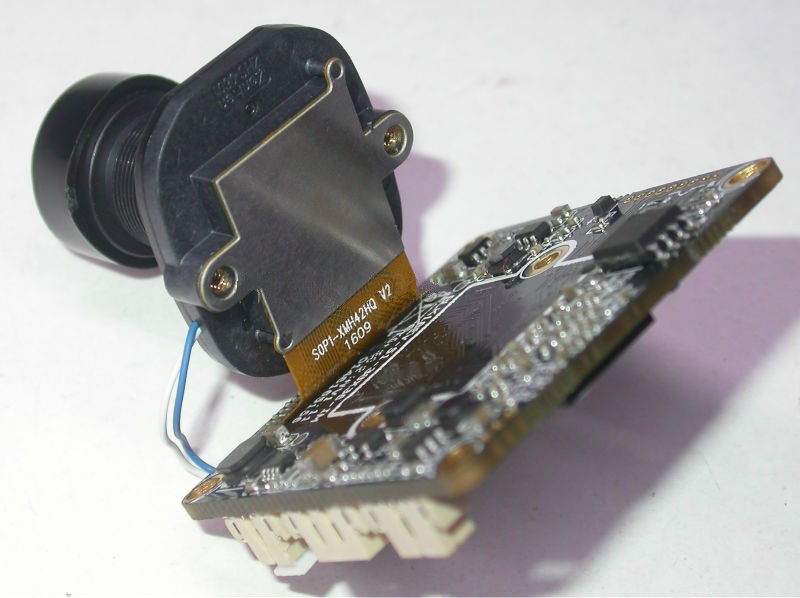

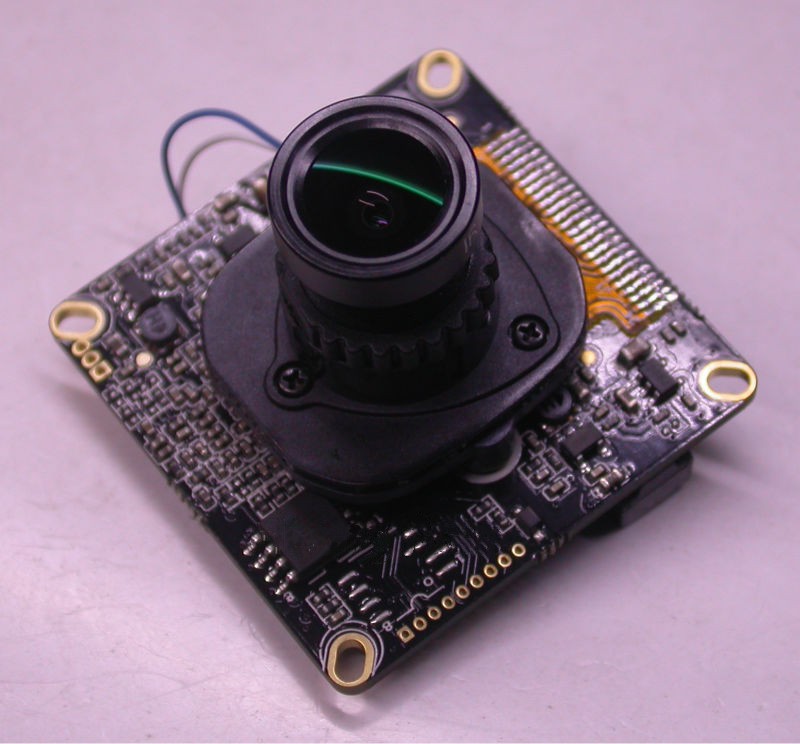

Photos
Files

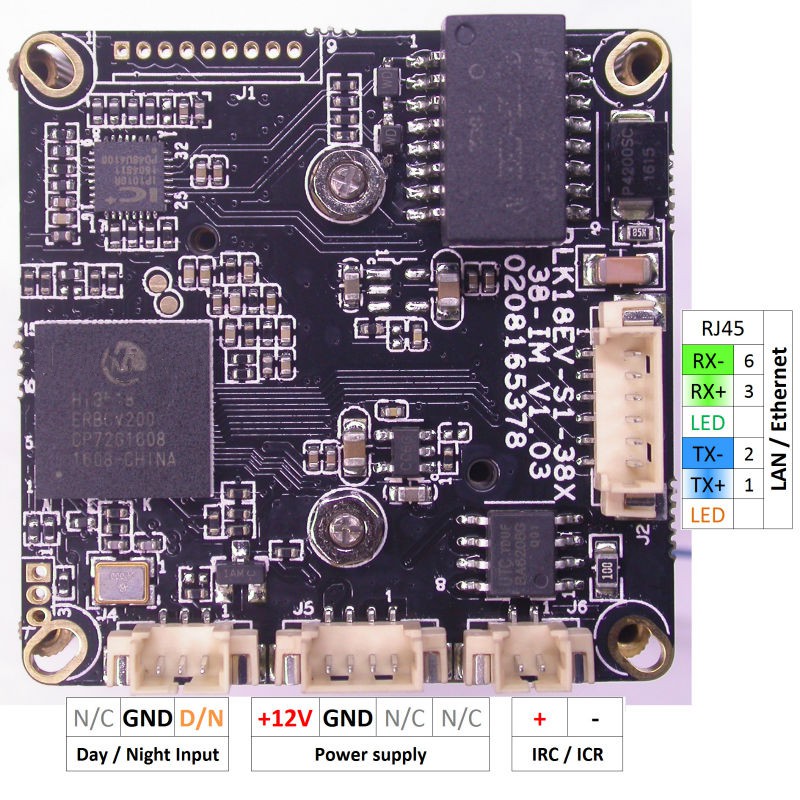

- pinout-4.jpg (pinout, 206 KB)
