IPG-N4-WE2J

4.0M Dual-lens Stitching WiFi Bullet Camera Module · Dual-lens Camera Module

Maker:
Xiongmai
SoC:
NT98566
Device IDs:
000639LE
Listed:
2022

JFTech

4MP Wi-Fi Dual Lens Splicing Bullet Camera Module

IPG-N4-WE2J is an 4MP Wi-Fi Dual-lens splicing bullet camera module developed by our company, with a nearly 180° ultra-wide field of view, mainly used in high-definition video surveillance cameras.

Specifications
ModelIPG-N4-WE2J
System Structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor2 pcs 2MP 1/2.8" high performance CMOS sensor
Min. IlluminationColor：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter1/50(1/60)s to 1/10,000s
Day&NightSupport IR-CUT
Image OutputMain stream: 3664*1080@12fps ; sub-stream:1280*360@12fps
DNRSupport 2D/3D DNR
WDRSupport
Video CompressionH.265AI
Audio CompressionG.711A
Audio Interface1 channel input, support microphone input; 1 channel output, support speaker output playback
Network Interface1* RJ45 Ethernet interface, 10/100M adaptive; 1*WIFI antenna interface to support wireless network connection
Signal Interface1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage
Motor Interface1* horizontal motor interface, 1*vertical motor interface
Storage Interface1*TF card storage interface
Reset Interface1*reset interface
Business FunctionsSupport cell phone remote monitoring; alarm message push; MJPEG capture
ONVIFsupport
Storage ModeLocal TF card, up to 128G; cloud storage
Mobile MonitoringSupport（iOS，Android）
Smart AlarmSupporting human detection support to customizing other intelligent functions
ReliabilityComprehensive lightning protection; 3*24 hours high temperature test stable and reliable
Power SupplyDC12V
Dimension64mm*54mm+36mm*28mm+36mm*28mm

Xiongmai

4.0M Dual-lens Stitching WiFi Bullet Camera Module

Features

  • 4.0M resolution, clear and fine images
  • Support picture-in-picture display
  • Support wired or wireless network connection
  • Support dual light, human detection, intelligent functions (line crossing, area guard, etc.)
  • Support 2D/3D noise reduction, digital WDR
  • Advanced H.265AI/H.265+ video compression, ultra-low bitrate, HD image quality
  • Lightning protection, compliant with GB/T17626.5 and IEC61000-4-5
  • Support ONVIF, connects to third-party NVRs/platforms
  • Support mobile monitoring (iOS, Android)
  • Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
Specifications
SpecificationsIPG-N4-WE2J
System architectureDual-core 32-bit DSP (NT98566), pure hardware compression, watchdog
Sensor2 × 2.0M 1/2.8" SC223A high-performance CMOS sensors
Min. illuminationColor: 0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON), 0 Lux with IR
Video processingH.265AI/H.265+ encoding, dual stream, AVI format; bitrate 0.1M~10Mbps adjustable; frame rate 1~30 fps adjustable
Video outputMain stream: 3840*1080@12fps; sub-stream: 1280*360@12fps
Shutter1/50 (1/60) s to 1/10000 s
LensNone
Day/night modeSupport IR-CUT
Noise reductionSupport 2D/3D noise reduction
WDRSupport WDR
Auto irisNone
Audio processingG.711A codec, supports two-way audio intercom and audio/video synchronization
Audio interface1ch input, level 2Vp-p, impedance 1kΩ; 1ch output, impedance 16Ω, 30mW output power
Network interface1*RJ45 Ethernet port, 1/100M adaptive
Expansion interfaceNone
Signal interface1 IR-CUT driver interface
Alarm I/ONone
Network interface1 WIFI antenna connector, supports wireless network connection
Reset button interfaceSupport long-press reset
Storage modeLocal TF card, up to 128G; cloud storage
ReliabilityFull lightning protection, meets national and international standards; stable and reliable in 7*24h 65℃ high-temperature testing (including complete-unit testing)
Intelligent analysisSupport human detection; other intelligent functions available on request
Service functionsSupport remote monitoring from the mobile app; push notifications on human detection alarm
ONVIFSupported
Mobile monitoringSupport mobile monitoring (iOS, Android)
Power supplyDC 12V
Board dimensions64mm*54mm+36mm*28mm+36mm*28mm

Photos

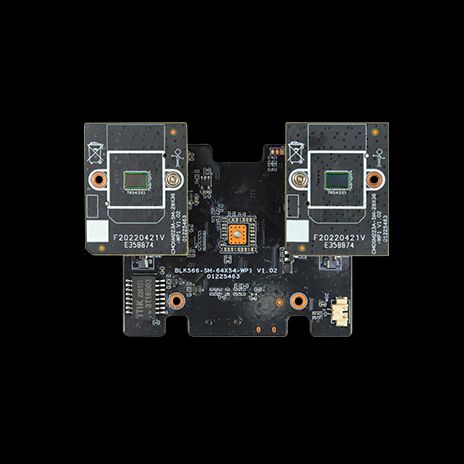

  • front of IPG-N4-WE2J

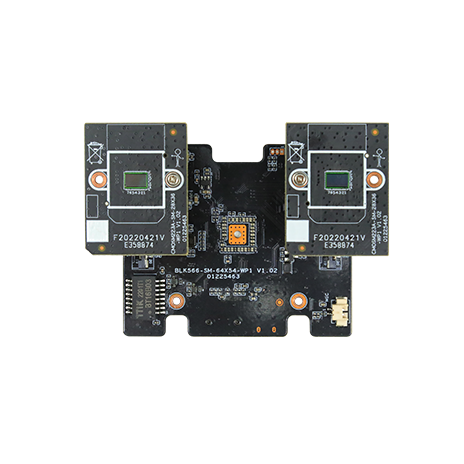

  • front of IPG-N4-WE2J

Files

Links

All camera boards
