IPG-S4-4GQ
4G Camera Module
- Maker:
- Xiongmai
- Listed:
- 2026
JFTech
MP 4G Bullet-PT Camera Module
IPG-S4-4GQ 4MP 4G Bullet-PT Camera Module. 4MP ultra-low-light full-color, enhanced night vision, H.265 AI encoding. Supports human/vehicle detection and tracking. Ideal for HD surveillance.
| System structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
|---|---|
| Sensor | 1/2.9" High-performance CMOS sensor |
| Min. Illumination | Color：0.001Lux @(F1.0, AGC ON), 0 Lux with light |
| Video compression | H.265 |
| Image output | Main stream:2560*1440@12fps;sub-stream: 800*448@12fps; |
| Shutter | 1/50(1/60) s to 1/10,000s |
| Day and night | Full color at night |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Audio compression | G.711, support bidirectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended.; 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | Support 4G CAT1 network |
| Singal interface | 1*photoresistor interface |
| Motor interface | 1* horizontal motor interface, 1*vertical motor interface |
| Reset interface | 1*reset interface |
| SD Card | Local TF card, up to 512G; cloud storage |
| Value-added Services | It supports value-added services such as cloud storage and scene AI (outdoor security), which need to be activated at your own expense on the APP side |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Supports humanoid detection, vehicle shape detection, humanoid centering, and customization of other intelligent functions |
| Reliability | It supports value-added services such as cloud storage and scene AI (outdoor security), which need to be activated at your own expense on the APP side |
| Power | DC12V |
| Dimension | 52mm*67mm |
Photos
Files

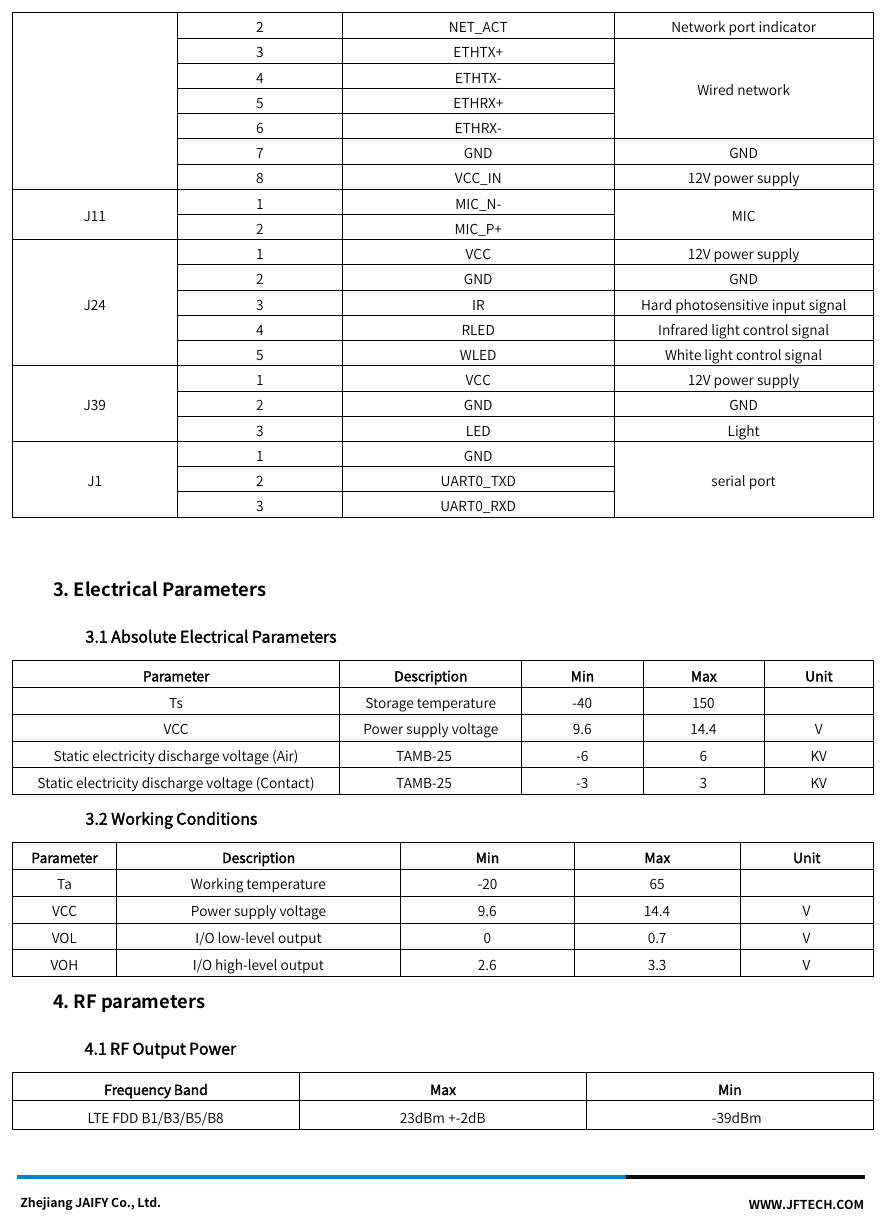

- IPG-S4-4GQ-pinout-2.png (pinout, 110 KB)

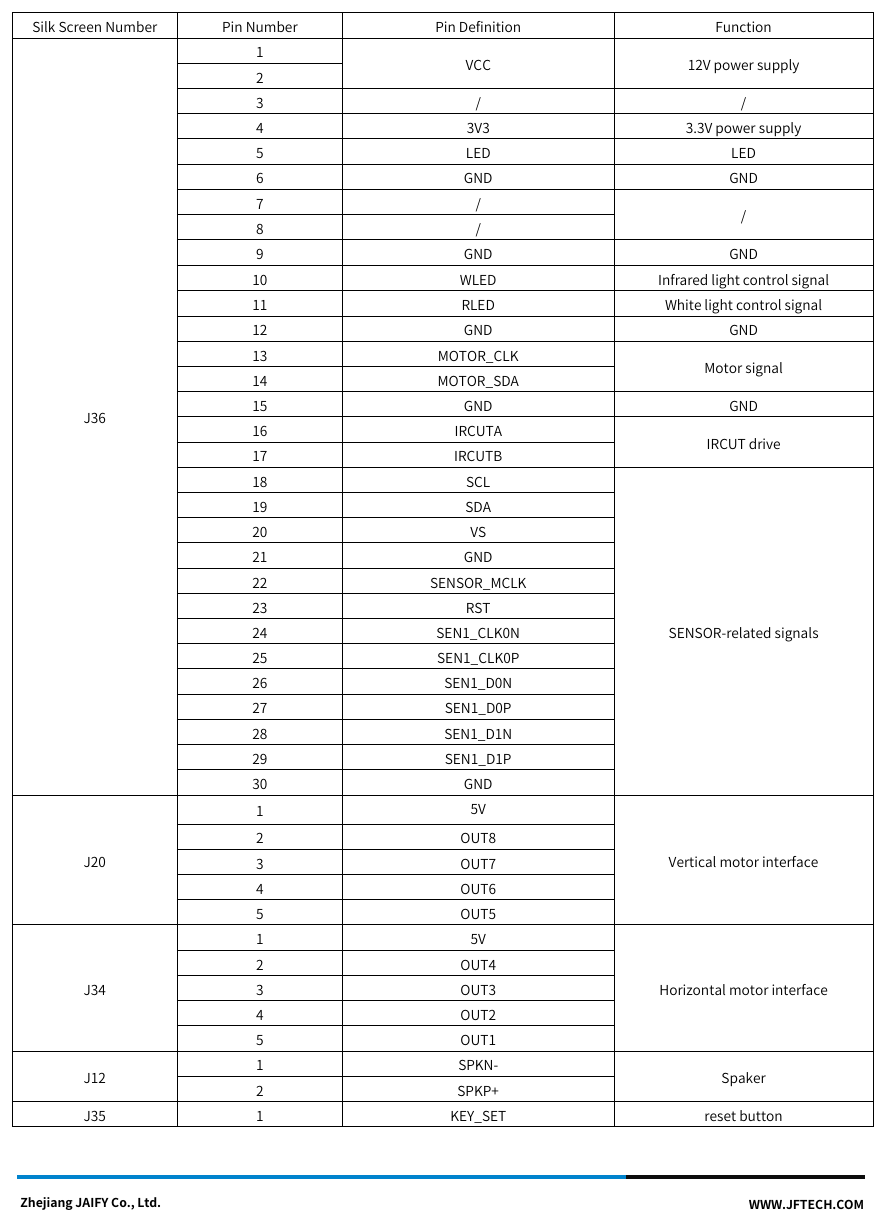

- IPG-S4-4GQ-pinout-1.png (pinout, 81 KB)
- Parameters-for-IPG-S4-4GQ.pdf (document, 1.1 MB)
