IPG-S4C-4GQ

4G Camera Module

Maker:
Xiongmai
Listed:
2026

JFTech

4MP 4G Bullet-PT Camera Module

IPG-S4C-4GQ 4MP 4G Bullet-PT Camera Module. 4MP Dual Light vision, enhanced night vision, H.265 AI encoding. Supports human/vehicle detection and tracking. Ideal for HD surveillance.

Specifications
System structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor1/3.2" High-performance CMOS sensor
Min. IlluminationColor：0.1Lux @(F1.6, AGC ON), 0 Lux with light Black/White: 0.01Lux @ (F1.6, AGC ON), 0 Lux with IR
Video compressionH.265
Image outputMain stream:2560*1440@12fps;sub-stream: 800*448@12fps;
Shutter1/50(1/60) s to 1/10,000s
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Audio compressionG.711, support bidirectional talk,audio&video synchronization
Audio interface1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended.; 1 Output, Speaker: 8Ω2W is recommended.
Network interfaceSupport 4G CAT1 network
Singal interface1*photoresistor interface, 1*IR-CUT interface(5V), support photoresistor input signal and IR-CUT, IR lamp linkage
Motor interface1* horizontal motor interface, 1*vertical motor interface
Reset interface1*reset interface
SD CardLocal TF card, up to 512G; cloud storage
Value-added ServicesIt supports value-added services such as cloud storage and scene AI (outdoor security), which need to be activated at your own expense on the APP side
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
Intelligence analysisSupports humanoid detection, vehicle shape detection, humanoid centering, and customization of other intelligent functions
ReliabilityIt supports value-added services such as cloud storage and scene AI (outdoor security), which need to be activated at your own expense on the APP side
PowerDC12V
Dimension52mm*67mm

Photos

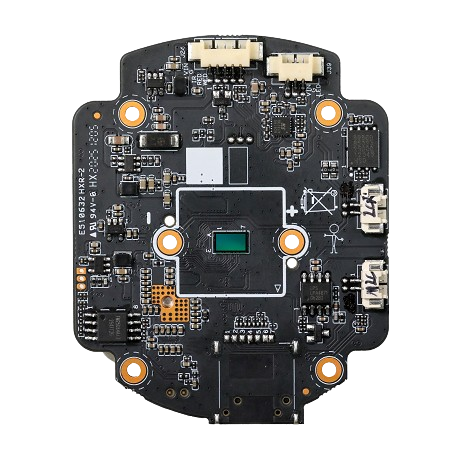

  • front of IPG-S4C-4GQ
