IPG-X3-WR-V-BL
Wi-Fi Camera Module
- Maker:
- Xiongmai
- SoC:
- XM530V200
- Device IDs:
- 000807E5
- Listed:
- 2025
JFTech
3MP Wi-Fi PT Camera Module(Support screen)
IPG-X3-WR-V-BL is a 3MP Wi-Fi PT camera module developed by our company, which supports docking with video screens and Bluetooth fast network configuration, and is mainly used in high-definition video surveillance cameras.
| Model | IPG-X3-WR-V-BL |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| Sensor | 1/3" Low illumination CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Day&Night | Support IR-CUT |
| Image Output | Main stream: 2304*1296@12fps；Sub-code stream:800*448@12fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | 1*Wi-Fi antenna interface to support wireless network connection |
| Screen interface | support 2.8/2.4 inch SPI interface RGB screen, resolution is 240*320, vertical screen, other sizes need to be customized |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Motor Interface | 1* horizontal motor interface, 1*vertical motor interface |
| Storage Interface | 1*TF card storage interface |
| Reset Interface | 1*reset interface |
| Business Functions | Support two-way video intercom; emote monitoring of mobile client, push message, and supports MJPEG capture; |
| Storage Mode | Local TF card, up to 256G; cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Smart Alarm | Supporting human detection support to customizing other intelligent functions |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | DC5V |
| Dimension | 38mm*53mm |

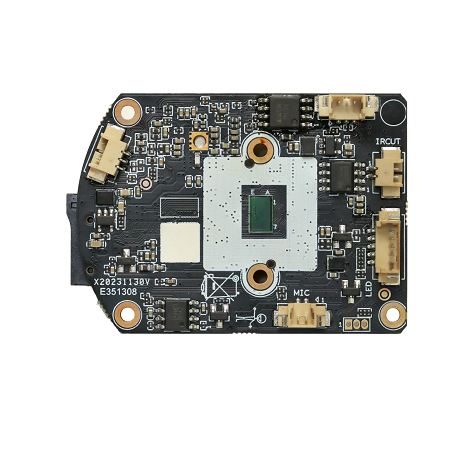

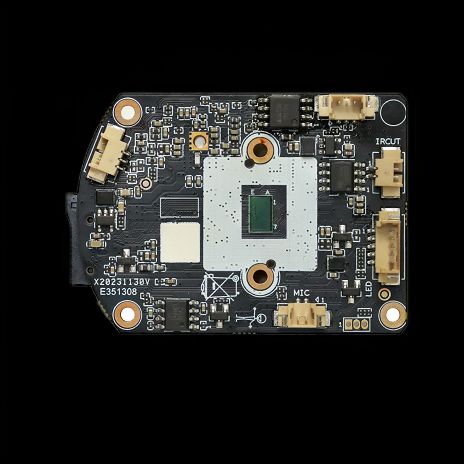

Photos
Files

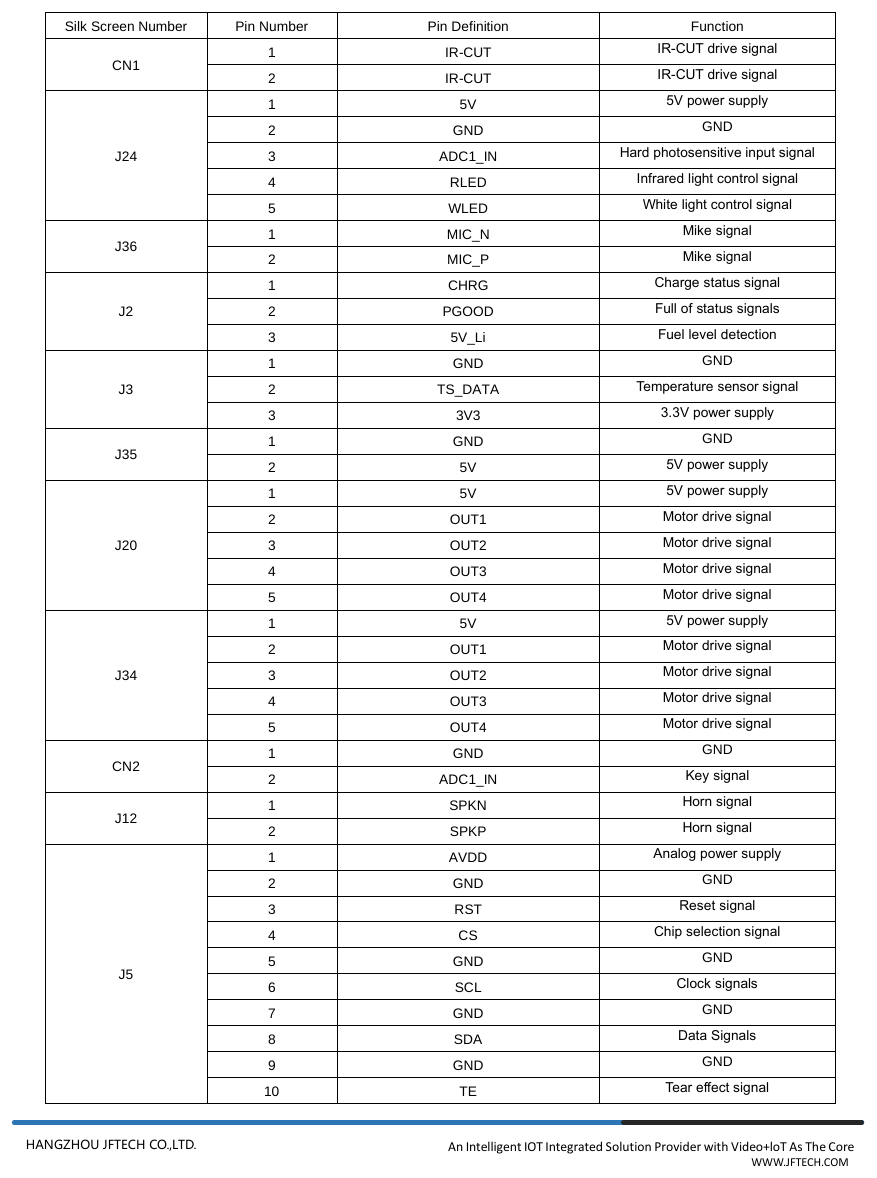

- IPG-X3-WR-V-BL-pinout-1.png (pinout, 126 KB)
- Parameters-for-IPG-X3-WR-V-BL.pdf (document, 960 KB)
