IPG-X6M-WEQ2

Multi Lens Camera Module

Maker:
Xiongmai
SoC:
XM530V200
Device IDs:
000807CA
Listed:
2025

JFTech

6MP Wi-Fi Triple-lens Bullet&PTZ Camera Module

IPG-X6M-WEQ2 is an 6MP Triple-lens Wi-Fi Bullet&PTZ Camera Module developed by our company, which can monitor two different areas at the same time, supports 8x hybrid zoom, and is mainly applied to HD video surveillance cameras.

Specifications
ModelIPG-X6M-WEQ2
System Structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor3* 1/2.9" Low illumination CMOS Sensor
Min. IlluminationColor：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter1/50(1/60)s to 1/10,000s
Day&NightSupport IR-CUT
Image OutputMain stream: 2304*2592@12fps; Sub-code stream:640*720@12fps
DNRSupport 2D/3D DNR
WDRSupport
Video CompressionH.265AI
Audio CompressionG.711A
Audio Interface1 channel input, support microphone input; 1 channel output, support speaker output playback
Network Interface1* RJ45 Ethernet interface, 10/100M adaptive; 1*WIFI antenna interface to support wireless network connection
Signal Interface1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage
Motor Interface1* horizontal motor interface, 1*vertical motor interface
Storage Interface1*TF card storage interface
Reset Interface1*reset interface
Value-added servicesCloud storage, scene AI (outdoor security), etc., need to be activated at the APP at your own expense
Storage ModeLocal TF card, up to 512G; cloud storage
Mobile MonitoringSupport（iOS，Android）
Smart AlarmSupporting human detection support to customizing other intelligent functions
ReliabilityComprehensive lightning protection; 3*24 hours high temperature test stable and reliable
Power SupplyDC12V
Dimension52mm*66mm+38mm*38mm

Photos

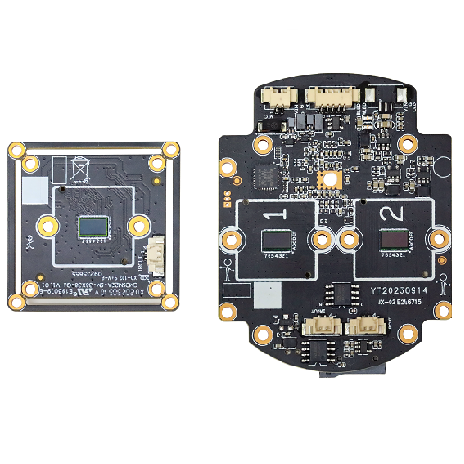

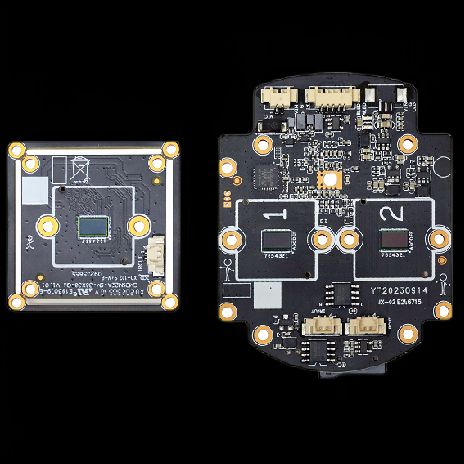

  • front of IPG-X6M-WEQ2
