IVG-83X50PS-B
5.0M Low illumination H.265 IP Camera · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- XM550
- Device IDs:
- 0003068D
- Listed:
- 2019
Xiongmai
5.0M Low illumination H.265 IP Camera
Features
- Supporting Humanoid detection，supports intelligent functions such as customized face detection, number statistics, etc.
- 5.0MP HD Low illumination resolution,clear and fine images
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support ONVIF;access third party，Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IVG-83X50PS-B |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(XM550AI),pure hard compression ,watch dog |
| Sensor | 5.0M 1/2.5" SC335E Low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Video compression | H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI; 0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream: 5MP 2592*1944@15fps;4MP 2560*1440@20fps; 2MP 1920*1080@20fps; sub-stream: 704*576@25fps; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | No |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,audio&video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input； 0ch output(expandable to 1ch) |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc |
| Extension interface | N/A |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | N/A |
| Reset interface | N/A |
| SD Card | N/A |
| Reliability | Comprehensive lightning protection, 7 * 24 hours-10℃～65℃ high temperature stable and reliable testing |
| Intelligence analysis | Supporting human detection and tripping line detection, and supports intelligent functions such as customized face detection, number statistics, etc. |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm+38mm*40mm |
| Other | Support POE power supply (optional)，The drive voltage of the light board is at 3.3V |
Photos
Files

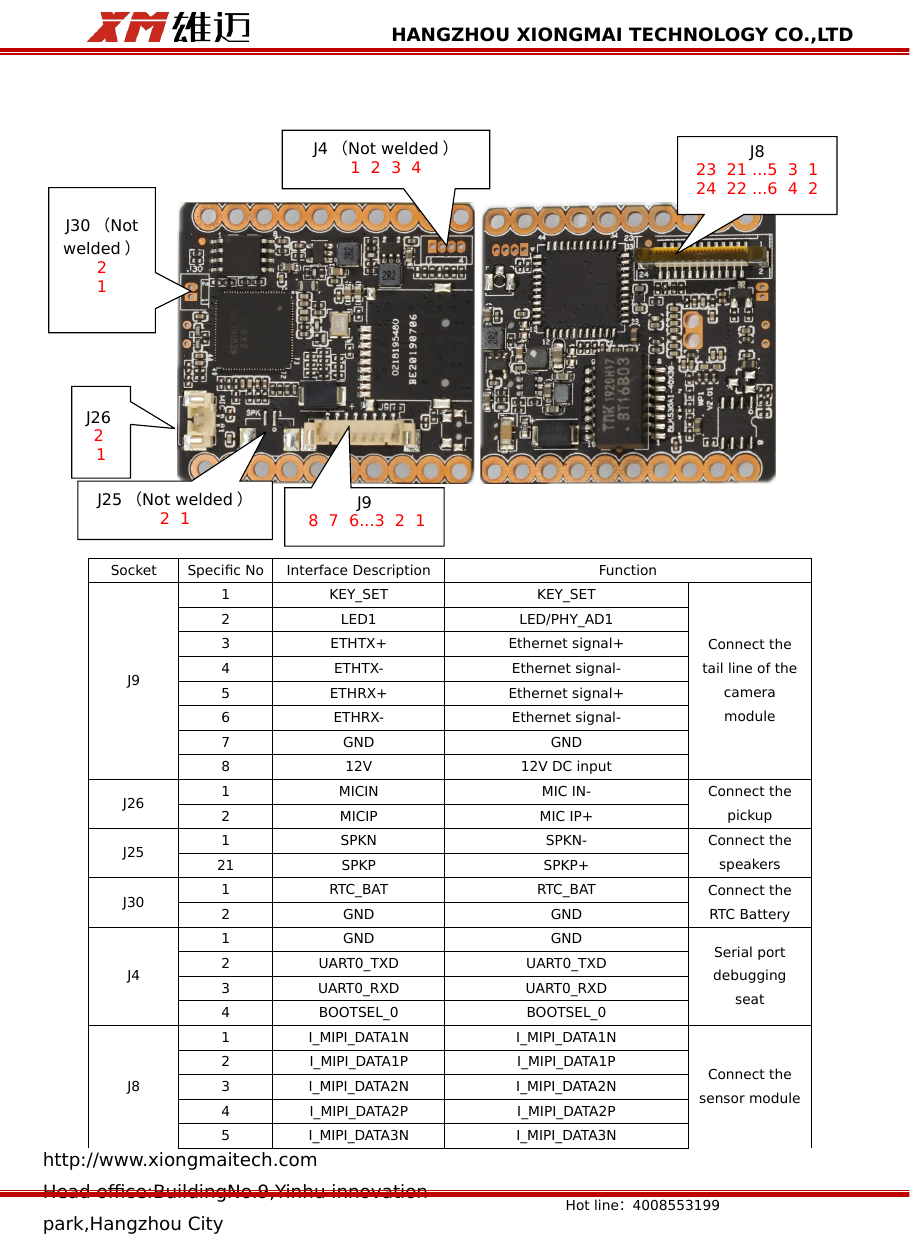

- IVG-83X50PS-B-pinout-1.png (pinout, 442 KB)

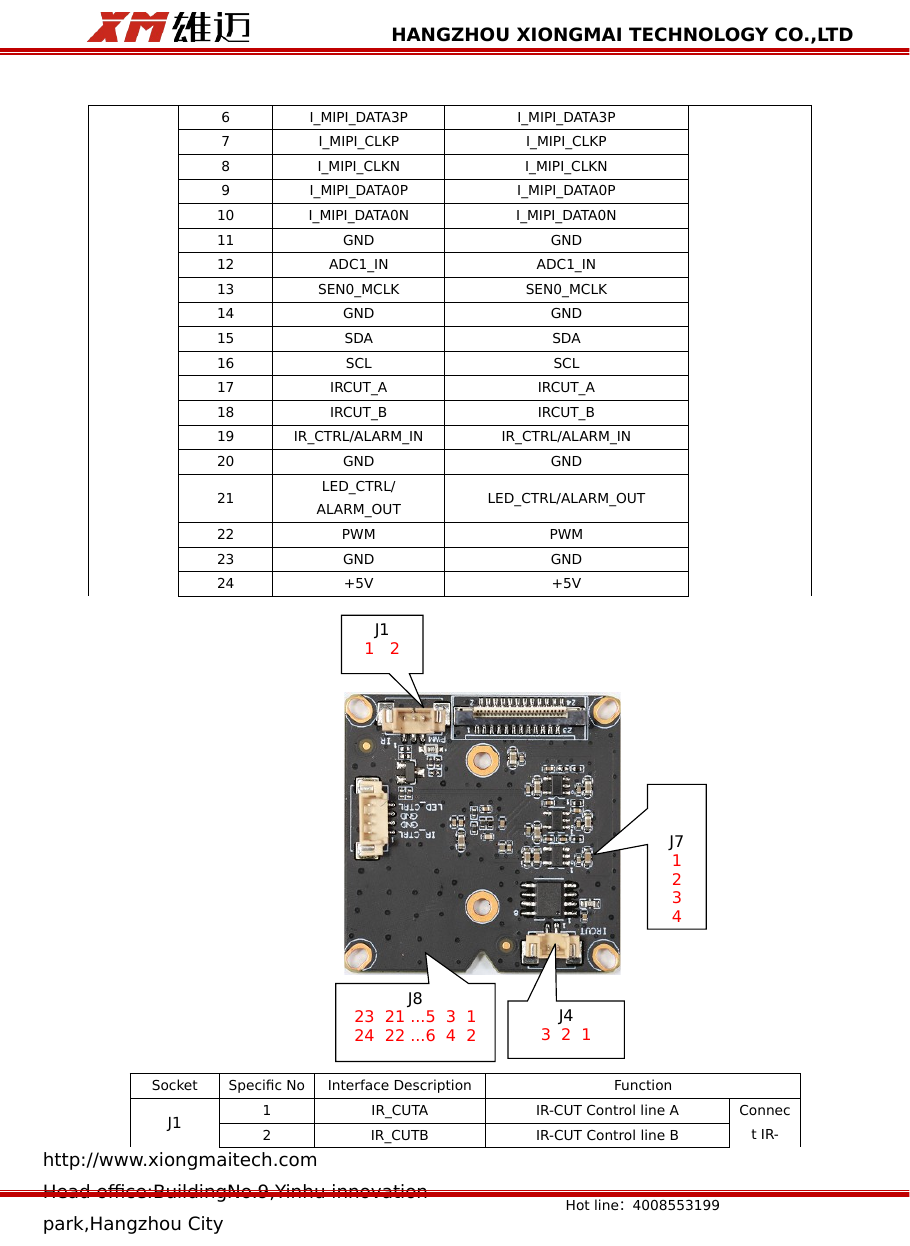

- IVG-83X50PS-B-pinout-2.png (pinout, 243 KB)

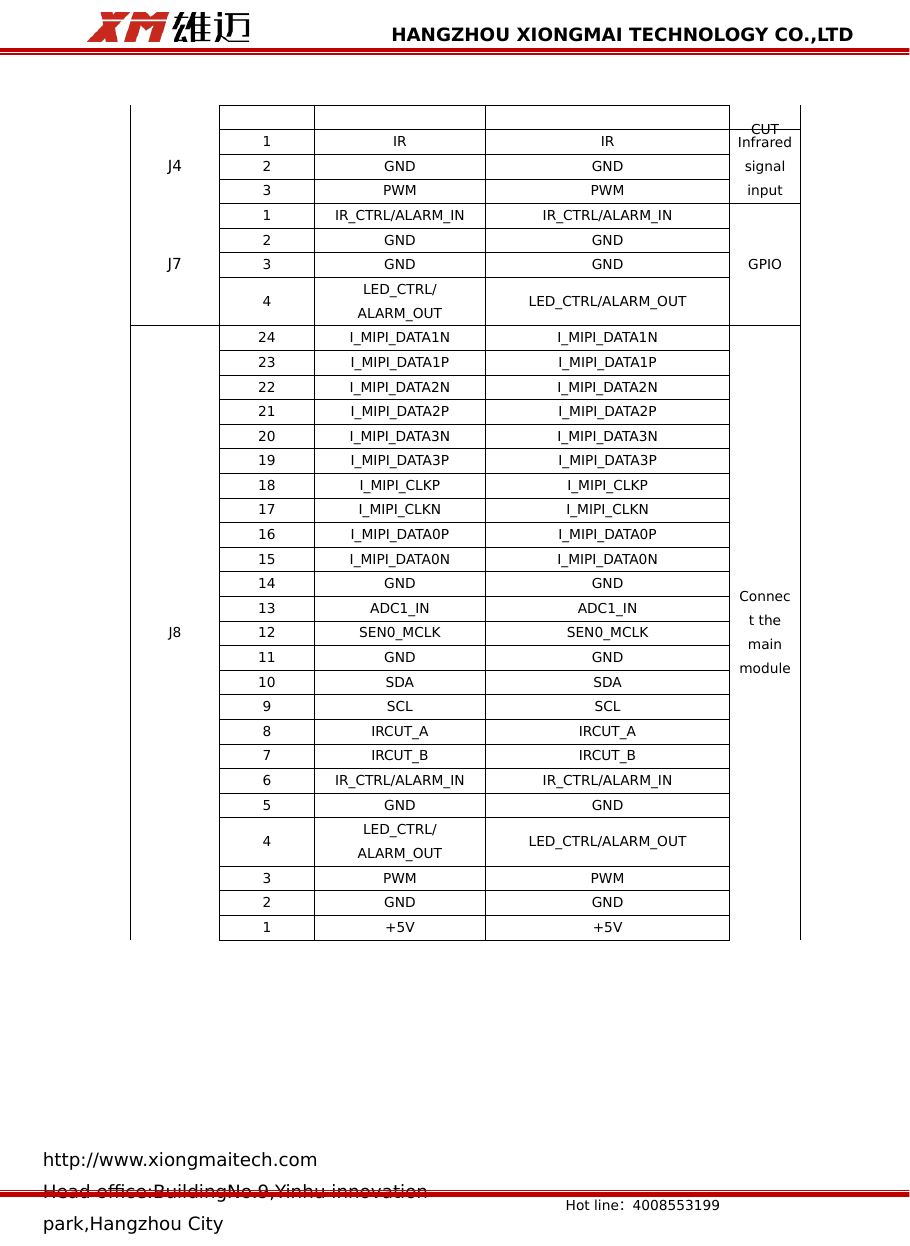

- IVG-83X50PS-B-pinout-3.png (pinout, 105 KB)
- IVG-83X50PS-B-interface-en.doc (document, 1.5 MB)
- IVG-83X50PS-B-interface-en.pdf (document, 411 KB)
- IVG-83X50PS-B-interface-zh.doc (document, 1.5 MB)
- IVG-83X50PS-B-interface-zh.pdf (document, 467 KB)
- IVG-83X50PS-B-parameters.pdf (document, 407 KB)
