IVG-85HF30PSB-ST
3.0M Black-light H.265 Smart IP Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516EV200
- Device IDs:
- 000559CD
- Listed:
- 2020
Xiongmai
3.0M Black-light H.265 Smart IP Camera Module
Features
- Support human detection and face detection; other intelligent functions available on request
- 3.0MP HD resolution, black-light low-light performance, clear and fine images
- Support 2D/3D noise reduction, digital WDR
- Advanced H.265AI/H.265+ (compatible with H.265/H.264) video compression, ultra-low bitrate, HD image quality
- Lightning protection, compliant with GB/T17626.5 and IEC61000-4-5
- Support ONVIF, connects to third-party NVRs/platforms
- Support mobile monitoring (iOS, Android)
- Support web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
| Specifications | IVG-85HF30PSB-ST |
|---|---|
| System architecture | Embedded RTOS, dual-core 32-bit DSP (Hi3516EV200), pure hardware compression, watchdog |
| Sensor | 3.0M 1/2.8" SC337H black-light CMOS sensor; color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video processing | H.265AI/H.265+ (compatible with H.265/H.264) encoding, dual stream, AVI format; bitrate 0.1M~8Mbps adjustable; frame rate 1~30 fps adjustable |
| Video output | Main stream: 2304*1296@20fps, 1920*1080@25fps; sub-stream: 800*448@25fps (default), 704*576@25fps, 640*360@25fps |
| Shutter | 1/50 (1/60) s to 1/10000 s |
| Lens | None |
| Day/night mode | Support IR-CUT; IR-CUT coil resistance 20Ω, drive current under 200mA, voltage 3.5V-6V |
| Noise reduction | Support 2D/3D noise reduction |
| WDR | Support digital WDR |
| Auto iris | None |
| Audio processing | G.711A codec, supports two-way audio intercom and audio/video synchronization |
| Audio interface | 1ch input, level 2Vp-p, impedance 1kΩ, supports pickup input; 1ch output, impedance 16Ω, 30mW output power, supports headphones or amplifier |
| Network interface | 1*RJ45 Ethernet port, 10/100M adaptive; supports RTSP/FTP/DHCP/NTP/UPnP and other network protocols |
| Expansion interface | Support external audio amplifier, white-light LED control and GPIO pins for other extensions |
| Signal interface | 1 photoresistor interface, 1 IR-CUT driver interface; photoresistor input linked with IR-CUT and IR LEDs |
| PTZ interface | None |
| Motor interface | None |
| Alarm I/O | None |
| WIFI antenna connector | None |
| Reset button interface | None |
| SD card | None |
| Reliability | Full lightning protection, meets national and international standards; stable and reliable in 7*24h -10℃~65℃ high-temperature testing (including complete-unit testing) |
| Intelligent analysis | Support human detection and face detection; other intelligent functions available on request |
| Service functions | Support web configuration, OSD, motion detection; alarm-center notification and screen pop-up on motion alarm; MJPEG snapshots; client remote monitoring software, MYEYE platform and other applications; complete SDK |
| ONVIF protocol | Supported |
| Mobile monitoring | Support mobile monitoring (iOS, Android) |
| Power supply | Power: DC12V/2A, consumption: ≤3W |
| Board dimensions | 38mm*38mm |
| Description | Support PoE power (optional); one-key reset not supported; LED board drive voltage 3.3V |
Photos
Files

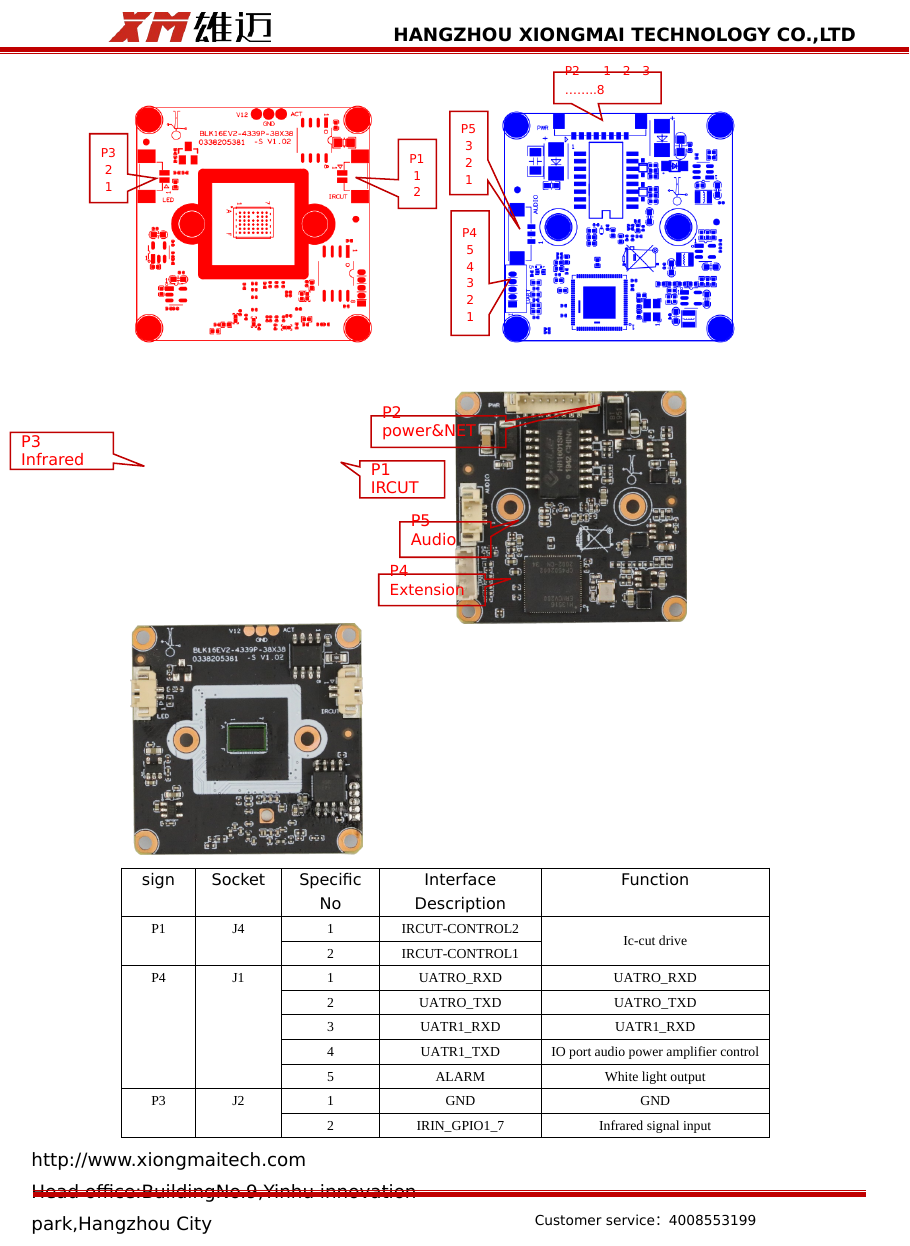

- IVG-85HF30PSB-ST-pinout-1.png (pinout, 332 KB)

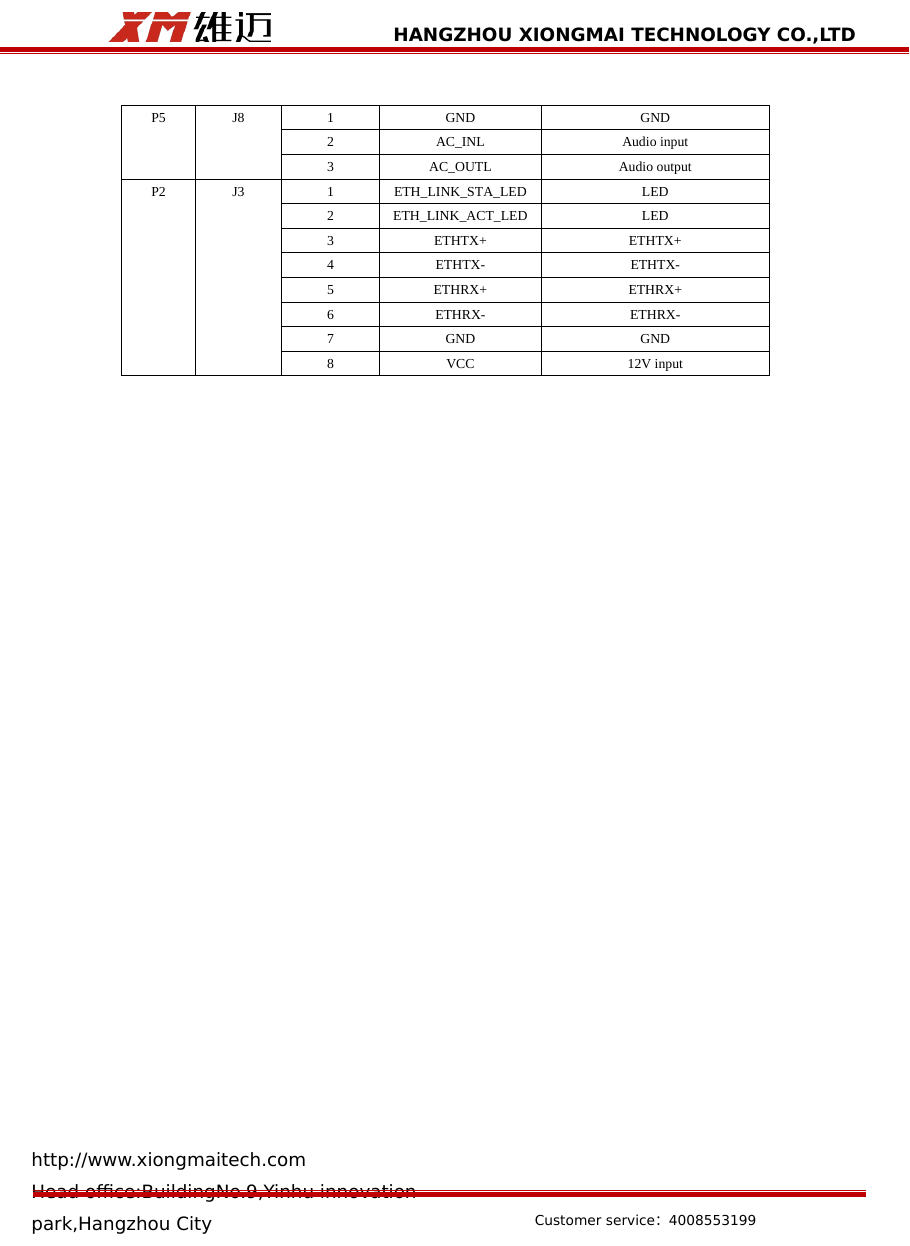

- IVG-85HF30PSB-ST-pinout-2.png (pinout, 52 KB)
- IVG-85HF30PSB-ST-interface-en.doc (document, 7.5 MB)
- IVG-85HF30PSB-ST-interface-en.pdf (document, 384 KB)
- IVG-85HF30PSB-ST-interface-zh.doc (document, 878 KB)
- IVG-85HF30PSB-ST-interface-zh.pdf (document, 306 KB)
- IVG-85HF30PSB-ST-parameters.pdf (document, 542 KB)
