IVG-G3J
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- GK7201V200
- Device IDs:
- 000929ZJ
- Listed:
- 2026
JFTech
3MP HD low illumination AI Intelligent IP Camera Module
IVG-G3J is a 3MP HD low illumination AI Intelligent IP Camera Module, 3MP image, Low noise, double light full color, improved night vision, clearer faces, support human detection, support H.265AI coding, mainly used in night vision HD video surveillance camera.
| System structure | Embedded Linux 64 DSP,pure hard compression ,watch dog |
|---|---|
| Sensor | 1/2.9" low illumination CMOS sensor, color 0.01Lux@F1.2, black/white 0.001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream: 2304*1296@20fps,1920*1080@20fps;sub-stream: 800*448@25fps; |
| Shutter | 1/50(1/60) s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, Recommended use: 5V standard voltage IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended. 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| light panel interface | 1*infrared & white light control interface |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Support human detection and face detection,support customization of other intelligent functions |
| Reliability | Comprehensive lightning protection, 7 * 24 hours -10℃～65℃high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption: ≤3W |
| Dimension | 38mm*38mm |
| Other | Support POE power supply |

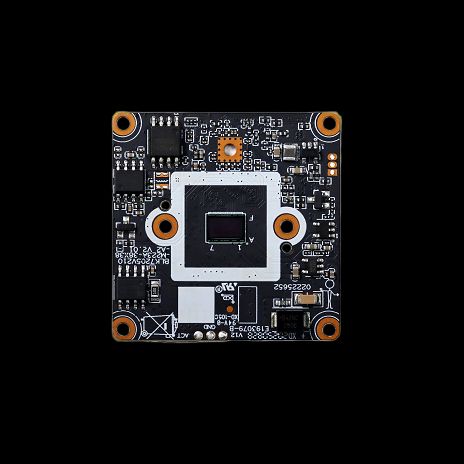

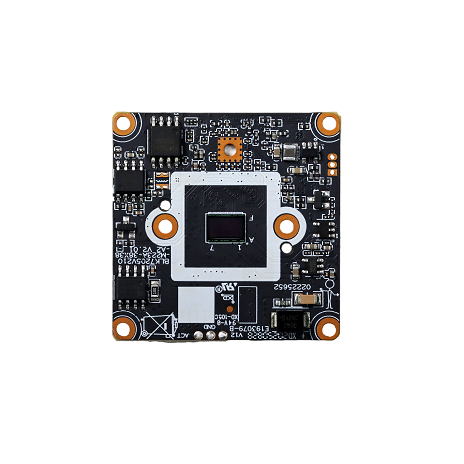

Photos
Files

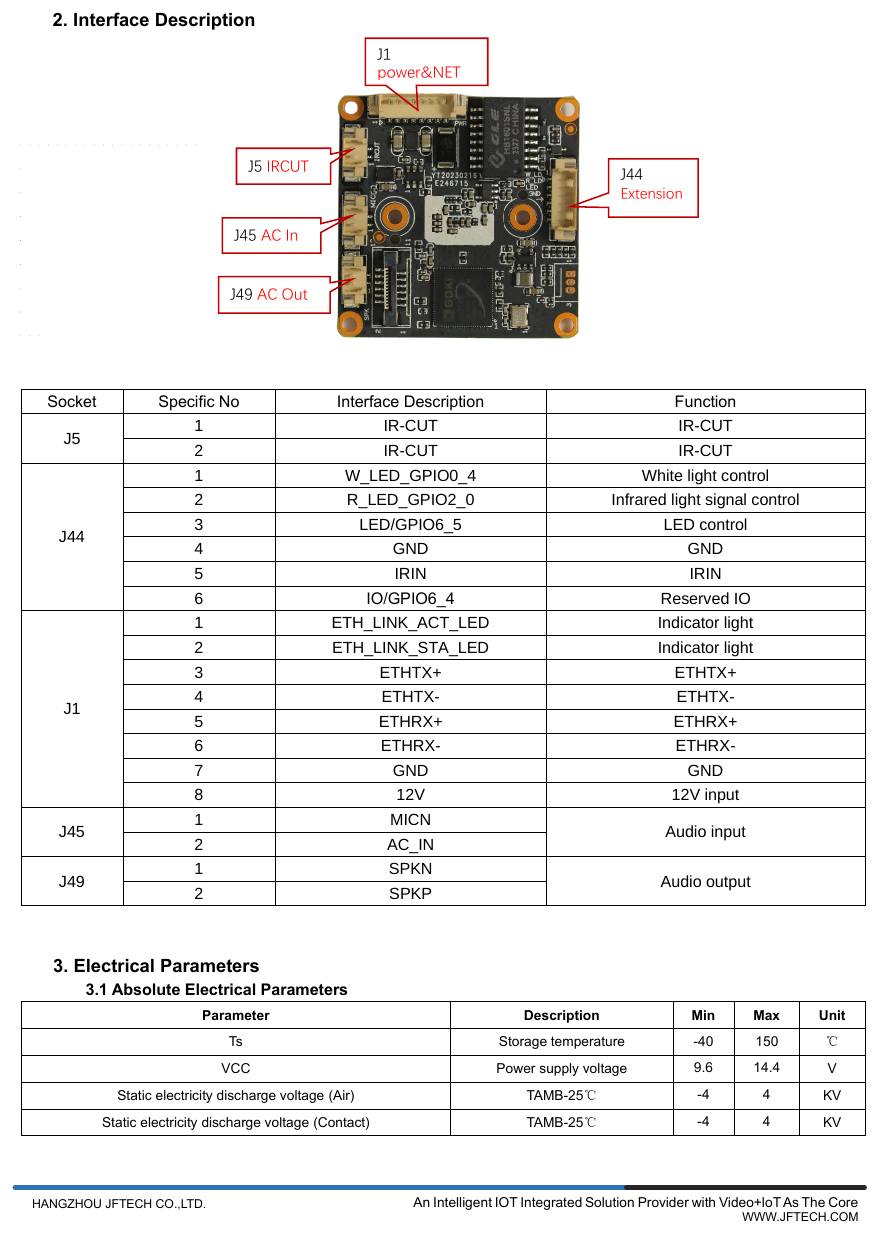

- IVG-G3J-pinout-1.png (pinout, 229 KB)
- Parameters-for-IVG-G3J.pdf (document, 425 KB)
