IVG-G4J
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- GK7201V200
- Device IDs:
- 000929ZJ
- Listed:
- 2026
JFTech
4MP HD AI Intelligent IP Camera Module
IVG-G4J is a 4MP HD AI Intelligent IP Camera Module, 4MP image, Low noise, double light full color, improved night vision, clearer faces, support human detection, Face detection, support H.265AI coding, mainly used in night vision HD video surveillance camera.
| System structure | Embedded Linux 64 DSP,pure hard compression ,watch dog |
|---|---|
| Sensor | 1/2.9" low illumination CMOS sensor, color 0.01Lux@F1.2, black/white 0.001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream: 4MP(Default) 2560*1440@25fps,3MP 2304*1296@25fps,2MP 1920*1080@25fps,720P 1280*720@25fps; sub-stream: HD1 800*448@25fps, D1 704*576@25fps; |
| Shutter | 1/50(1/60) s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, Recommended use: 5V standard voltage IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711, support bidirectional talk,audio&video synchronization |
| Audio interface | 1 audio input, MIC: Selection range -28dB~-36dB, -33dB is recommended.; 1 audio output, no amplifier module, requires an external amplifier to drive the speaker |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Extension interface | N/A |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| light panel interface | 1*infrared & white light control interface |
| Motor interface | N/A |
| Alarm I/O | 0/1 (Supports alarm output and alarm linkage,Supports 3.3V output) |
| WIFI interface | N/A |
| Reset interface | Supports (configurable as alarm input) |
| SD Card | N/A |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Support human detection and face detection,support customization of other intelligent functions |
| Reliability | Comprehensive lightning protection, 7 * 24 hours -10℃～65℃high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption: ≤3W |
| Dimension | 38mm*38mm |
| Other | Support POE power supply |

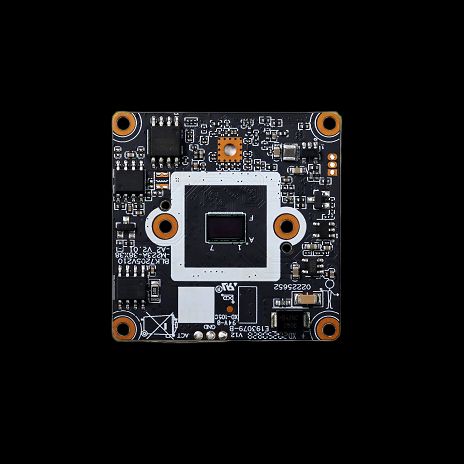

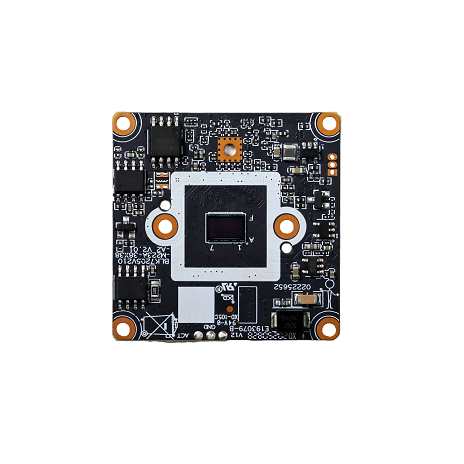

Photos
Files
- Parameters-for-IVG-G4J.pdf (document, 651 KB)
