IVG-G5SF
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- GK7205V500
- Device IDs:
- 000889S3
- Listed:
- 2024
JFTech
5MP HD Blacklight AI Intelligent IP Camera Module
IVG-G5SF is a 5MP Ultra HD Blacklight AI Intelligent IP Camera Module, 5MP image, all noise free, full color at night, support human shape detection, face detection, car shape detection, support H.265AI coding, mainly used in night vision Ultra HD video surveillance camera.
| System structure | Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog |
|---|---|
| Sensor | 1/3" black light CMOS sensor, color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream: 2880*1616@30fps,2560*1440@30fps,2304*1296@30fps,1920*1080@30fps； |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital Wide dynamic |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended. 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Extension interface | SD card slot,WIFI |
| Singal interface | One IR-CUT interface |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | N/A（Extended support） |
| Reset interface | Support |
| SD Card | N/A（Extended support） |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Supports human shape detection, facial detection, vehicle shape detection, and customization of other intelligent functions |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm |
| Other | Support POE power supply |

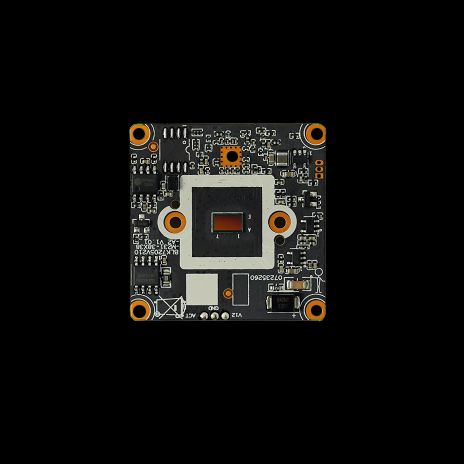

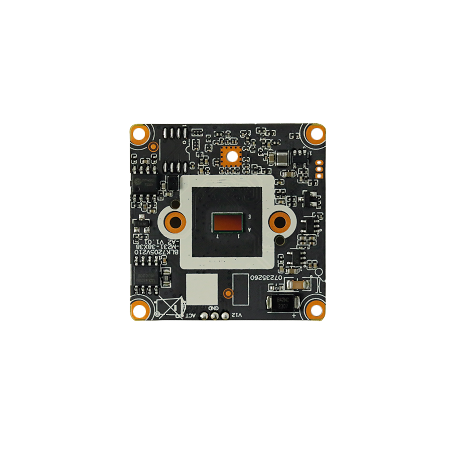

Photos
Files

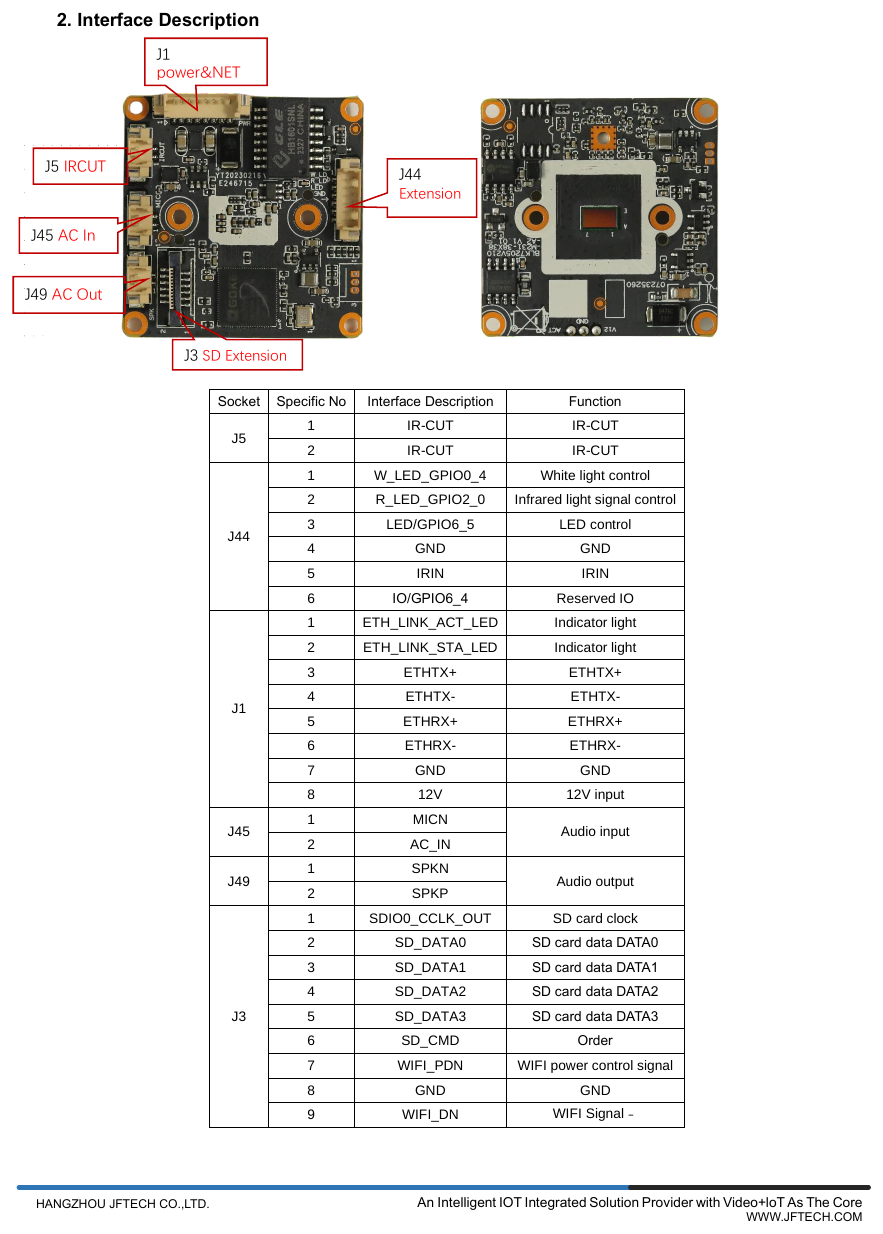

- IVG-G5SF-pinout-1.png (pinout, 320 KB)
- Parameters-for-IVG-G5SF.pdf (document, 419 KB)
- 1-boot_log.txt (boot log, 2 KB)
