IVG-G5SH
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- GK7205V500
- Device IDs:
- 000889ZX
- Listed:
- 2025
JFTech
5MP HD AI Intelligent IP Camera Module
IVG-G5SH is a 5MP Ultra HD Blacklight AI Intelligent IP Camera Module, 5MP image, all noise free, full color at night, support human shape detection, face detection, car shape detection, support H.265AI coding, mainly used in night vision Ultra HD video surveillance camera.
| System structure | Embedded RTOS,dual-core 32bit DSP(GK7205V500),pure hard compression ,watch dog |
|---|---|
| Sensor | 1/3" black light CMOS sensor, color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream:5M 2880*1616@25fps;4M 2560*1440@20fps;3M 2304*1296@25fps;2M 1920*1080@25fps;720P 1280*720@25fps sub-stream:HD1 800*448@25fps;D1 704*576@25fps;CIF 352*288@25fps;QVGA 640*360@25fps; |
| Shutter | 1/50(1/60) s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, Recommended use: 5V standard voltage IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended. 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Extension interface | SD card slot,WIFI |
| Singal interface | One IR-CUT interface |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | N/A（Extended support） |
| Other function | Support WEB,OSD,live video transmission, motion detect and IO alarm, front-end storage/playback/download, and center reminder and image linkage, support FTP capture;united remote client monitoring software、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Supporting Human shape detection, face detection, face capture, license plate recognition, passenger flow statistics, and support to customize other intelligent functions |
| Reliability | Comprehensive lightning protection, 7 * 24 hours -10℃～65℃high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption: ≤3W |
| Dimension | 38mm*38mm |
| Other | Support POE power supply |

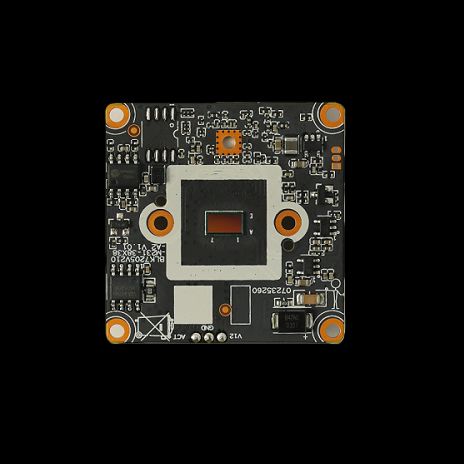

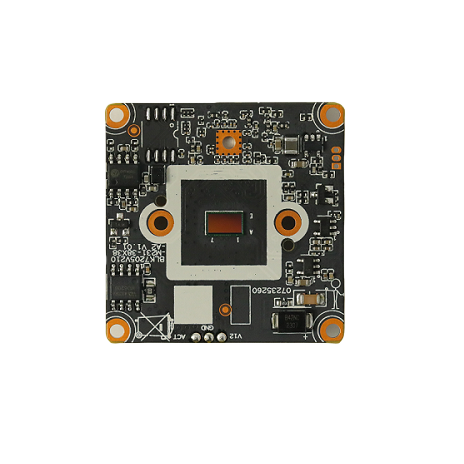

Photos
Files

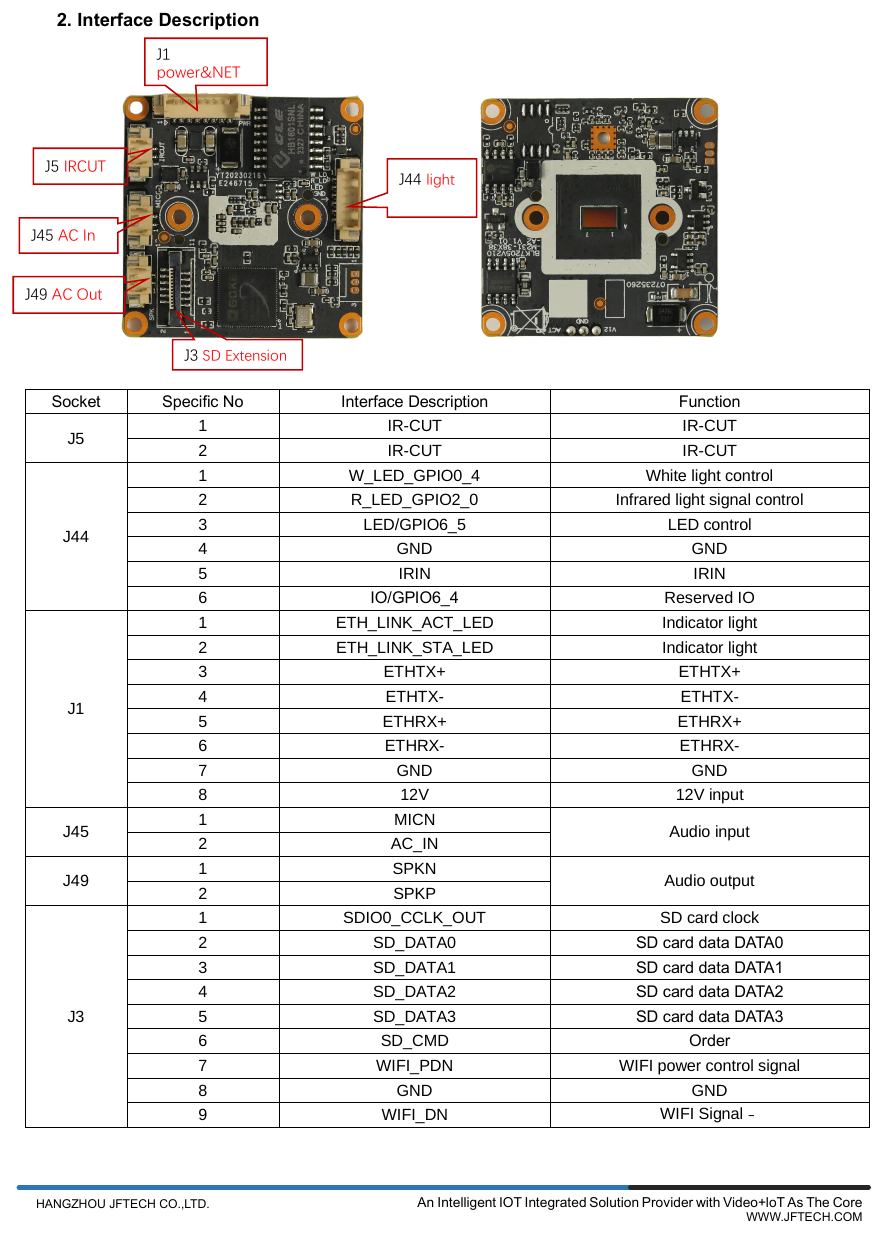

- IVG-G5SH-pinout-1.png (pinout, 329 KB)
- Parameters-for-IVG-G5SH.pdf (document, 416 KB)
