IVG-HP200S-AE
2.0M H.265 Intelligent analysis IP Module · Intelligent analysis module
- Maker:
- Xiongmai
- SoC:
- HI3516CV300
- Sensor:
- SC2235
- Device IDs:
- 00022520
- Listed:
- 2017
cctvsp.ru
IP camera module IVG-HP200S-AE (Hi3516Cv300 + SC2235)
A 2MP IP camera module. Sensor: 1/2.7'' SmartSens Tech. SC2235 third-generation CMOS Sensor; SoC: HiSilicon Hi3516Cv300 third-generation Professional HD IP Camera SoC with h265 support; resolution 1920x1080 at 25 frames per second.
Used in mid-range and premium outdoor and indoor cameras, with excellent performance for day and night video.

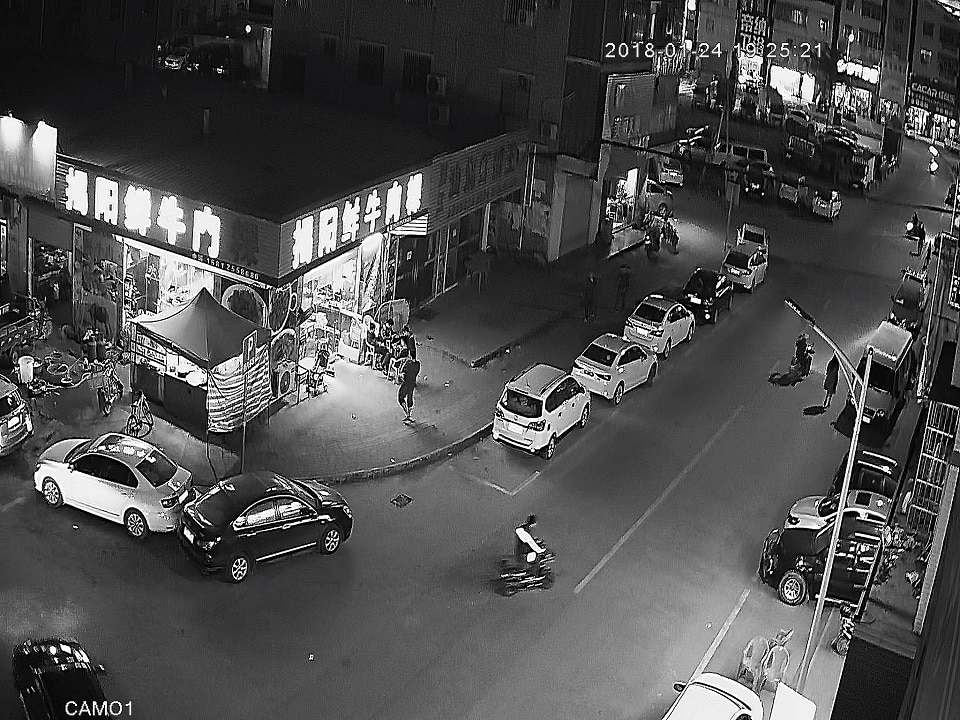

The SC2235 is one of the most successful creations of the Chinese company SmartSens: they managed to make a sensor with an excellent night picture that outperforms the competing F22. It is even positioned as a StarLight-series sensor, allowing colour recording at night.
The manufacturer states support for two-way audio, an alarm input, and an expansion board with a MicroSD card and a WiFi module.
| Sensor | 1/2.7'' SmartSens SC2235 CMOS sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516Cv300 Professsional HD IP Camera SoC |
Xiongmai
2.0M H.265 Intelligent analysis IP Module
Features
- 2.0M HD resolution,clear and fine images, Autofocal
- Support multiple intelligent analysis
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support ONVIF ,access third party
- Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IVG-HP200S-SE / IVG-HP200S-AE |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516CV300),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7 " SC2235 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080@25fps，1280*720@25fps; sub-stream: 704*576@25fps; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Extension interface | N/A / 1*USB,support WIFI/3G,support SD；1ch Alarm output；reset key；1ch Alarm input or LED panel；RTC battery |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | 1/0(support alarm input and video link to background) |
| WIFI interface | N/A |
| Reset interface | N/A |
| SD Card | N/A |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | Alarm line,alarm region,goods stranded,video block,fuzzy detection,scene change |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W |
| Dimension | 38mm*38mm |
| Other | Does not accept any custom，The drive voltage of the light board is at 3.3V |

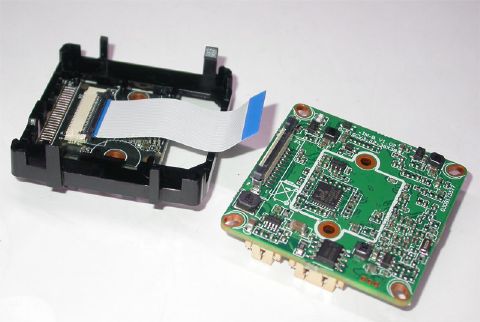

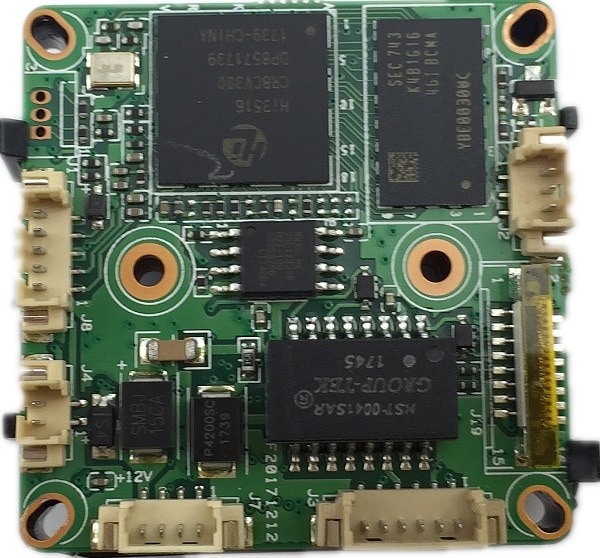

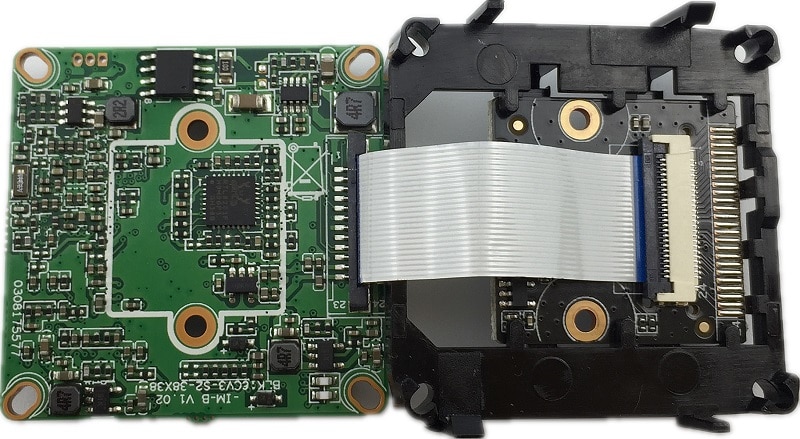

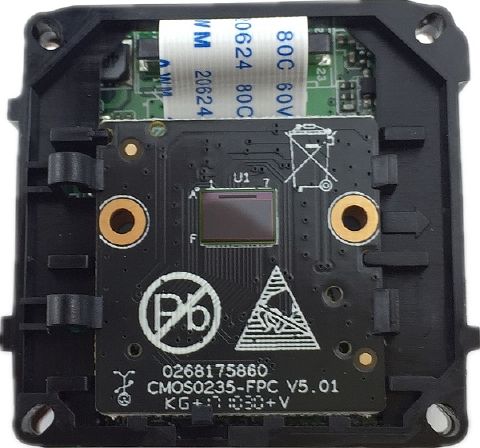

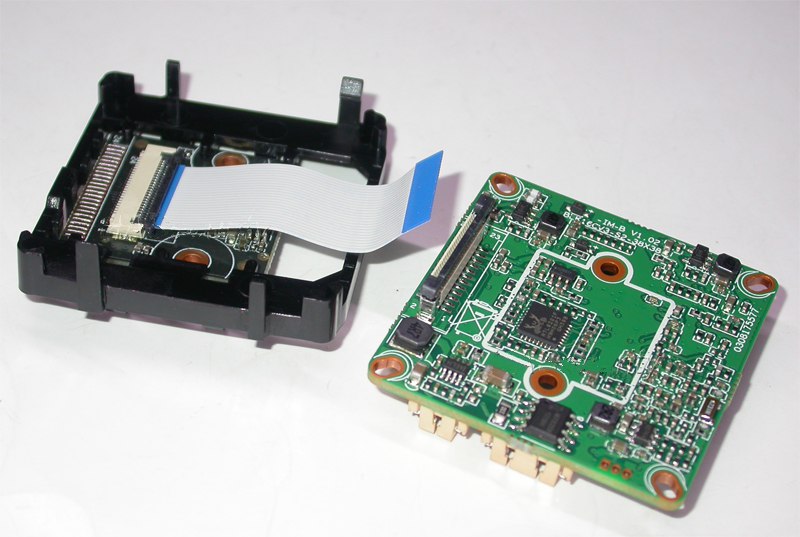

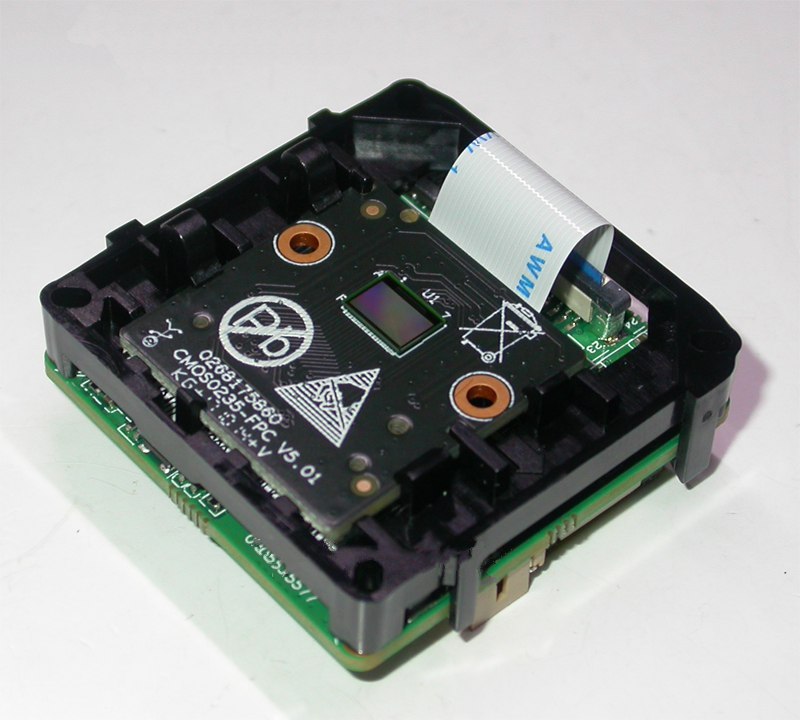

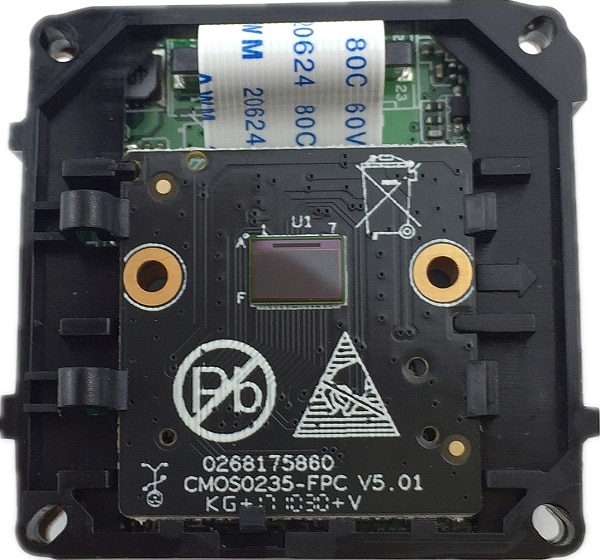

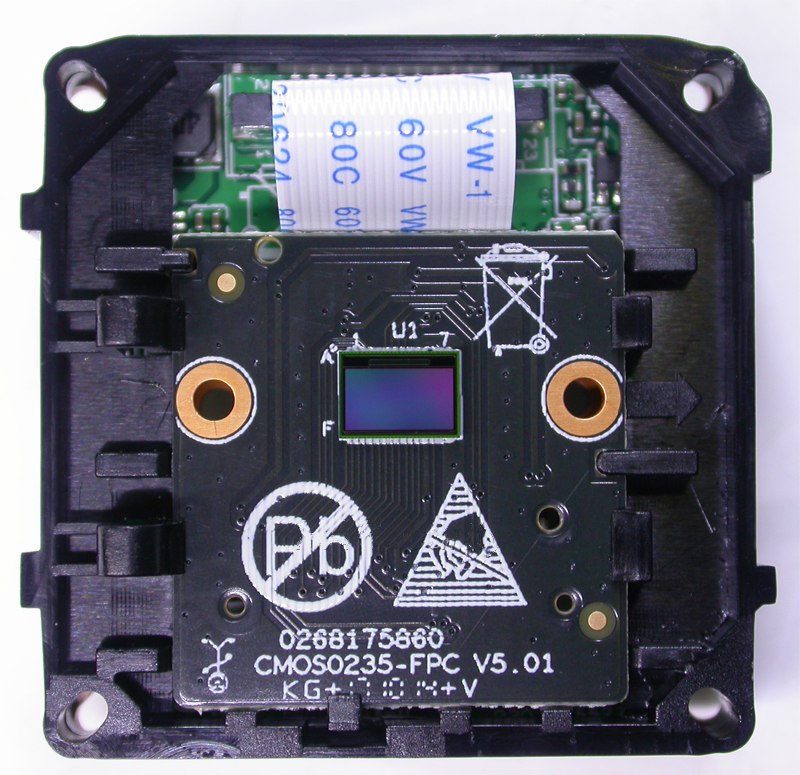

Photos
Files

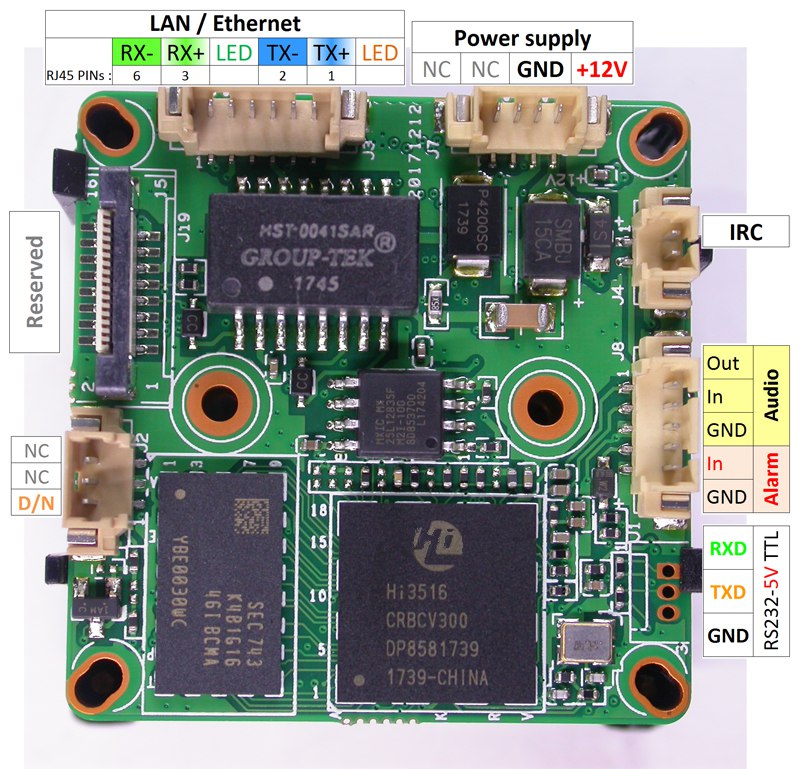

- pinout-3.jpg (pinout, 172 KB)

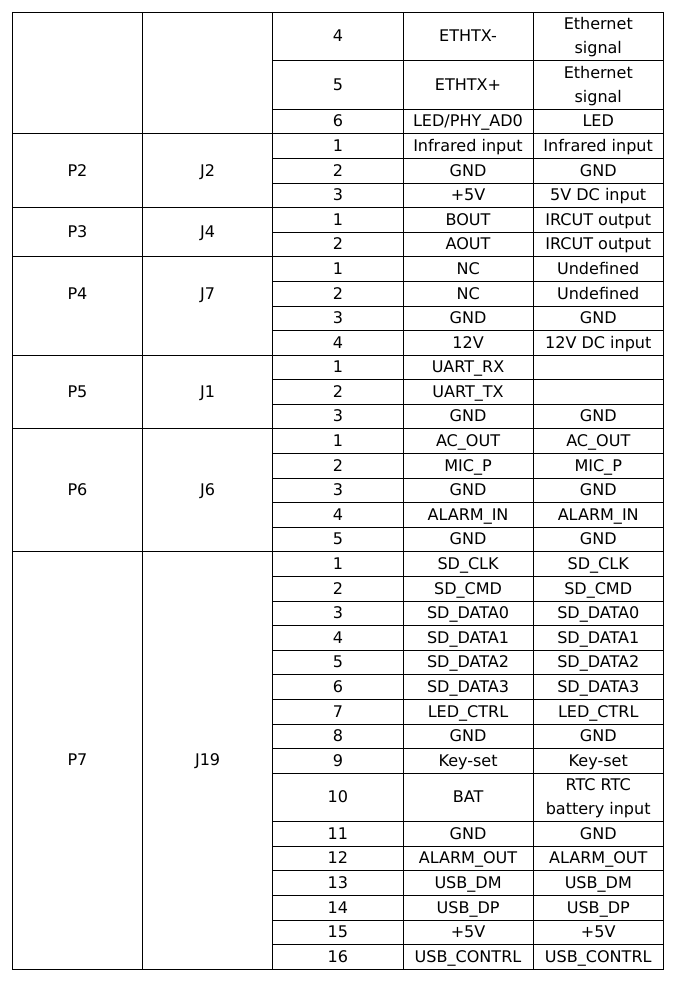

- IVG-HP200S-AE-pinout-1.png (pinout, 87 KB)
- IVG-HP200S-AE-interface-en.docx (document, 2.2 MB)
- IVG-HP200S-AE-interface-en.pdf (document, 355 KB)
- IVG-HP200S-AE-interface-zh.docx (document, 2.2 MB)
- IVG-HP200S-AE-interface-zh.pdf (document, 377 KB)
- IVG-HP200S-AE-parameters.pdf (document, 520 KB)
