IVG-HP203Y-AE

2.0M star-light H.265 Intelligent analysis IP Module · IP Camera Module

Maker:
Xiongmai
Sensor:
IMX291
Device IDs:
00022520
Listed:
2017

cctvsp.ru

IP camera module IVG-HP203Y-AE (Hi3516Cv300 + IMX291)

A 2MP IP camera module. Sensor: 1/2.8'' Sony IMX291 Back-Illuminated CMOS image Sensor; SoC: HiSilicon Hi3516Cv300 third-generation Professional HD IP Camera SoC with h265 support; resolution 1920x1080 at 25 frames per second.

Used in mid-range and premium outdoor and indoor cameras, with excellent performance for day and night video.

The IMX291 is a Starvis-series sensor from the Japanese company Sony Semiconductor. It is a timeless classic and is still the best among its peers for night picture quality. It allows a colour picture at night. Only one sensor comes anywhere close to it in sensitivity, the SC2235, and even that one falls short.

The manufacturer states that the module supports two-way audio, an alarm input, and an expansion board with a MicroSD card and a WiFi module.

Specifications
Sensor1/2.8'' Sony Starvis IMX291 Back-Illuminated CMOS image Sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516Cv300 Professsional HD IP Camera SoC

Xiongmai

2.0M star-light H.265 Intelligent analysis IP Module

Features

  • 2.0M star-light illumination HD resolution,clear and fine images
  • Support multiple intelligent analysis
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF ,access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIVG-HP203Y-SE / IVG-HP203Y-AE
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516CV300),pure hard compression ,watch dog
Sensor2.0M 1/2.8" IMX291 star-light illumination CMOS sensor ,color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2
Video compressionH.265++/H.265+/H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@25fps，1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensN/A
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfaceN/A / 1*USB,support WIFI/3G,support SD；1ch Alarm output；reset key；1ch Alarm input or LED panel；RTC battery
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0(support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisAlarm line,alarm region,goods stranded,video block,fuzzy detection,scene change
Other functionSupport OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W
Dimension38mm*38mm
OtherDoes not accept any custom.

Photos

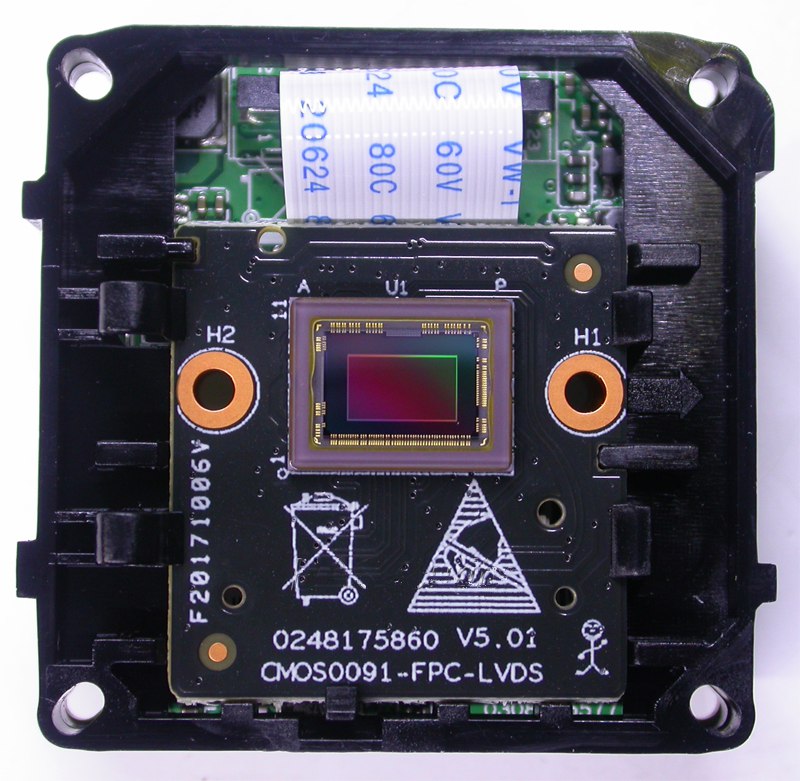

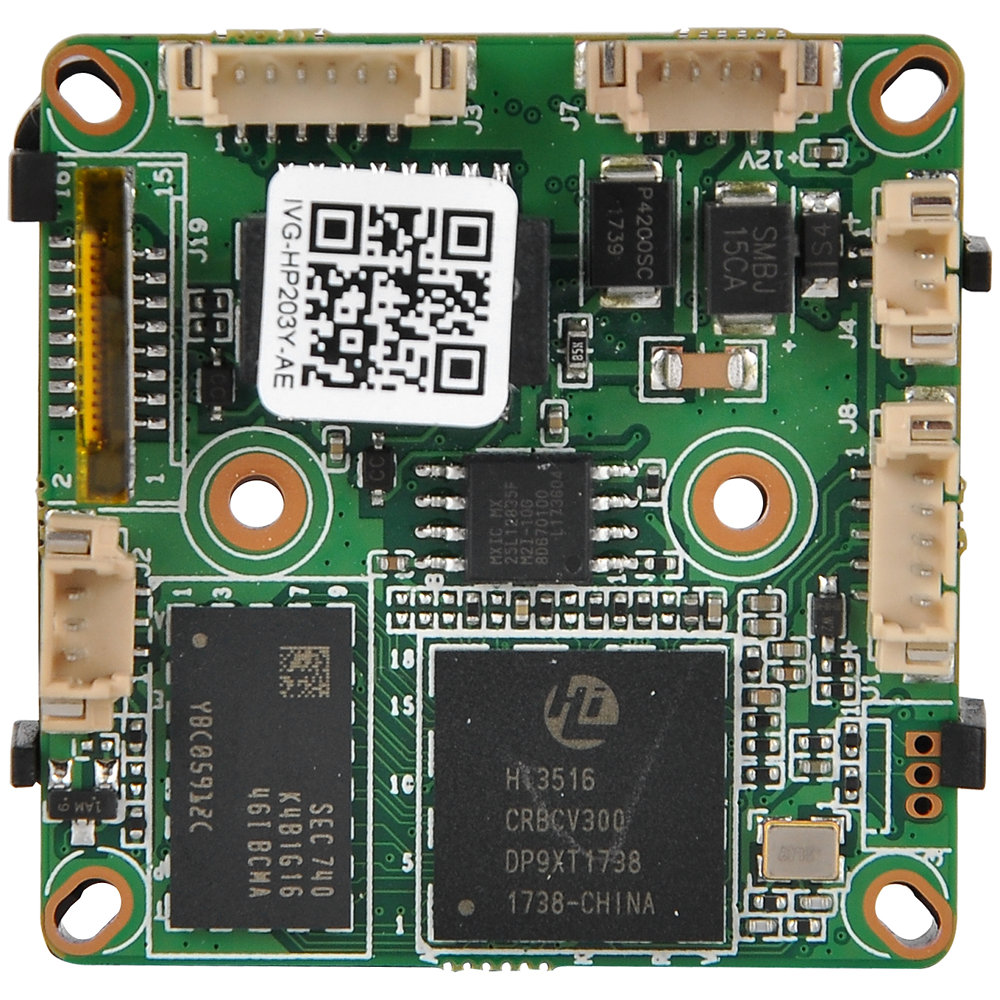

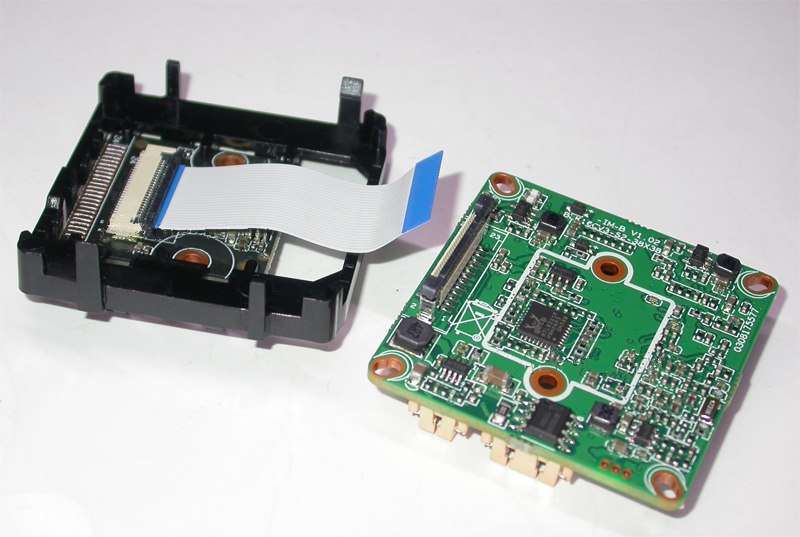

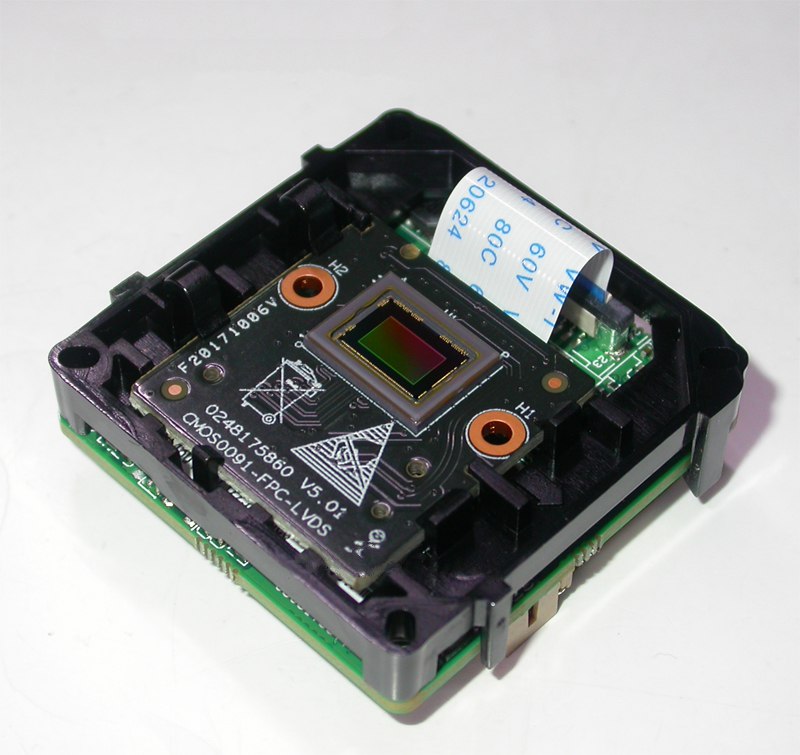

  • photo of IVG-HP203Y-AE
  • photo of IVG-HP203Y-AE
  • photo of IVG-HP203Y-AE
  • photo of IVG-HP203Y-AE
  • photo of IVG-HP203Y-AE

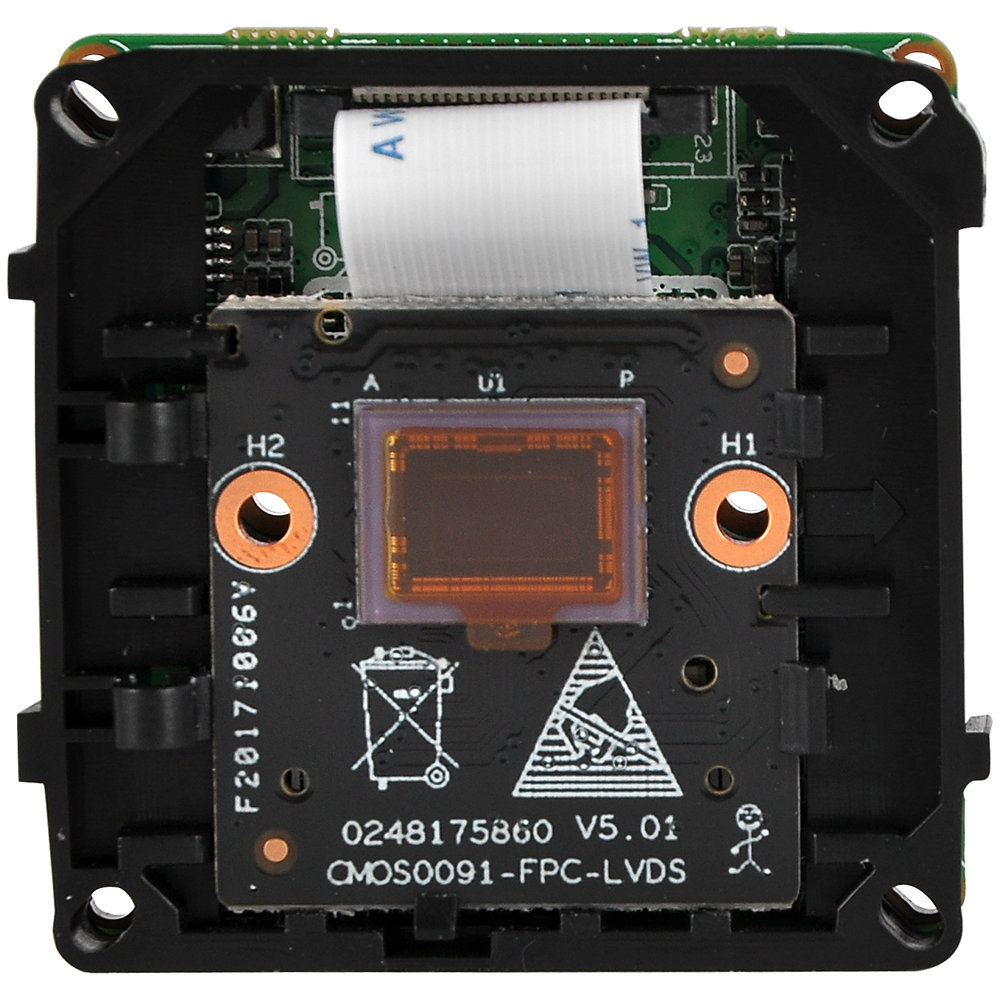

  • front of IVG-HP203Y-AE
