IVG-N12
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- NT98560
- Device IDs:
- 000769XU
- Listed:
- 2026
JFTech
12MP Ultra HD Blacklight IP Camera Module
IVG-N12 is a 12MP Ultra HD Blacklight IP Camera Module, support human shape detection, face detection, car shape detection, support H.265AI coding, mainly used in night vision Ultra HD video surveillance camera.
| System structure | Embedded Linux 64 DSP,pure hard compression ,watch dog |
|---|---|
| Sensor | 1/2.7" CMOS sensor, color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream:12MP 4000*3000@15fps(Default);8MP 3840*2160@15fps;5MP 2592*1944@25fps; 4MP 2560*1440@25fps;3MP 2304*1296@25fps;2MP 1920*1080@25fps; sub-stream:HD1 800*448@25fps(Default);D1 704*576@25fps;HD1 800*448@25fps;CIF 352*288@25fps;QVGA 640*360@25FPS; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | N/A(5v standard voltage supply) |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended. 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Extension interface | N/A |
| PTZ | 1 vertical motor interface, 1 horizontal motor interface |
| Alarm I/O | 0/1 (supports alarm output and alarm linkage, supports 3.3V output) |
| WIFI interface | N/A |
| Reset interface | Support (customizable as alarm input) |
| SD Card | Local TF card slot, up to 256G; cloud storage |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Supporting Human shape detection, face detection, face capture, and support to customize other intelligent functions |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption: ≤3W |
| Dimension | 39mm*46mm*2 |
| Other | Support POE power supply |

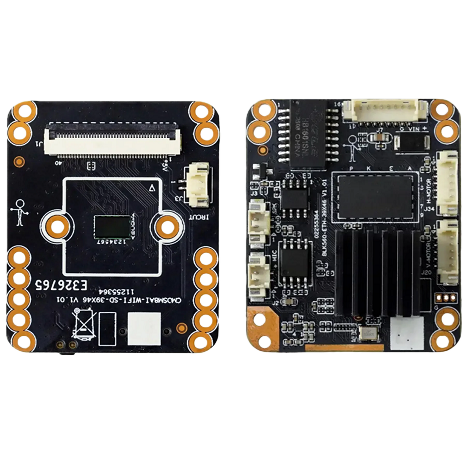

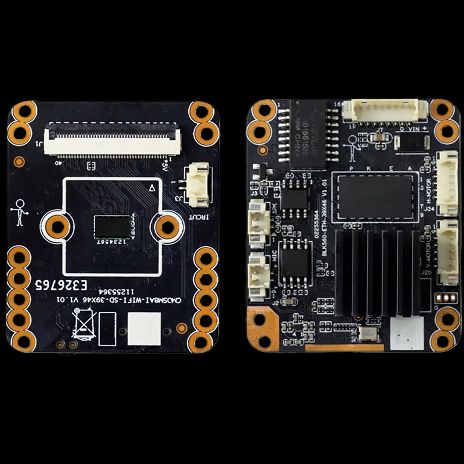

Photos
Files

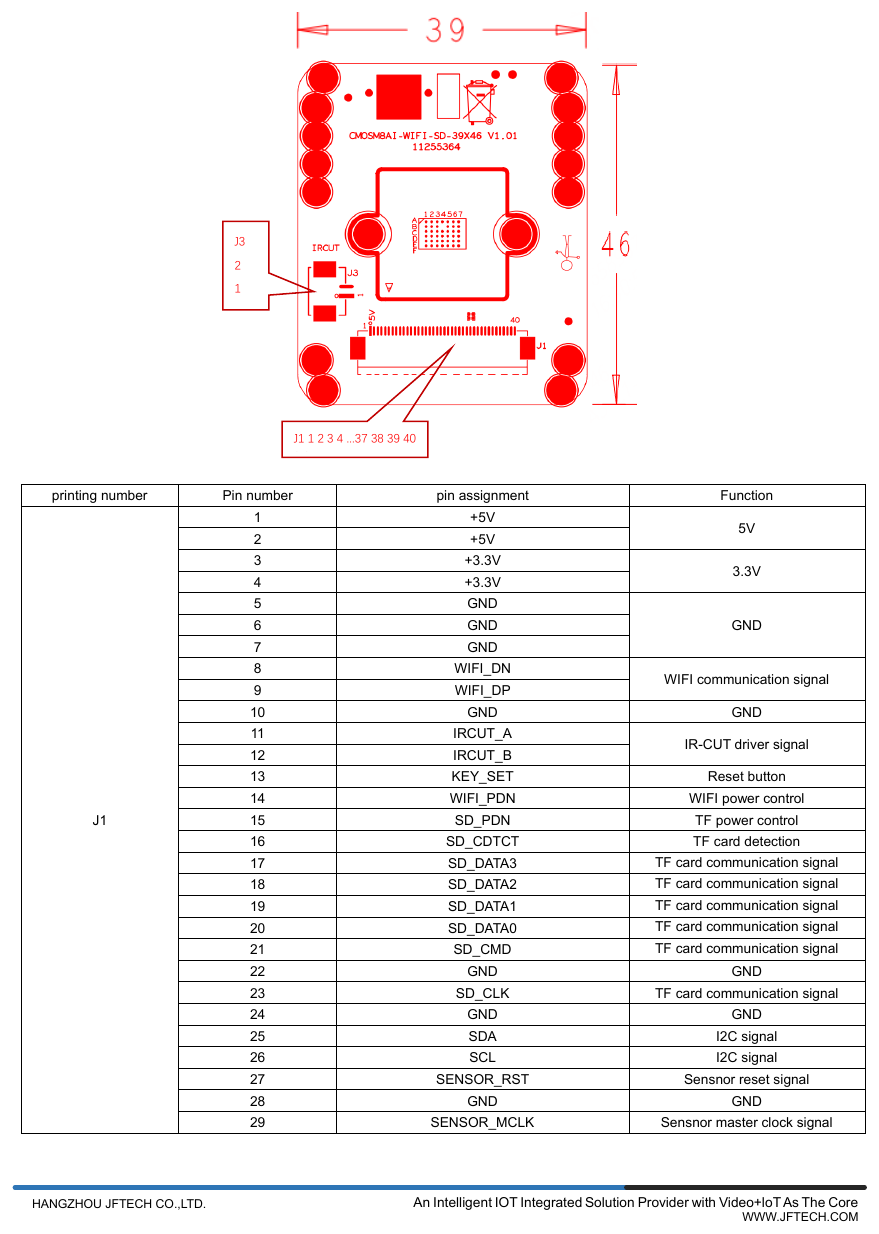

- IVG-N12-pinout-3.png (pinout, 132 KB)

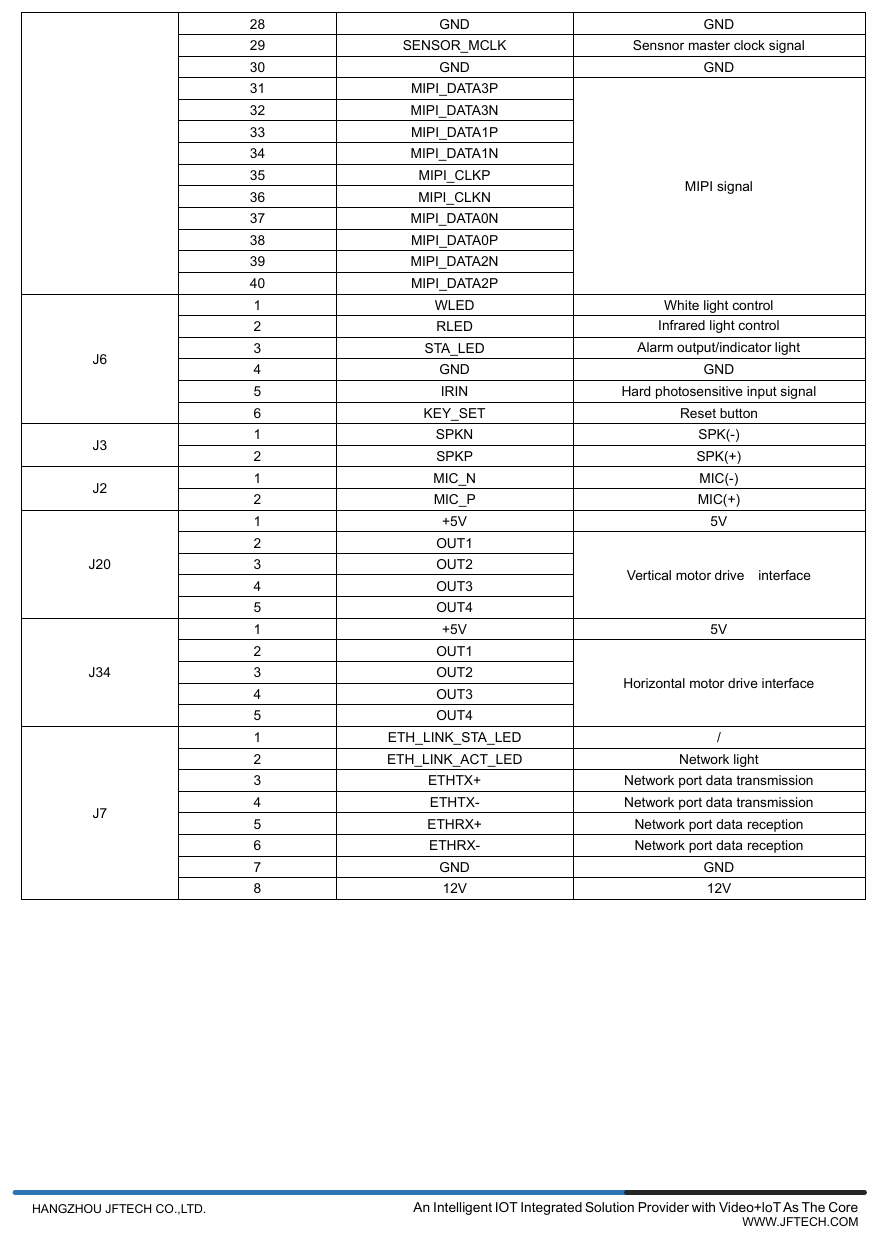

- IVG-N12-pinout-2.png (pinout, 103 KB)

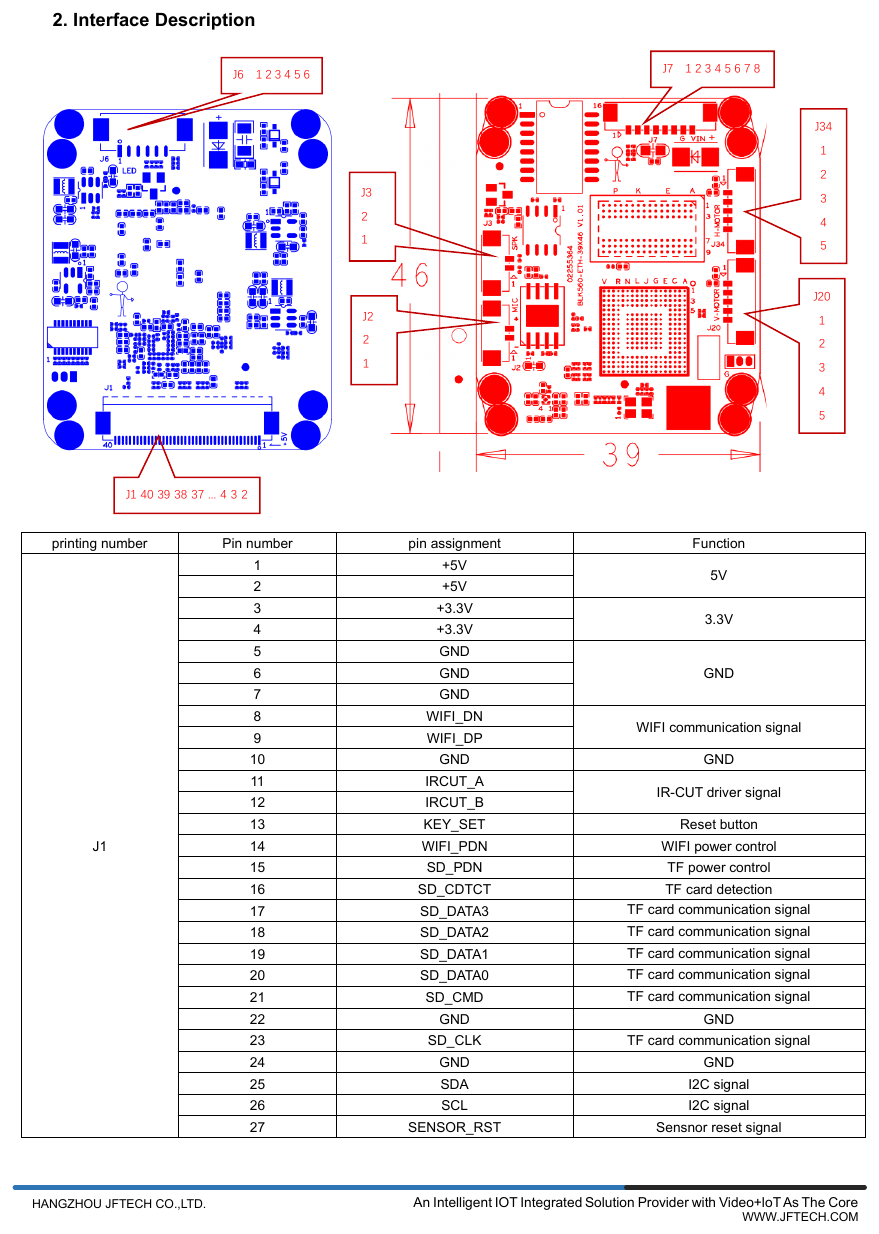

- IVG-N12-pinout-1.png (pinout, 202 KB)
- Parameters-for-IVG-N12.pdf (document, 759 KB)
