IVG-N8S
IP Camera Module
- Maker:
- Xiongmai
- SoC:
- NT98566
- Device IDs:
- 000749O7
- Listed:
- 2024
JFTech
8.0M Black light illumination H.265 IP Camera Module
Supporting Face detection，Humanoid detection, Vehicle detection,and supports customization of other smart functions;
8.0MP HD Black light illumination resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265AI/H.265+(Compatible with H.265/H.264) video compression, Super low rate, high definition quality of image;
Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5。
Support Unifaces third party，Support various mobile monitoring(iPhone, Android);
Provide web、CMS、center platform management software MYEYE,provide SDK development
Support cloud technology, easy to achieve network penetration, for in-line and alarm information pushed
| System structure | Embedded RTOS,dual-core 32bit DSP(NT98566),pure hard compression ,watch dog |
|---|---|
| Sensor | 8.0M 1/2.8"IMX415 Black light illumination CMOS sensor, color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps; sub-stream: 800*448@25fps; |
| Shutter | 1/50(1/60) s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, Recommended use: 5V standard voltage IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital Wide dynamic |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1 input, MIC: Selection range -28dB~-36dB, -33dB is recommended. 1 Output, Speaker: 8Ω2W is recommended. |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
| Extension interface | SD card slot,WIFI |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | N/A |
| WIFI interface | N/A（Extended support） |
| Reset interface | N/A |
| SD Card | N/A（Extended support） |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Intelligence analysis | Supporting Face detection，Humanoid detectionn, Vehicle detection,and supports customization of other smart functions etc. |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm |
| Other | Support POE power supply |

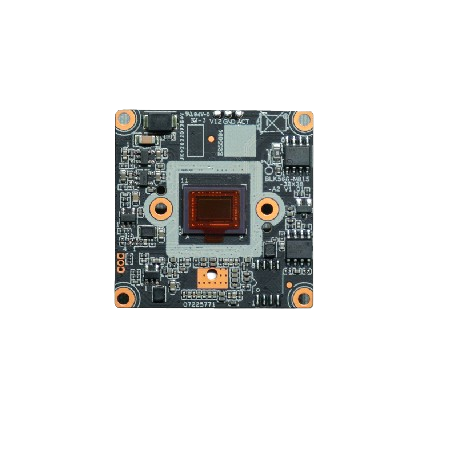

Photos
Files

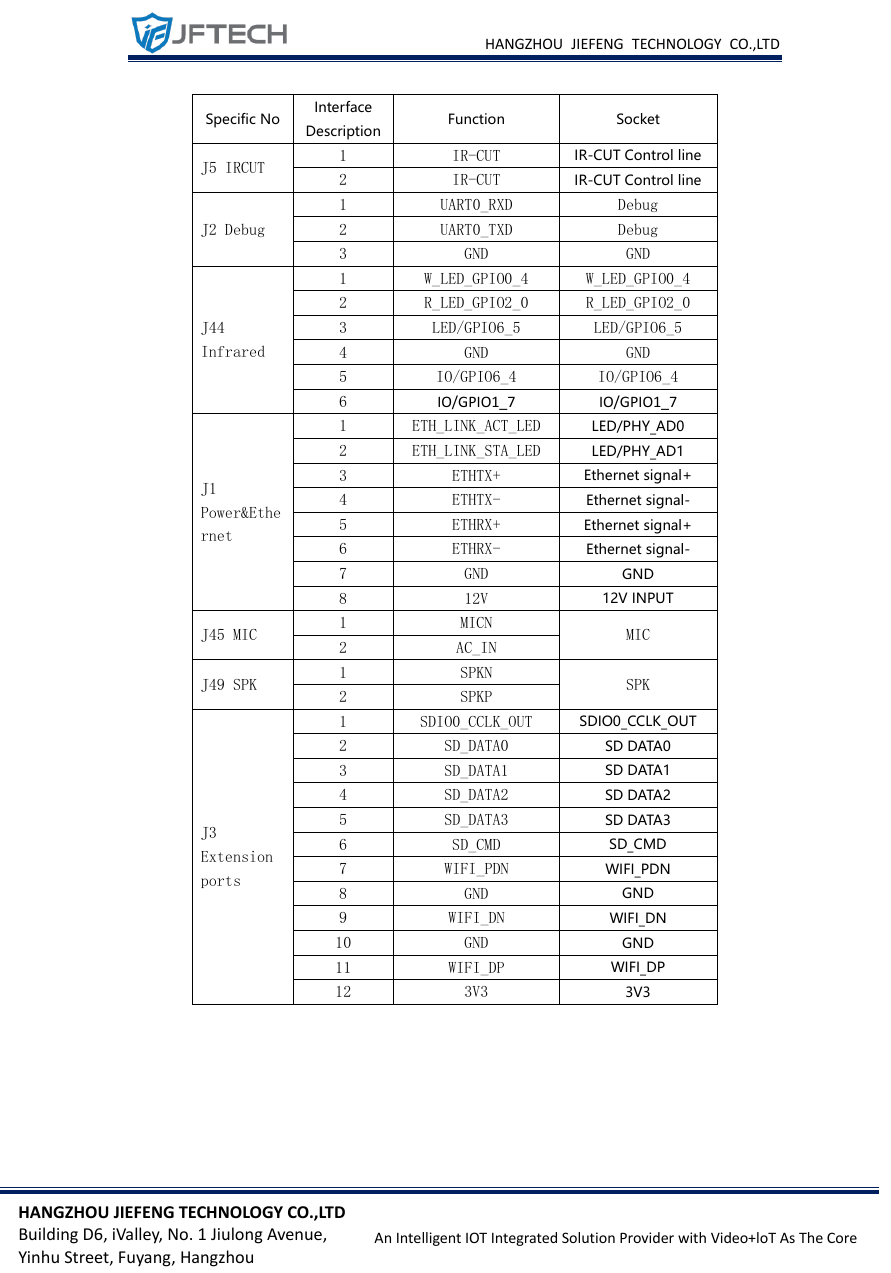

- IVG-N8S-pinout-1.png (pinout, 123 KB)
- Parameters-for-IVG-N8S.pdf (document, 564 KB)
