JF-EB-4BG-RS
AOV Camera
- Maker:
- Xiongmai
- Listed:
- 2025
JFTech

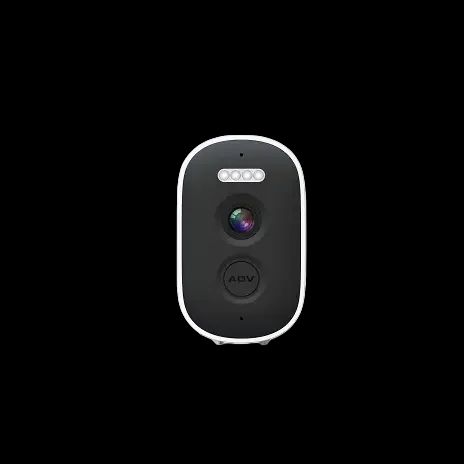

4MP 4G AOV Dual-light Battery Camera
JF-EB-4BG-RS is a 4G AOV battery camera, built-in 5200mAh battery, support Type-C charging, low power consumption and long standby time, support 1 second 1 frame video (AOV state) + full frame rate video (wake-up state), built-in SIM card, 4G network connection, lifetime traffic free. Full color night vision, infrared night vision, dual light alert. Suitable for home, villa, supermarket and other monitoring scenes.
| Image Sensor | 1/3" CMOS Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux;B/W:0.001 Lux |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| Day&Night | IR cut filter with auto switch |
| Focal length | 3.6mm |
| Viewing angle | D*H*V：93°*78°*40° |
| Lens Mount | M12 |
| Led | 4*dual light beads |
| range | Infrared 50 meters, white light 30 meters |
| Max reolution | 2560*1440 |
| Frame Rate | Default 12fps, maximum 25fps |
| Video Coding | H.265AI |
| Bite Rate | 0.1Mbps~10Mbps |
| Aideo Coding | G.711a |
| MIC | Pick up distance: 5 meters |
| Speaker | Power:2W; Rated impedance:8Ω |
| Frequency band | LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
| Rate | upstream up to 2Mbps, downstream up to 6Mbps |
| Settings | Image can be adjusted through the client or browser |
| Enhancement | Backlight compensation, glare suppression, 3D digital noise reduction |
| Power Supply | USB TYPE-C 5V |
| TF card slot | 1*TF Card interface (max 128G) |
| SIM card slot | 1 self ejecting SIM card holder, standard with telecom 4G card |
| Button | 1*Reset Button，1*switch |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-95% RH |
| Power Supply | DC 5V |
| Battery | 5200mAh |
| Consumption | MAX 4W |
| Material | ABS plastic |
| Waterproof | IP66 |
| Weight | Around 206g |
| Mounting | wall mounted, top mounted |
| Dimension | 91.9mm*56.4mm*63mm |
Photos
Files
- Parameters-for-JF-EB-4BG-RS.pdf (document, 322 KB)
