JF-SD-MN2340A-X4D2-W
Multi Lens Wi-Fi Camera
- Maker:
- Xiongmai
- SoC:
- NT98566
- Device IDs:
- E92639N0
- Listed:
- 2023
JFTech

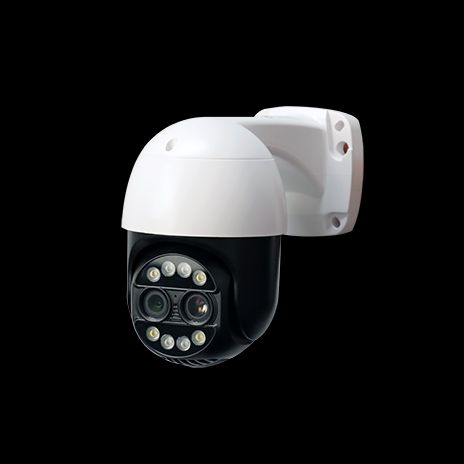

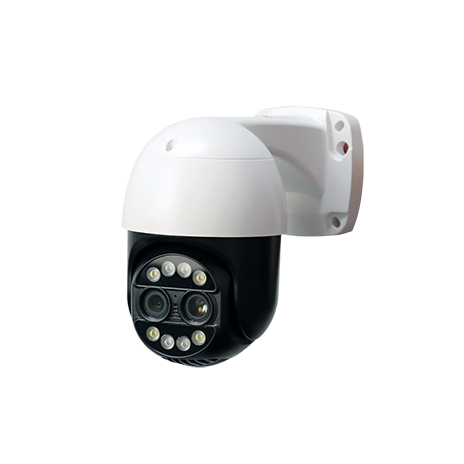

4MP Dual Lens PTZ Wi-Fi Camera
JF-SD-MN2340A-X4D2-W is an 1.5-inch outdoor waterproof Dual Lens Wi-Fi PTZ camera developed by our company, with dual-lens design, supporting 8x hybrid zoom Suitable for scenic spots, parks, warehouses, parking lots, neighborhoods, supermarkets and other monitoring scenarios.
| Sensor | 2*1080P 1/3" Low illumination Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Speed | 1/50(1/60)s to 1/10,000 s |
| Lens | 3.6mm@ F2.0+12mm@F1.8 |
| Lens Interface | M12 |
| Day & Night | IR-cut Filter with Auto-switching |
| Video Compression | H.265Ai |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Max. Image size | 2560*1440 |
| FPS | 12fps |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage Interface | Support TF Card (max. 128G) |
| Audio Input | Built-in High Sensitivity Microphone |
| Audio Output | Built-in Speaker |
| Button | Reset Button |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Power Supply | DC12V±10% |
| Power Consumption | 5W MAX |
| Bare Weight | About 385g |
| Dimensions | About 154mm*95mm*148mm |
Photos
Files
- Parameters-for-JF-SD-MN2340A-X4D2-W.pdf (document, 257 KB)
