JF-SD-MN4340R-X1D2-4GSV
AOV Camera
- Maker:
- Xiongmai
- Listed:
- 2025
JFTech

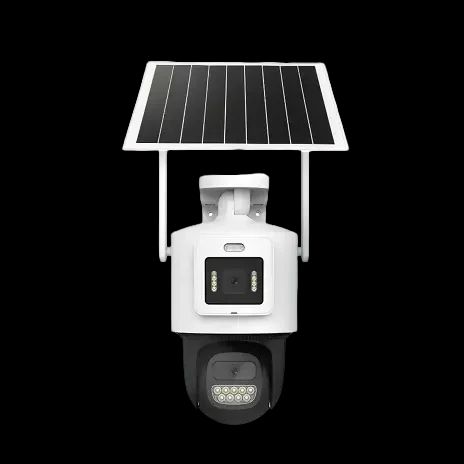

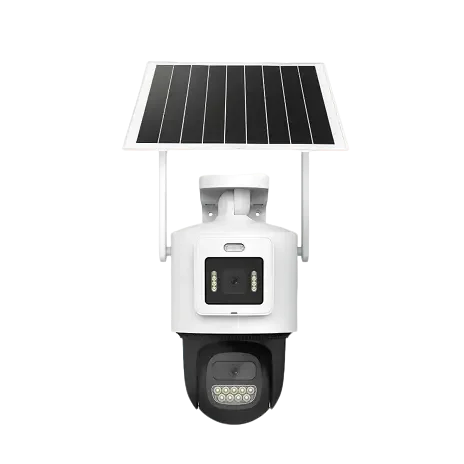

4MP AOV Battery 4G Bullet&PT Camera
JF-SD-MN4340R-X1D2-4GSV is a 4MP 4-inch battery 4G Bullet&PT Camera, with built-in battery power, low power consumption and ultra-long standby(1fps recording(AOV)+12fps recording(Wake-up status)), 4G network connection, Full color night vision, infrared night vision, dual light alert, support solar charging. It is suitable for indoor and outdoor scenarios such as villages, aquaculture, forestry, agriculture, factories, rivers, warehouses, industrial parks, and power facilities.
| Image Sensor | 2*1/2.9" Low illumination Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux;B/W:0.001Lux |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| Lens | 4mm,6mm,M12 |
| Mic | Built-in microphone |
| Speaker | Built-in speaker |
| Day & Night | Full color night vision, infrared night vision, dual light alert |
| Video storage | TF card storage, cloud storage |
| Voice talk | Two-way voice talk |
| Video Coding | H.265AI |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Coding | G.711a |
| Frequency band | LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
| Rate | upstream up to 2Mbps, downstream up to 6Mbps |
| Max.Resolution | 1920*2160 |
| Frame Rate | 12FPS |
| Storage Interface | 1*TF Card interface (max. 128G) |
| SIM card slot | 1*SIM card, Slot support SIM card replacement |
| Button | 1*Reset Button |
| Button | 1*switch button |
| Power Interface | 1*Type-C interface |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-95% RH |
| Power Supply | Built-in 10400mah lithium battery |
| Solar panels | 5V/7W Type-C，232.2mm*166.6mm |
| Vision Distance | Infrared: 30 m, Visible: 20 m |
| Pickup Distance | ≥5 m |
| Waterproof | IP66 |
| Bare Weight | About 700g |
| Installation | Wall-mounted, top-mounted |
| Dimensions | About 207.7mm*292.2mm*152.7mm |
Photos
Files
- Parameters-for-JF-SD-MN4340R-X1D2-4GSV.pdf (document, 347 KB)
