JF-SD-MN4380R-X1D3-W
Multi Lens Wi-Fi Camera
- Maker:
- Xiongmai
- Listed:
- 2025
JFTech

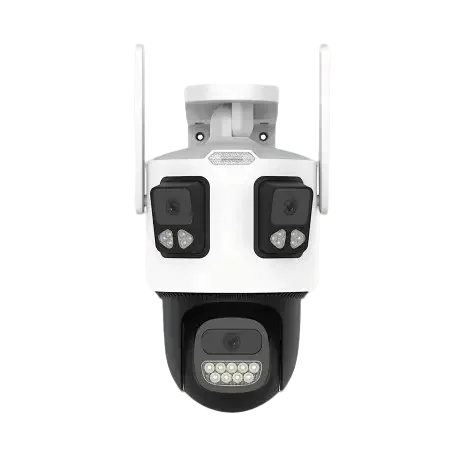

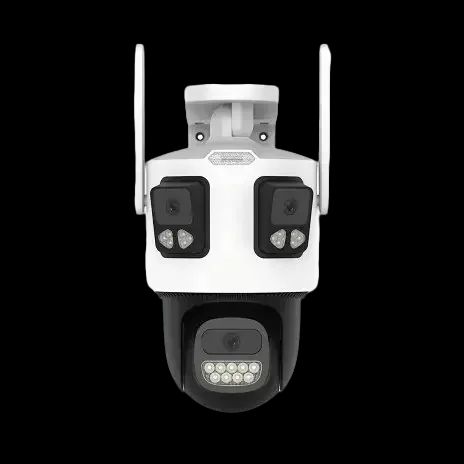

8MP 2*Bullet&PT triple lens Wi-Fi Camera
JF-SD-MN4380R-X1D3-W is a 4-inch outdoor waterproof 2*bullet&PT Wi-Fi camera, which adopts a triple-lens design and can monitor 3 different areas at the same time, which is suitable for scenic spots, parks, warehouses, parking lots, residential areas, supermarkets and other monitoring scenarios.
| Image Sensor | 2*1/3"+1/2.9" Low illumination CMOS Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux;B/W:0.001 Lux |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| Lens | 4mm*2,6mm,M12 |
| Mic | Built-in microphone |
| Speaker | Built-in speaker |
| Day & Night | full-color night vision, infrared night vision |
| Video storage | TF card storage, cloud storage |
| Voice talk | Two-way voice talk |
| Video Coding | H.265AI |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Coding | G.711a |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Max.Resolution | PT:2560*1440 Bullet *2:1920*1080 |
| Frame Rate | 12FPS |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Storage Interface | 1*TF Card interface (max. 128G) |
| Button | 1*Reset Button |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-95% RH |
| Power Supply | DC12V±10% |
| Vision Distance | Infrared: 30 m, Visible: 20 m |
| Pickup Distance | ≥5 m |
| Waterproof | IP66 |
| Bare Weight | About 700g |
| Installation | Wall-mounted, top-mounted |
| Dimensions | About 293.8mm*194.5mm*153mm |
Photos
Files
- Parameters-for-JF-SD-MN4380R-X1D3-W.pdf (document, 321 KB)
