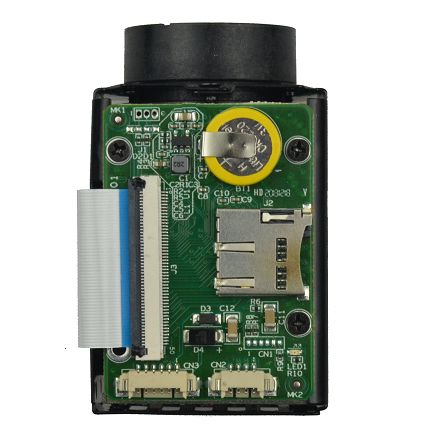

JZC-N51013
1.3M 10X Optical Zoom Camera Module · AF module
- Maker:
- Xiongmai
- Listed:
- 2015
Xiongmai
1.3M 10X Optical Zoom Camera Module
Features
- With 10X optical zoom capability
- 1/3"Aptina CMOS sensor
- 960P@30fps
- Support Micro SD card,up to 32G
- Support 3D DNR
- Support ONVIF
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
| Model | JZC-N51013 |
|---|---|
| Sensor | 1/3" APTINA CMOS |
| Video Standard | PAL/NTSC |
| FPS | 50Hz:25fps(1280*720) ,25fps(1280×960) 60Hz:30fps(1280*720) ,30fps(1280×960) |
| Min. Illumination | Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 |
| Electronic Shutter | 1/1 ~ 1/30000s |
| Day/Night | Support IR-CUT |
| Scan System | Row by row |
| Synchronous | Internal synchronous |
| Video Output | Digital signal (Y/Cb/Cr 4:2:2 via LVDS) |
| S/N Ratio | >50dB |
| Iris Control | Auto |
| Backlight compensation | Open/Close |
| White Balance | Auto |
| Slow Shutter | Support |
| Slow Exposal | Support |
| Exposal Mode | Auto |
| Privacy Masking | Support |
| WDR | Support |
| Gain Setting | Support |
| Menu | Flip / Mirror |
| Gain Control | Auto |
| Sharpness Adjustment | Support |
| Focusing | Auto/Manual/One-time auto-focus |
| Noise Reduction Level | 0/1/2/3/4/5 |
| Zoom Speed | 4S |
| Focus Control | Manual/Auto |
| Lens Initialization | Built-in |
| Optical Zoom | 10X ，4.63to46.3（F2.0） |
| Min.Focus distance | 100mm ~1000mm (Close focus ~ Far focus) |
| Digital Zoom | 12x (Max 240x) |
| Horizontal Angle of View | Level: 55.4~2.90 |
| Network | 1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc... |
| Function | Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, download/playback, JPEG snapshot, CMS, MYEYE and SDK for second development |
| Storage Environment | （-20°C ~+70°C/20﹪to 95﹪RH） |
| Working Environment | （-10°C ~ +60°C/20﹪ to 80﹪RH） |
| Power Supply | DC 9V-12V(suggest 12V) |
| Power Consumption | MAX:6W |
| Dimension(mm) | 64.6mm*38.6mm*41.5mm |
| Weight | 286g |
