JZC-N51813L
1.3M/2.0M 18X Optical Zoom Camera Module · AF module
- Maker:
- Xiongmai
- Listed:
- 2015
Xiongmai

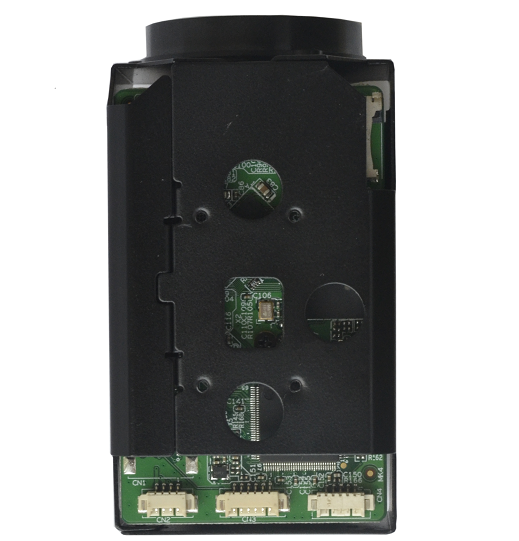

1.3M/2.0M 18X Optical Zoom Camera Module
Features
- With 18X optical zoom capability
- 1/3"Aptina CMOS sensor,960P@30fps
- 1/2.8" SONY CMOS sensor,1080P@30fps
- Support Micro SD card,up to 32G
- Support 3D DNR
- Support ONVIF
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
| Model | JZC-N51813L / JZC-N51820L / JZC-N51820S |
|---|---|
| Sensor | 1/3" APTINA CMOS / 1/2.8" SONY CMOS / 1/2.8" SONY CMOS |
| Video Standard | PAL/NTSC |
| FPS | 50Hz:25fps(1280*960) 60Hz:30fps(1280*960) / 50Hz:25fps(1920×1080) 60Hz:30fps(1920×1080) / 50Hz:25fps(1920×1080) 60Hz:30fps(1920×1080) |
| Min. Illumination | Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 / Color: 0.0001Lux@F1.6, B/W: 0.0001Lux@F1.6 |
| Electronic Shutter | 1/1 ~ 1/30000s |
| Day/Night | Support IR-CUT |
| Scan System | Progressive scan |
| Synchronous | Internal synchronous |
| S/N Ratio | >50dB |
| Iris Control | Auto |
| Backlight compensation | Open/Close |
| White Balance | Auto |
| Slow Shutter | Support |
| Slow Exposal | Support |
| Exposal Mode | Auto |
| Privacy Masking | Support |
| WDR | Support |
| Gain Setting | Support |
| Menu | Flip / Mirror |
| Gain Control | Auto |
| Sharpness Adjustment | Support |
| Focusing | Auto/Manual/One-time auto-focus |
| Noise Reduction Level | 0/1/2/3/4/5 |
| Zoom Speed | 4S |
| Focus Control | Manual/Auto |
| Lens Initialization | Built-in |
| Optical Zoom | 18X, 4.7 to 84.6mm（F1.6 to F3.6） |
| Min.Focus distance | 100mm ~1000mm (Close focus ~ Far focus) |
| Digital Zoom | 12x (Max 240x) |
| Horizontal Angle of View | Level: 55.4~2.90 |
| Network | 1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc... |
| Function | Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, download/playback, JPEG snapshot, CMS, MYEYE and SDK for second development |
| Storage Environment | （-20°C ~+70°C/20﹪to 95﹪RH） |
| Working Environment | （-10°C ~ +60°C/20﹪ to 80﹪RH） |
| Power Supply | DC 9V-12V(suggest 12V) |
| Power Consumption | MAX:6W |
| Dimension(mm) | 87.5mm x 50mm x 60mm |
| Weight | 220g |
