LPG-EG3X

3MP IP Camera module · Battery Camera Module

Maker:
Xiongmai
SoC:
XM530
Device IDs:
0003076F
Listed:
2021

JFTech

3MP Battery Camera Module

LPG-EG3X is an 3MP Battery Camera Module developed by our company, which is mainly used in HD video surveillance cameras.

Specifications
ModelLPG-EG3X
System Structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor3MP 1/2.7" Low illumination CMOS Sensor
Min. IlluminationColor：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter1/50(1/60)s to 1/10,000s
Day&NightSupport IR-CUT
Image OutputMain stream: 2288*1288@12fps; Sub-code stream:800*448@12fps
DNRSupport 2D/3D DNR
WDRSupport
Video CompressionH.265AI
Audio CompressionG.711A
Audio Interface1 channel input, support microphone input; 1 channel output, support speaker output playback
Network Interface1*WIFI antenna interface to support wireless network connection
Signal Interface1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage
Storage Interface1*TF card storage interface
Reset Interface1*reset interface
Business FunctionsSupport cell phone remote monitoring; alarm message push; MJPEG capture
ONVIFsupport
Storage ModeLocal TF card, up to 128G; cloud storage
Mobile MonitoringSupport（iOS，Android）
Smart AlarmSupporting PIR detection , support to customizing other intelligent functions
ReliabilityComprehensive lightning protection; 3*24 hours high temperature test stable and reliable
Power Supply4.2V lithium battery power supply
Dimension38mm*38mm+38mm*24mm

Xiongmai

3MP IP Camera module

Features

  • 3MP resolution, clear and delicate image
  • Support PIR human infrared sensing
  • Support app remote wake-up
  • Support IR-CUT
  • DC5V power supply, Support solar power supply duration (need external solar power panel
  • Support WiFi connections
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265X video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support mobile phone monitoring(iOS, Android)
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelLPG-EG3X
System structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor3.0M 1/2.7"Q03 CMOS sensor
Min. illuminationColor：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Video compressionH.265X coding,support dual stream,AVI;0.1M~8Mpbs variable
Image outputMain stream: 2288*1288@12fps; sub-stream: 800*448@12fps
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone;
Network interfaceN/A
Extension interfaceN/A
Singal interfaceone IR-CUT interface
PTZ interfaceN/A
Alarm I/ON/A
Wireless interface1 *Wireless interface,Support WiFi connections
Reset interfaceSupport
Storage modeLocal TF card storage, up to 128G; cloud storage
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisSupport PIR human infrared sensing and customizing other intelligent functions
Other functionSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
ONVIFN/A
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC5V±10%
Dimension38mm*38mm+38mm*24mm
OtherN/A

Photos

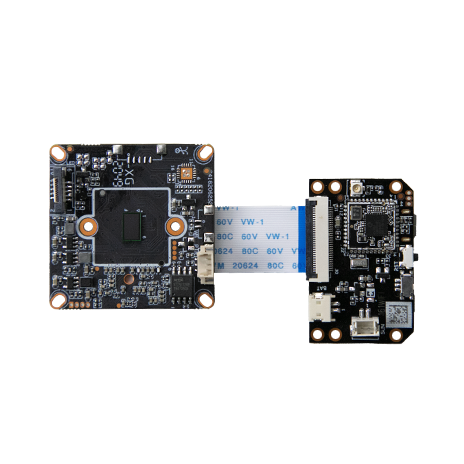

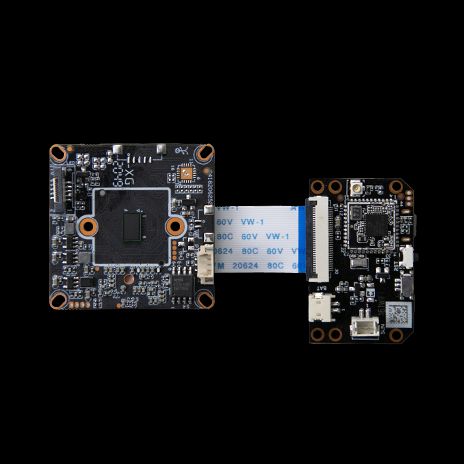

  • front of LPG-EG3X
  • front of LPG-EG3X
