LPG-G4-4GQEU

4G Camera Module

Maker:
Xiongmai
Device IDs:
000729MQ
Listed:
2025

JFTech

4MP 4G Battery Camera Module（European version）

LPG-G4-4GQEU is a 4MP 4G battery camera module developed by our company, battery-powered, supporting European standard 4G standards and frequency bands, covering Asia Pacific, the Middle East, Europe, Oceania, and parts of South America (refer to the list of frequency band support for details), mainly used in high-definition video surveillance cameras.

Specifications
ModelLPG-G4-4GQEU
System Structuredual-core 32-bit DSP, pure hard compression ,watch dog
Sensor1/3" Low illumination CMOS Sensor
Min. IlluminationColor：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter1/50(1/60)s to 1/10,000s
Day&NightSupport IR-CUT
Image OutputMain stream: 2560*1440@12fps; Sub-code stream:640*360@12fps
DNRSupport 2D/3D DNR
WDRSupport
Video CompressionH.265AI
Audio CompressionG.711A
Audio Interface1 channel input, support microphone input; 1 channel output, support speaker output playback
Network InterfaceSupport European standard 4G CAT1 network
Signal Interface1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage
Motor Interface1* horizontal motor interface, 1*vertical motor interface
Storage Interface1*TF card storage interface
Reset Interface1*reset interface
Value-added servicesCloud storage, scene AI (outdoor security), etc., need to be activated at the APP at your own expense
Storage ModeLocal TF card, up to 512G; cloud storage
Mobile MonitoringSupport（iOS，Android）
Smart AlarmSupporting PIR detection , support to customizing other intelligent functions
ReliabilityComprehensive lightning protection; 3*24 hours high temperature test stable and reliable
Power Supply4.2V lithium battery power supply
Dimension44mm*58mm

Photos

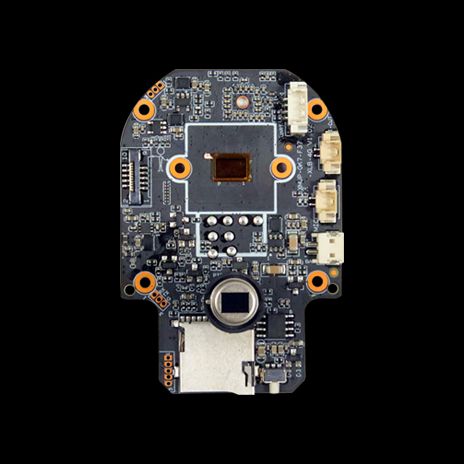

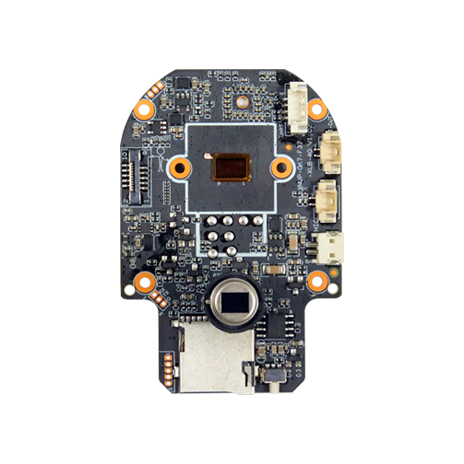

  • front of LPG-G4-4GQEU
