LPG-G4-D-Y3
Battery Camera Module
- Maker:
- Xiongmai
- SoC:
- GK7202V300
- Device IDs:
- 000729ML
- Listed:
- 2023
JFTech
4MP Video Doorbell Module
LPG-G4-D-Y3 is an 4MP visual doorbell module developed by our company, which is mainly used in intelligent visual doorbell.
| Model | LPG-G4-D-Y3 |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| Sensor | 1/3" high performance CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Day&Night | Support IR-CUT |
| Image Output | Main stream: 2560*1440@12fps; Sub-code stream:800*448@12fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | 1*WIFI antenna interface to support wireless network connection |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Storage Interface | 1*TF card storage interface |
| Reset Interface | 1*reset interface |
| Business Functions | Support cell phone remote monitoring; alarm message push; MJPEG capture |
| ONVIF | support |
| Storage Mode | Local TF card, up to 128G; cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Smart Alarm | Supporting PIR detection , support to customizing other intelligent functions |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | 4.2V lithium battery power supply |
| Dimension | 44mm*58mm |

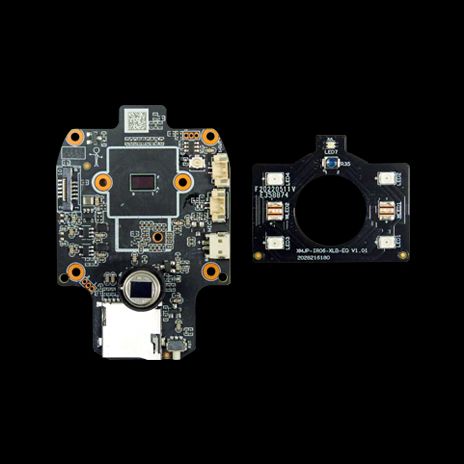

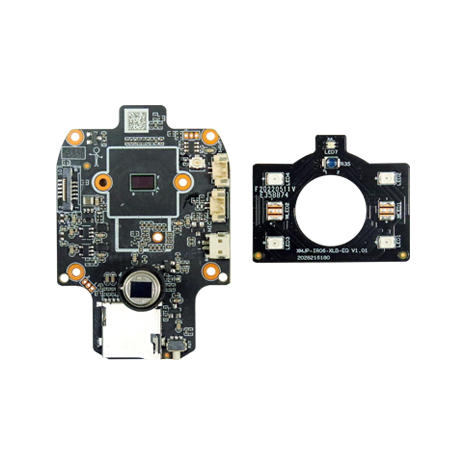

Photos
Files

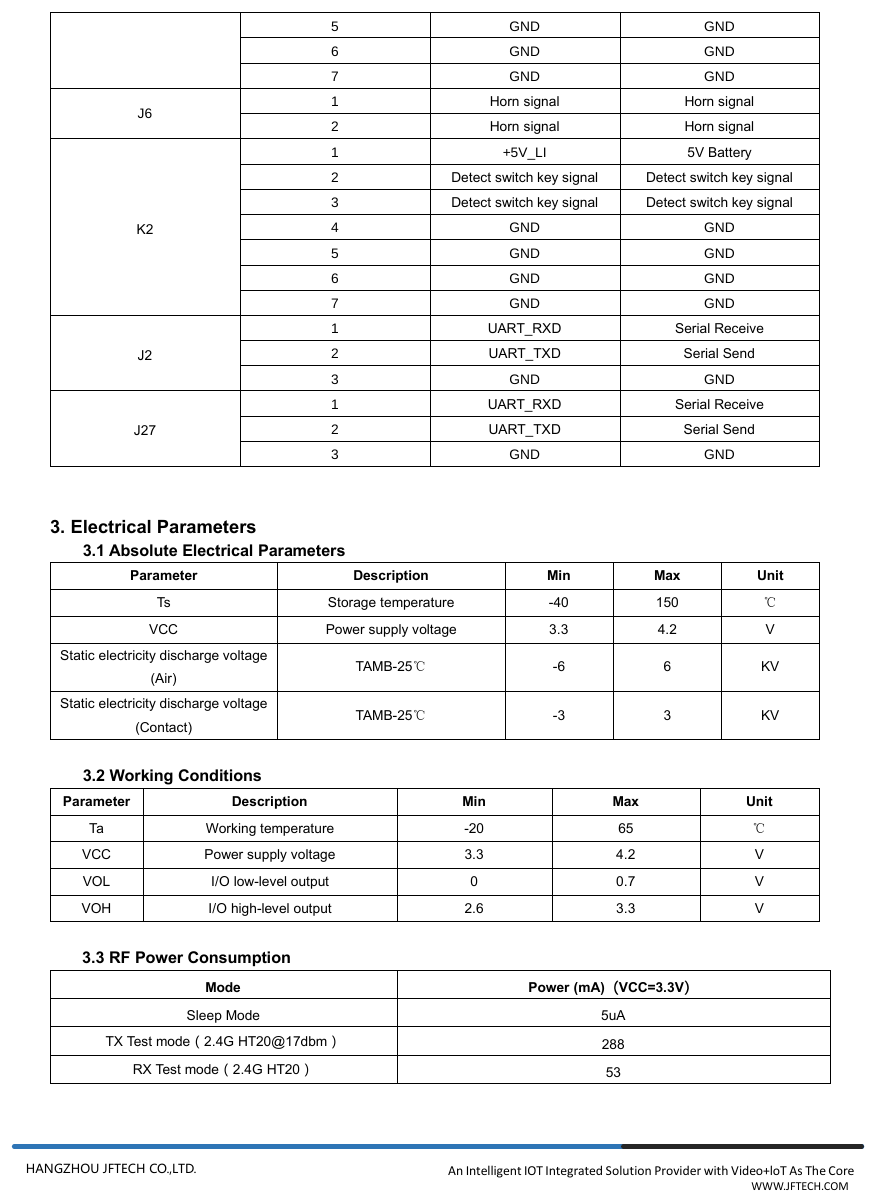

- LPG-G4-D-Y3-pinout-2.png (pinout, 124 KB)

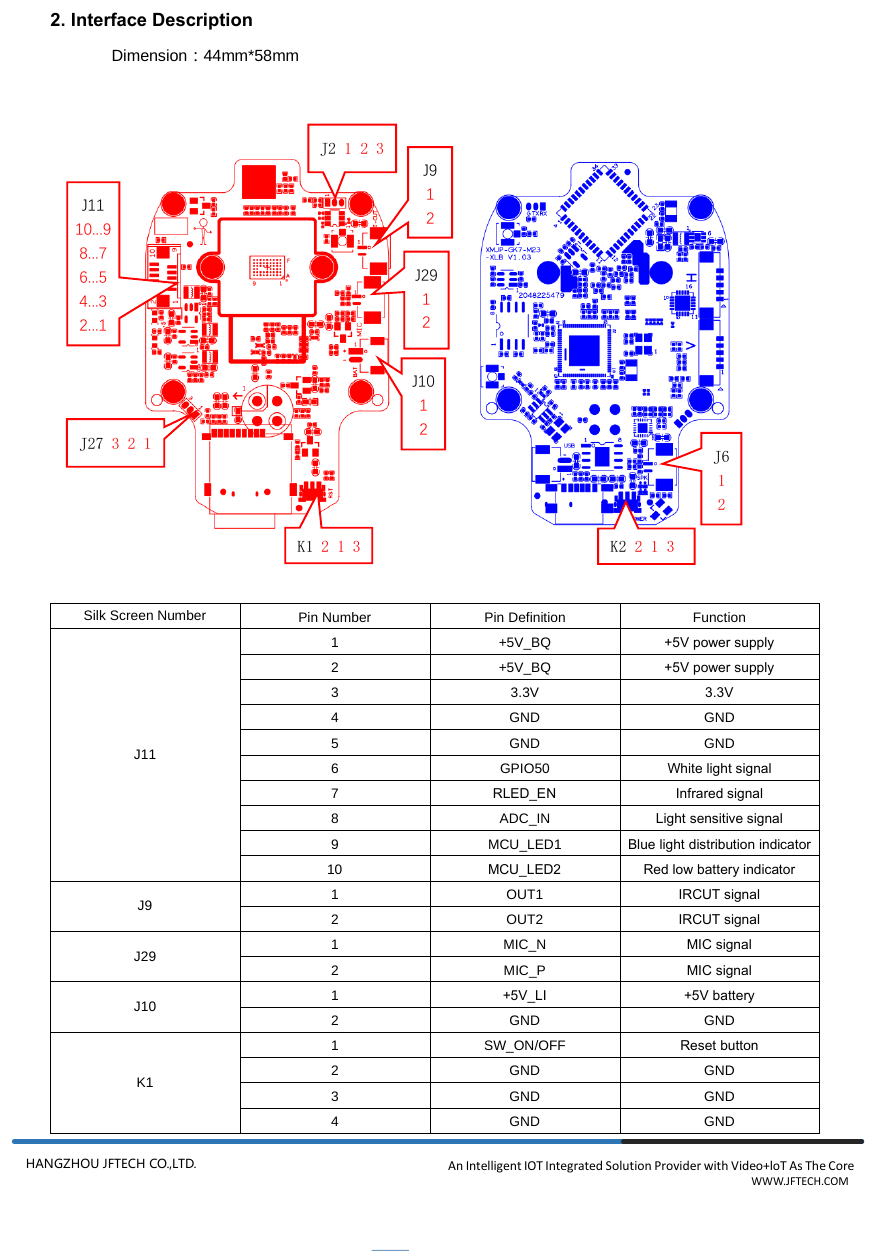

- LPG-G4-D-Y3-pinout-1.png (pinout, 180 KB)
- Parameters-for-LPG-G4-D-Y3.pdf (document, 564 KB)
