LPG-R4-4GEQ
AOV Camera Module
- Maker:
- Xiongmai
- SoC:
- RV1106G2
- Device IDs:
- 000A29TX
- Listed:
- 2025
JFTech
4MP AOV 4G AI-ISP Bullet&PT Camera Module
LPG-R4-4GEQ is a 4MP AOV AI-ISP black light 4G battery bullet&PT camera module developed by our company, It supports 1 frame recording in 1 second (AOV state) + full frame rate recording (wake-up state). 4G network connection, supporting national standards and some Southeast Asian 4G standards and frequency bands (specific reference to the frequency band support list), lithium battery power supply, can monitor two different areas at the same time, mainly used in high-definition video surveillance cameras.
| Model | LPG-R4-4GEQ |
|---|---|
| System Structure | dual-core 32-bit DSP,pure hard compression ,watch dog |
| Sensor | 2*1/2.9" Low illumination CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Day&Night | Support AI-ISP full-color night vision |
| Image Output | Main stream: 1920*2160@12fps ; Sub-code stream：800*896@12fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | 1 x 4G interface, support 4G CAT1 network connection |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Motor Interface | 1* horizontal motor interface, 1*vertical motor interface |
| Storage Interface | 1*TF card storage interface |
| Reset Interface | 1*reset interface |
| Business Functions | AI-ISP full-color night vision; Support 1FPS recording (AOV state) + full frame rate recording (wake-up state) |
| Storage Mode | Local TF card, up to 512G; cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Smart Alarm | Supporting human detection support to customizing other intelligent functions |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | 4.2V lithium battery power supply |
| Dimension | 52mm*66.5mm+38mm*38mm |

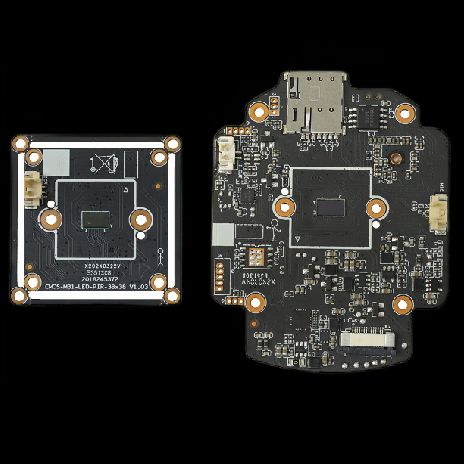

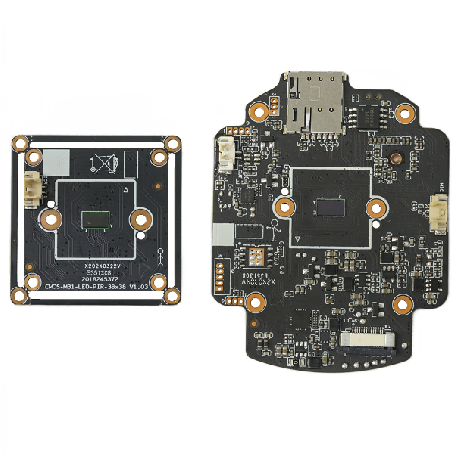

Photos
Files

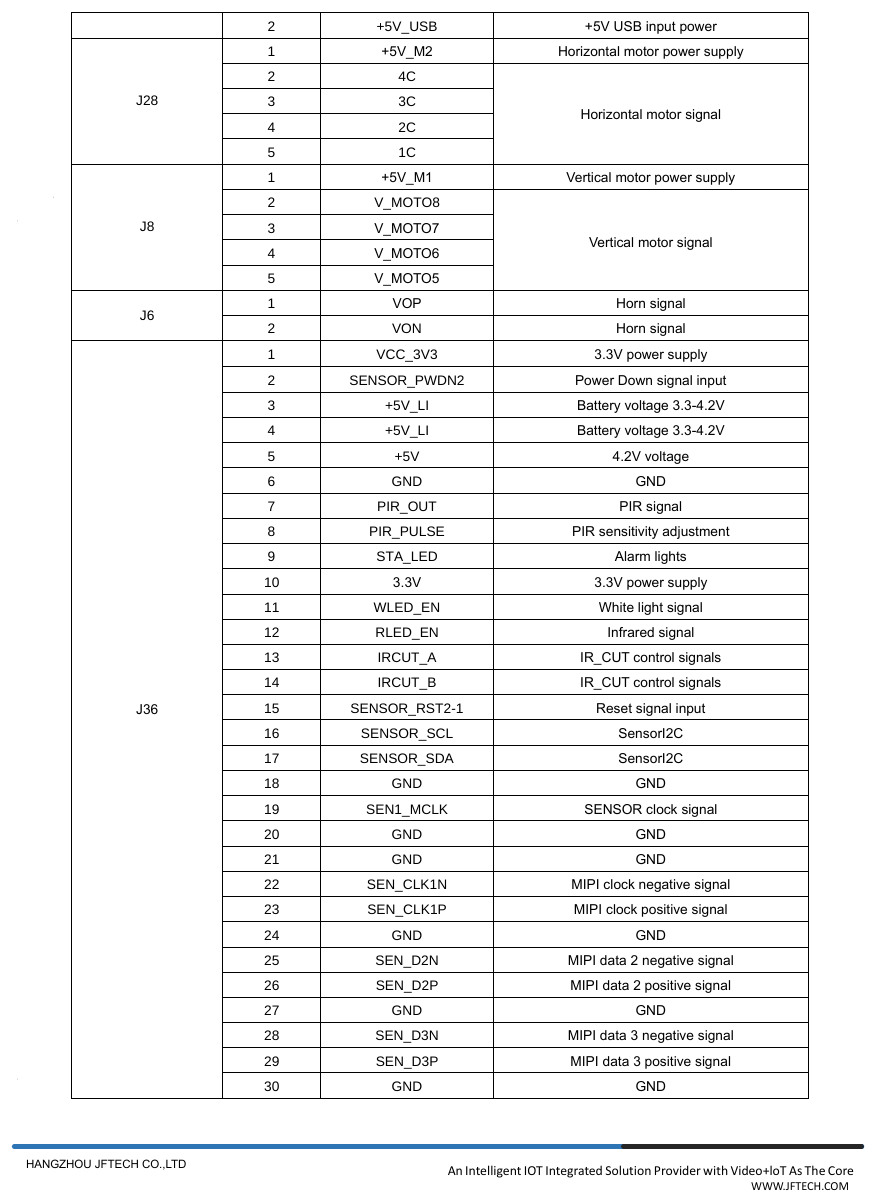

- LPG-R4-4GEQ-pinout-2.png (pinout, 135 KB)

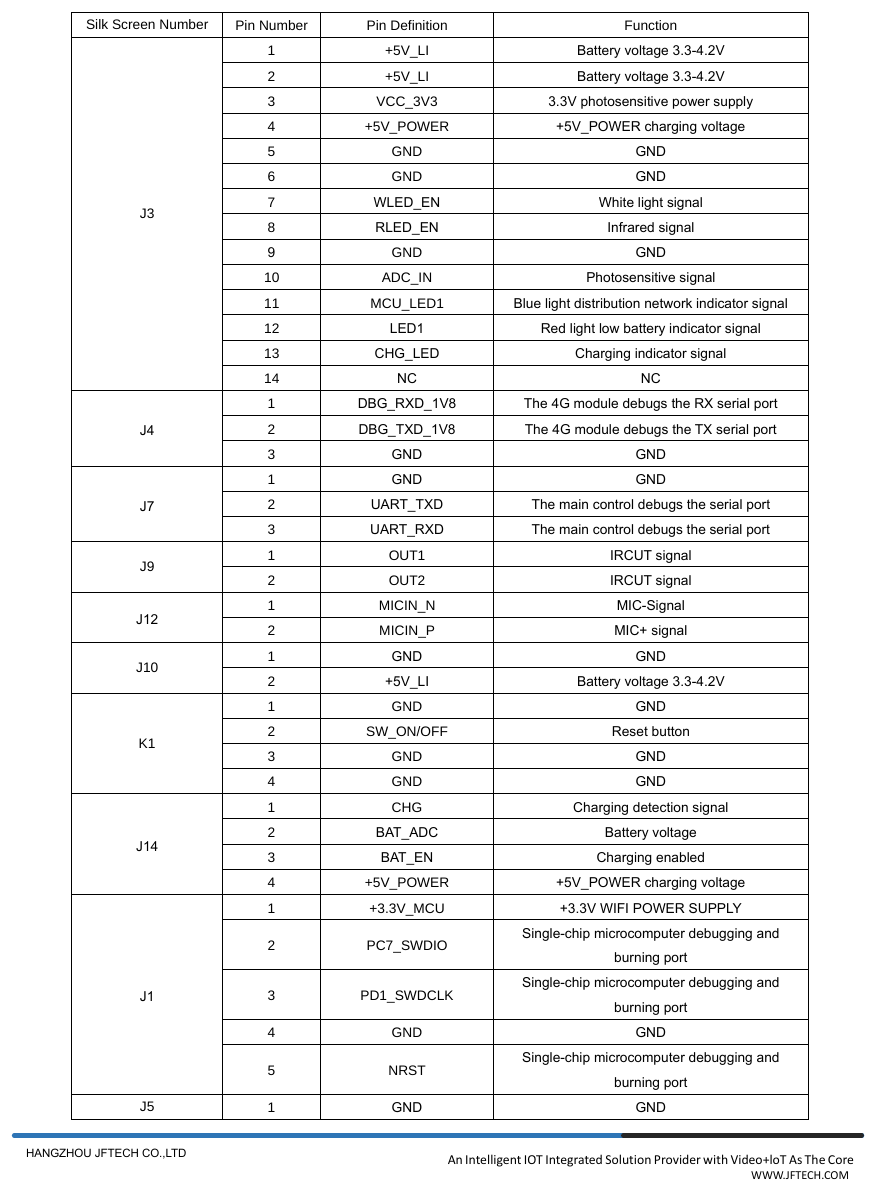

- LPG-R4-4GEQ-pinout-1.png (pinout, 149 KB)
- Parameters-for-LPG-R4-4GEQ.pdf (document, 929 KB)
