LPG-R8-4GEQ
AOV Camera Module
- Maker:
- Xiongmai
- SoC:
- RV1103
- Device IDs:
- 000A79X1
- Listed:
- 2025
JFTech
8MP AOV 4G AI-ISP Bullet&PT Camera Module
LPG-R8-4GEQ is a 8MP AOV AI-ISP black light 4G battery bullet&PT camera module developed by our company, It supports 1 frame recording in 1 second (AOV state) + full frame rate recording (wake-up state). 4G network connection, supporting national standards and some Southeast Asian 4G standards and frequency bands , lithium battery power supply, can monitor two different areas at the same time, mainly used in high-definition video surveillance cameras.
| Model | LPG-R8-4GEQ |
|---|---|
| System Structure | dual-core 32-bit DSP,pure hard compression ,watch dog |
| Sensor | 2*1/1.8" Low illumination CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Day&Night | Support AI-ISP full-color night vision |
| Image Output | Main stream: 2560*2880@12fps ; Sub-code stream：640*720@12fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | 1 x 4G interface, support 4G CAT1 network connection |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Motor Interface | 1* horizontal motor interface, 1*vertical motor interface |
| Storage Interface | 1*TF card storage interface |
| Reset Interface | 1*reset interface |
| Business Functions | AI-ISP full-color night vision; Support 1FPS recording (AOV state) + full frame rate recording (wake-up state) |
| Storage Mode | Local TF card, up to 512G; cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Smart Alarm | Supporting human detection support to customizing other intelligent functions |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | 4.2V lithium battery power supply |
| Dimension | 52mm*66mm+38mm*38mm |

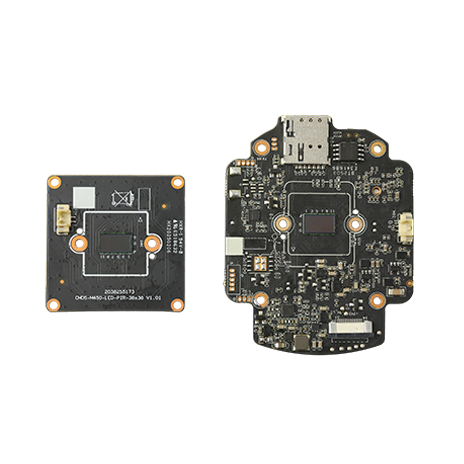

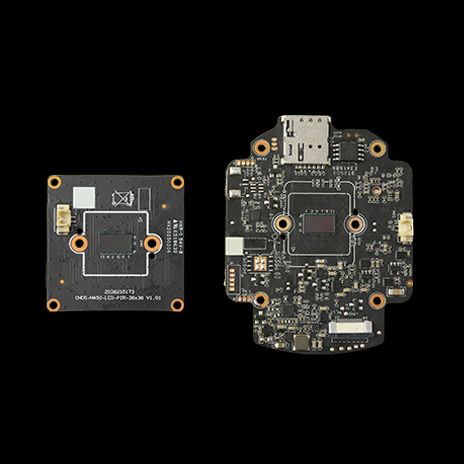

Photos
Files

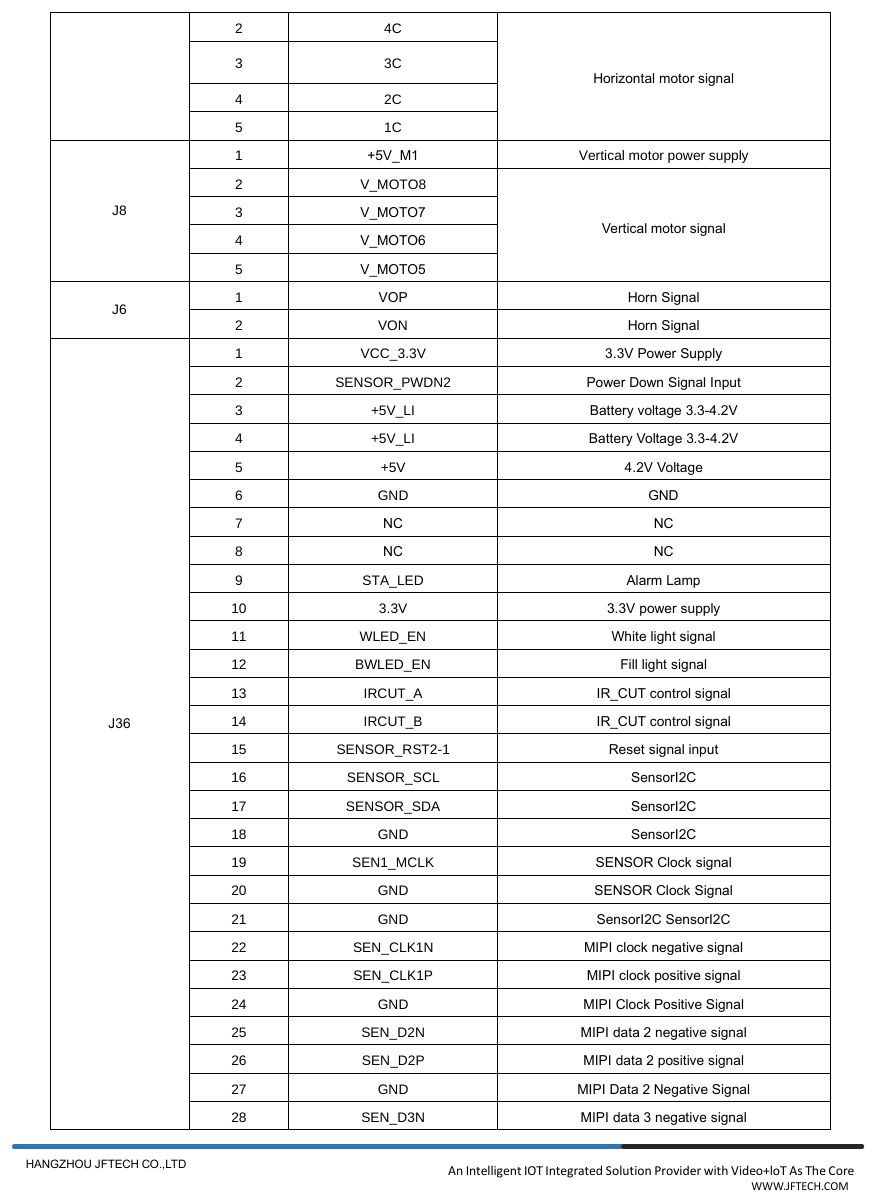

- LPG-R8-4GEQ-pinout-2.png (pinout, 125 KB)

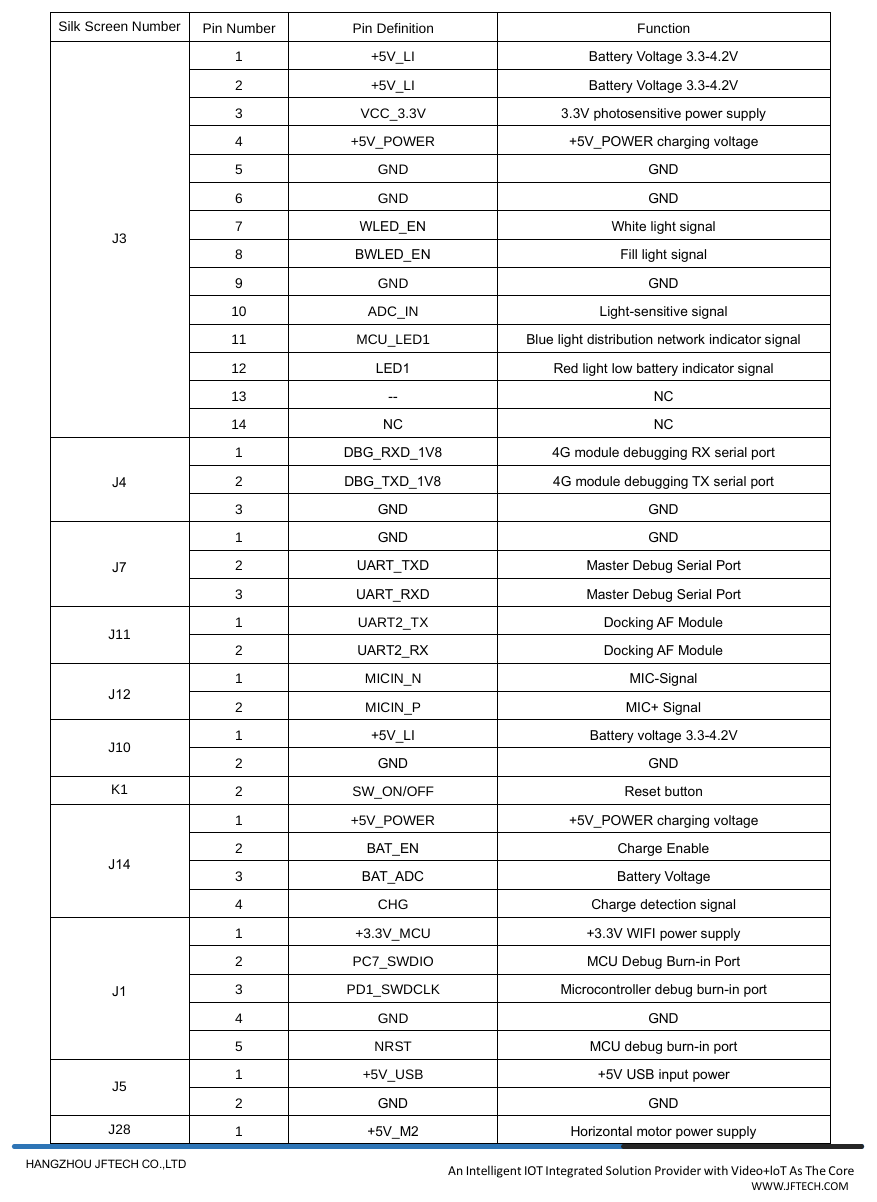

- LPG-R8-4GEQ-pinout-1.png (pinout, 144 KB)
- Parameters-for-LPG-R8-4GEQ.pdf (document, 898 KB)
