LPG-X3-4GQUS
3MP 4G Solar Dome Camera module（American version） · consumer module
- Maker:
- Xiongmai
- Sensor:
- SC3335
- Listed:
- 2022
Xiongmai
3MP 4G Solar Dome Camera module（American version）
Features
- 3MP resolution, clear and delicate image
- Support PIR human infrared sensing and microwave dual detection
- Support app remote wake-up
- DC5V power supply ；Support solar power supply duration (need external solar power panel)
- Support American 4G network connection
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265X video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support mobile phone monitoring(iOS, Android)
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | LPG-X3-4GQUS |
|---|---|
| System structure | dual-core 32-bit DSP（XM650）, pure hard compression ,watch dog |
| Sensor | 3MP 1/2.8"SC3335 CMOS sensor |
| Min. illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Video compression | H.265X coding,support dual stream,AVI;0.1M~8Mpbs variable |
| Image output | Main stream: 2288*1288@12fps; sub-stream: 800*448@12fps |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | N/A |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
| Extension interface | N/A |
| Singal interface | one IR-CUT interface |
| PTZ interface | One horizontal motor interface, one vertical electrical interface |
| Alarm I/O | N/A |
| Wireless interface | Support American 4G network connection |
| Reset interface | Support |
| Storage mode | Local TF card storage, up to 128G; cloud storage |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | Support human detection and customizing other intelligent functions |
| Other function | Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC5V |
| Dimension | 38mm*38mm+47mm*39mm |
Photos
Files

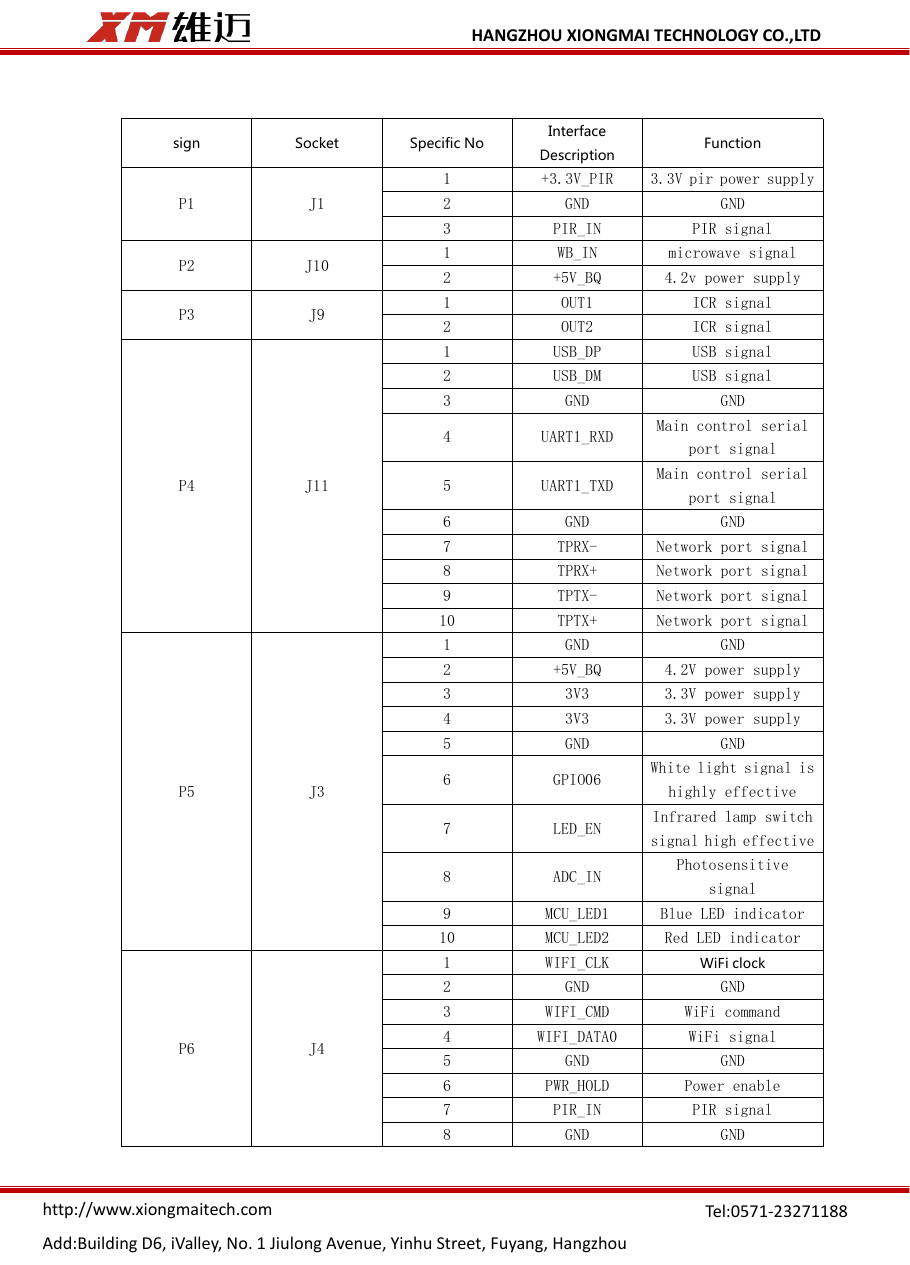

- LPG-X3-4GQUS-pinout-1.png (pinout, 129 KB)

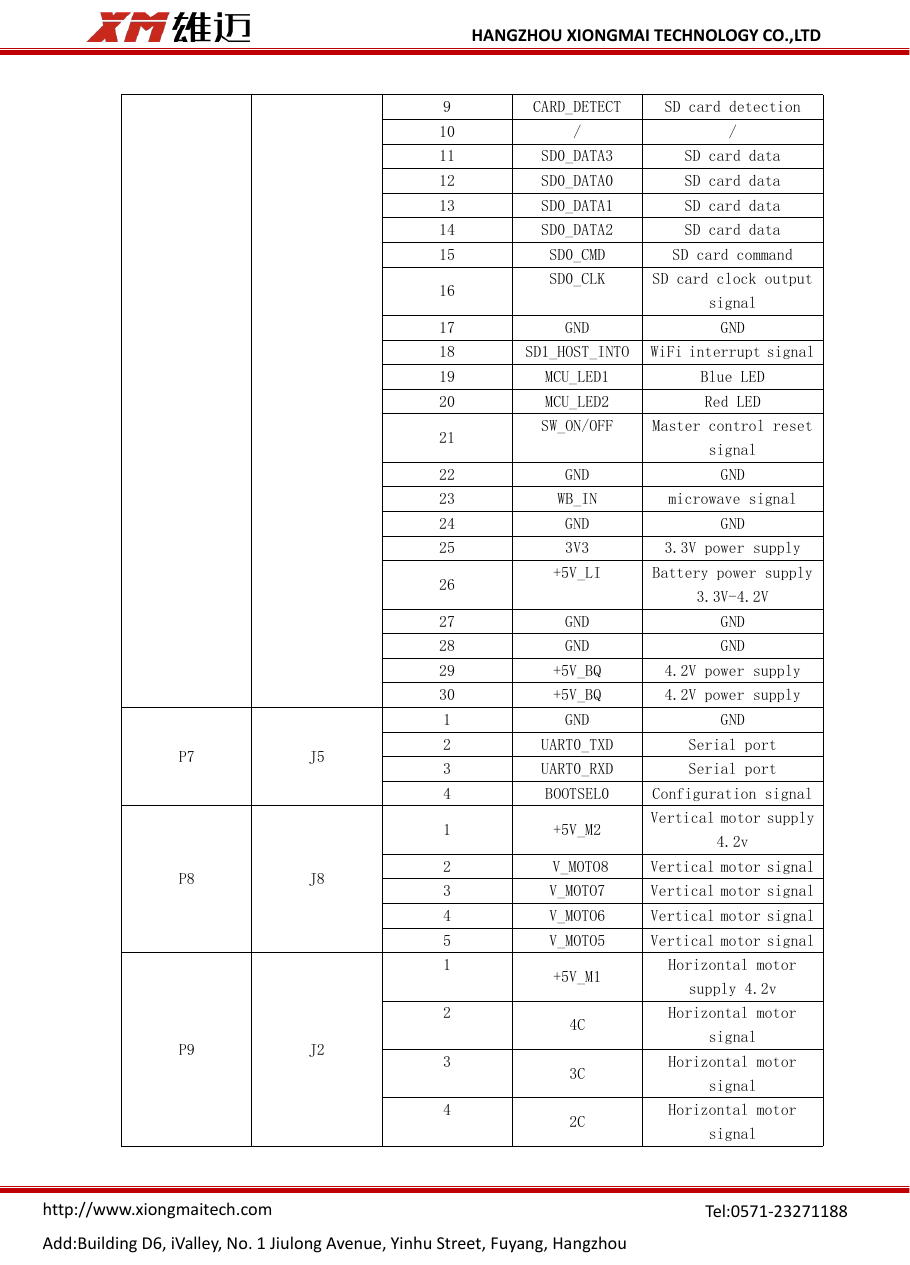

- LPG-X3-4GQUS-pinout-2.png (pinout, 126 KB)

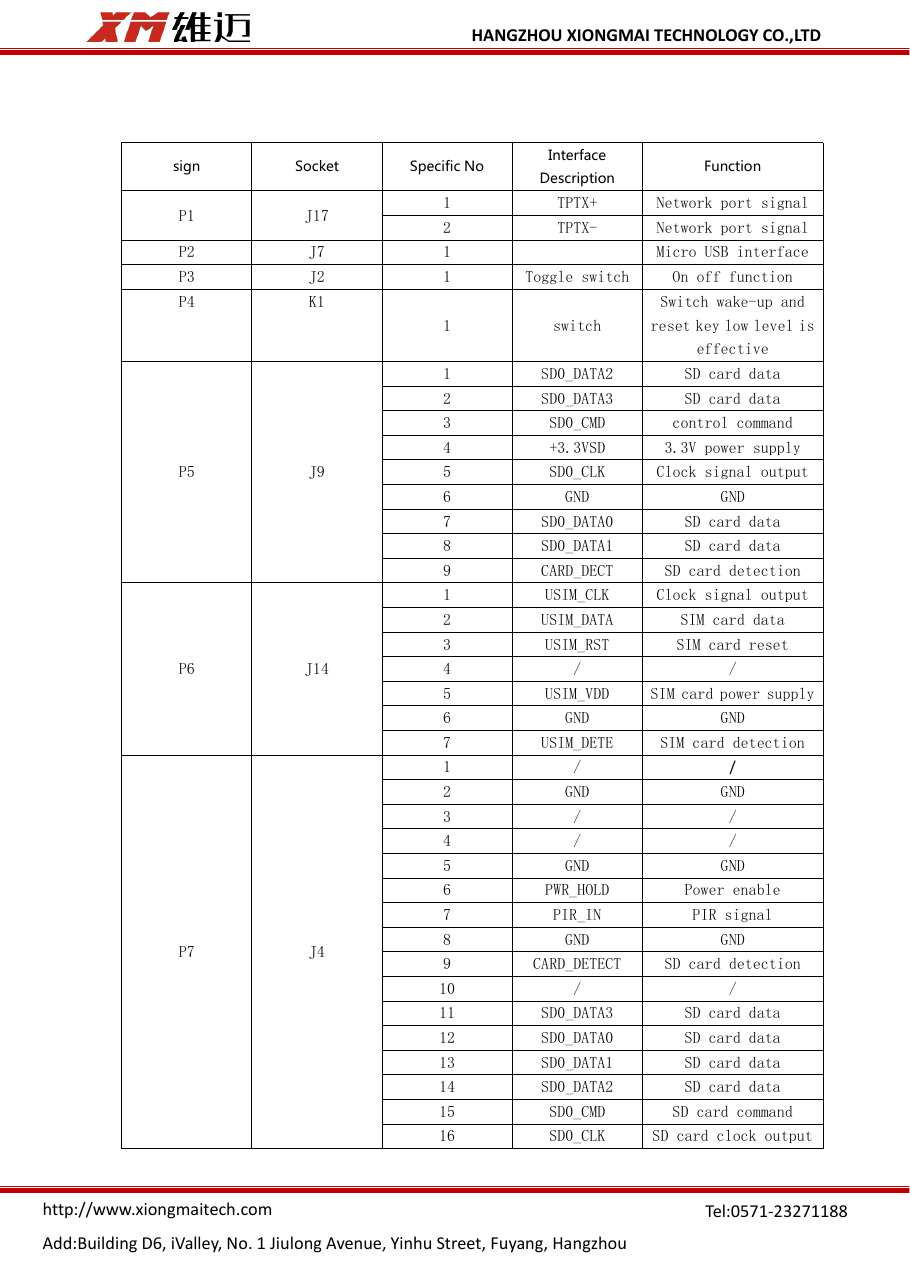

- LPG-X3-4GQUS-pinout-3.png (pinout, 125 KB)

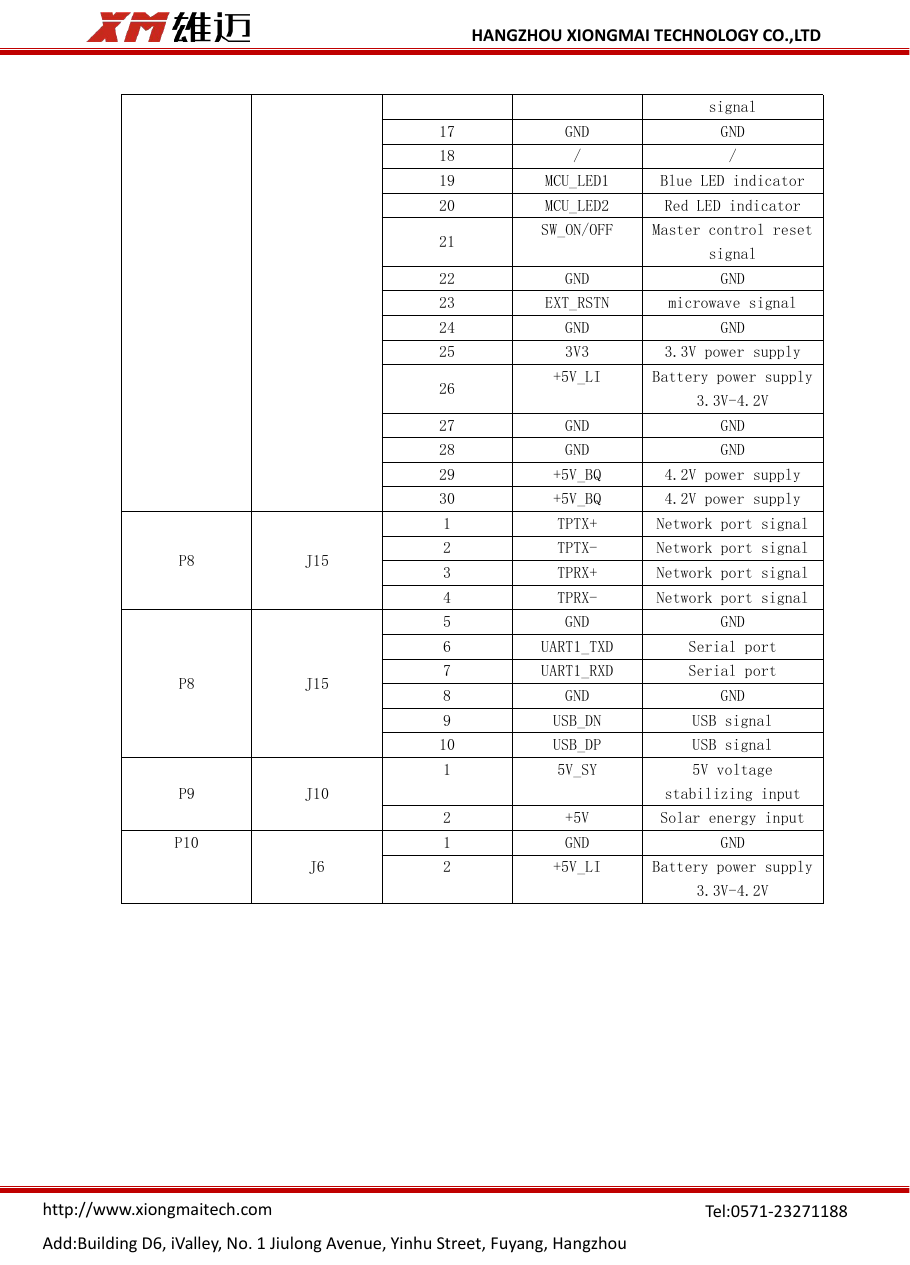

- LPG-X3-4GQUS-pinout-4.png (pinout, 105 KB)
- LPG-X3-4GQUS-interface-en.pdf (document, 394 KB)
- LPG-X3-4GQUS-interface-zh.pdf (document, 385 KB)
- LPG-X3-4GQUS-parameters.pdf (document, 820 KB)
