LPG-X4-4GEQ
4G Camera Module
- Maker:
- Xiongmai
- SoC:
- XM530V200
- Device IDs:
- 000807DC
- Listed:
- 2024
JFTech
4MP 4G Battery Bullet&PTCamera Module
LPG-X4-4GEQ is a 4MP 4G battery bullet&PT camera module developed by our company, 4G network connection, supporting national standards and some Southeast Asian 4G standards , lithium battery power supply, can monitor two different areas at the same time, mainly used in high-definition video surveillance cameras.
| Model | LPG-X4-4GEQ |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| Sensor | 2*1/3" Low illumination CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Day&Night | Support IR-CUT |
| Image Output | Main stream: 1920*2160@12fps; Sub-code stream:640*720@12fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | Support 4G CAT1 network |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Motor Interface | 1* horizontal motor interface, 1*vertical motor interface |
| Storage Interface | 1*TF card storage interface |
| Reset Interface | 1*reset interface |
| Business Functions | Support cell phone remote monitoring; alarm message push; MJPEG capture |
| ONVIF | support |
| Storage Mode | Local TF card, up to 128G; cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Smart Alarm | Supporting PIR detection , support to customizing other intelligent functions |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | 4.2V lithium battery power supply |
| Dimension | 44mm*58mm+38mm*38mm |

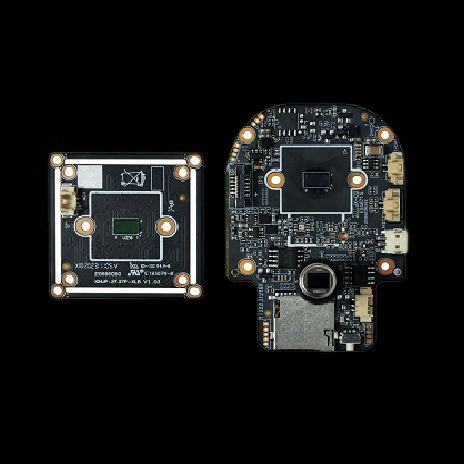

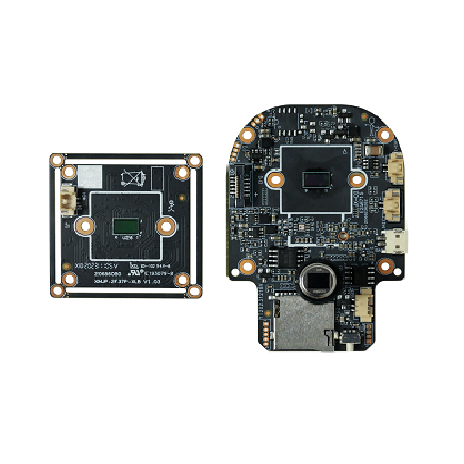

Photos
Files

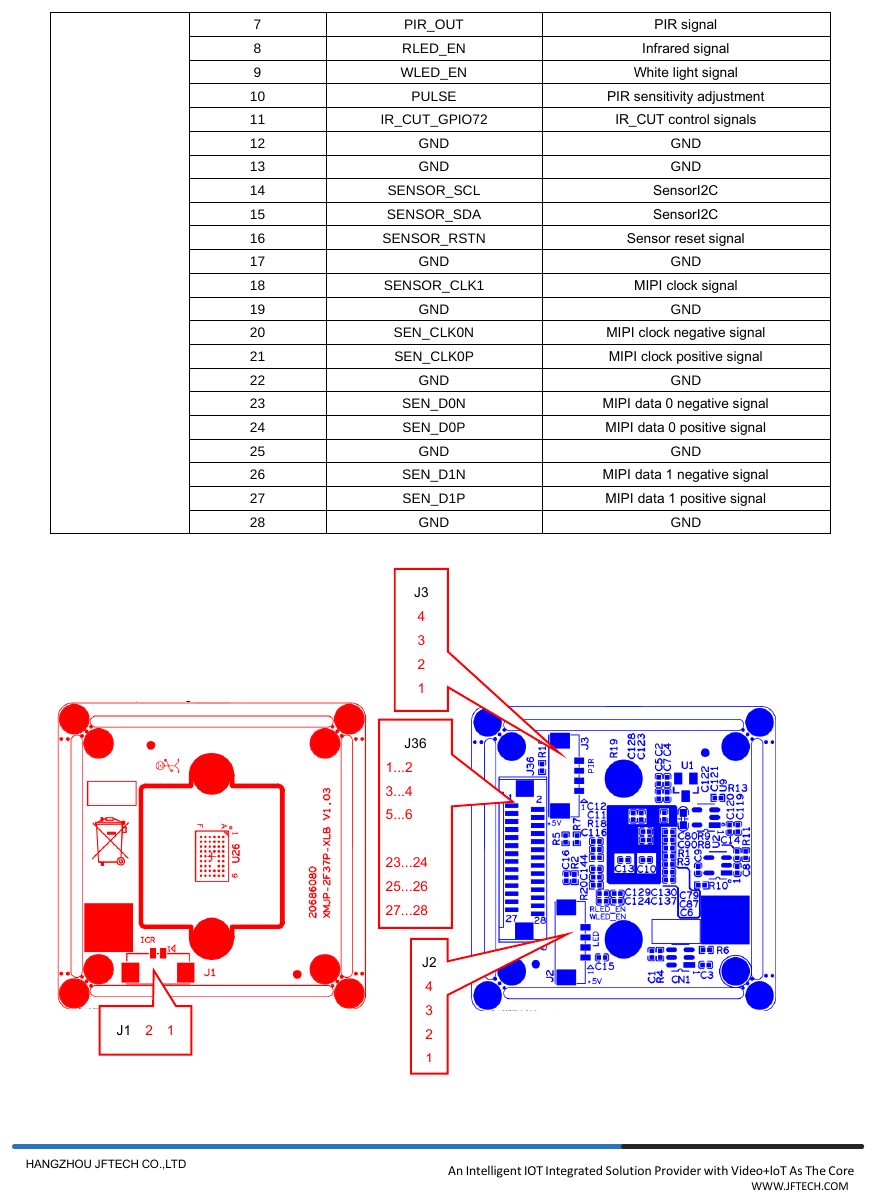

- LPG-X4-4GEQ-pinout-3.png (pinout, 147 KB)

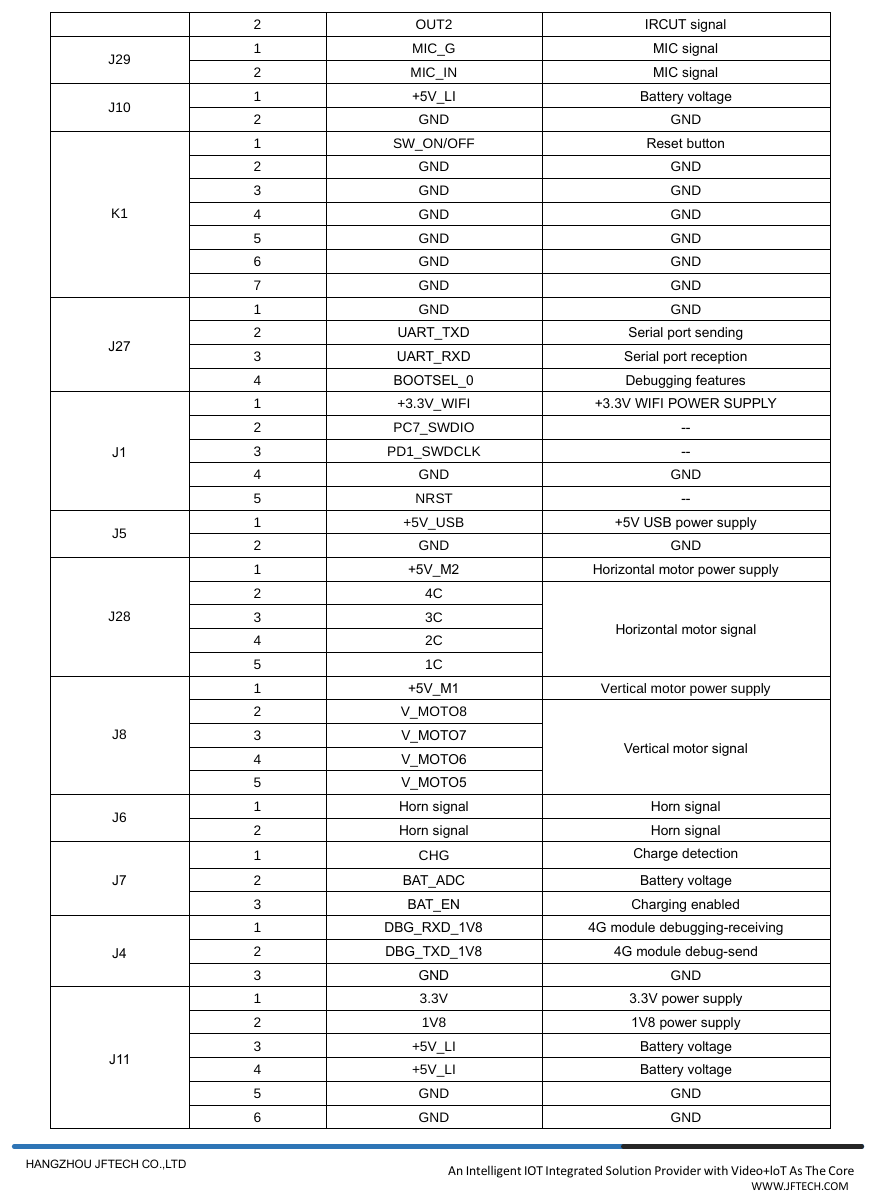

- LPG-X4-4GEQ-pinout-2.png (pinout, 118 KB)

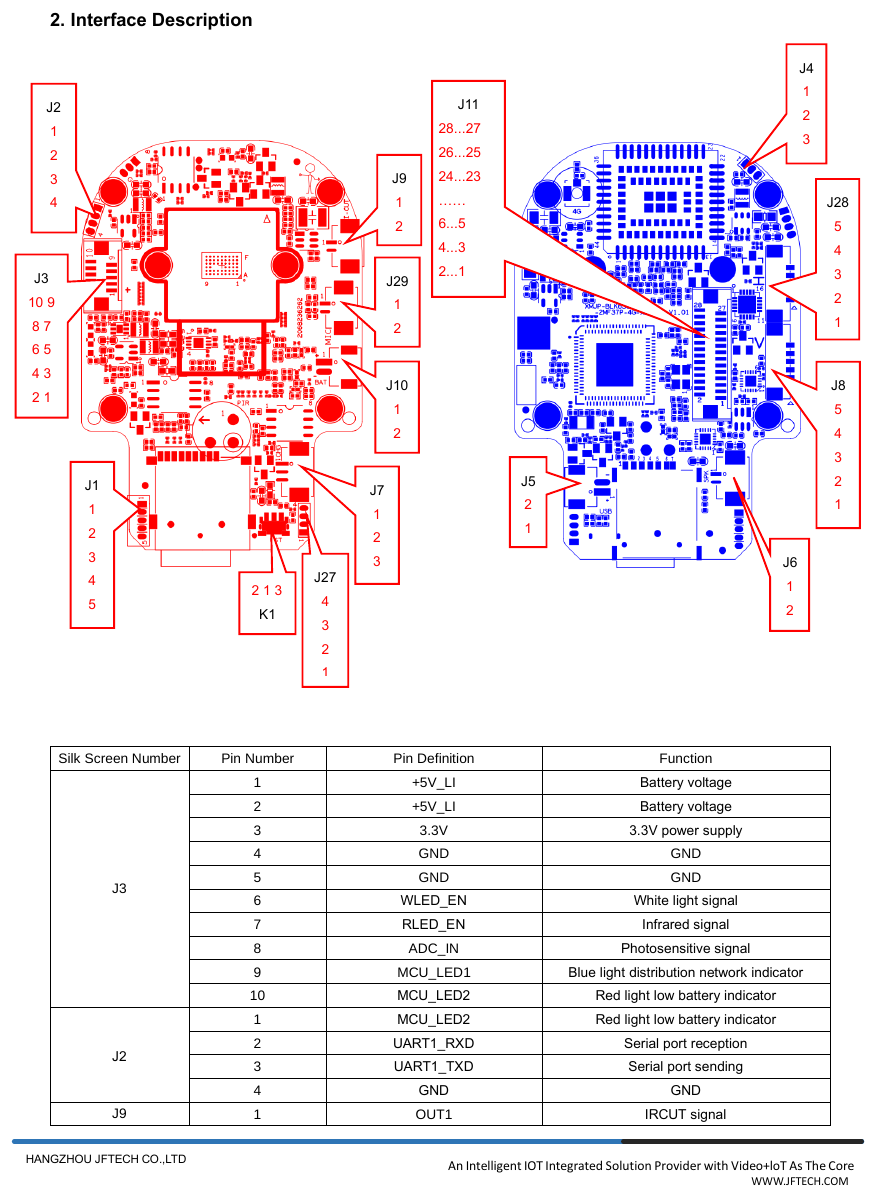

- LPG-X4-4GEQ-pinout-1.png (pinout, 209 KB)
- Parameters-for-LPG-X4-4GEQ.pdf (document, 778 KB)
