NBD8008RA-PWS
H.265 RA Series NVR WiFi Board · WiFi Kit
- Maker:
- Xiongmai
- SoC:
- HI3536DV100
- Device IDs:
- 0000020F
- Listed:
- 2018
Xiongmai
H.265 RA Series NVR WiFi Board
Features
- supports one key wireless pair code and easy to operate
- Signal stability，anti-interference
- Support H.265+ coded front-end camera
- Support wireless routing repeaters, enhance signal, increase the distance, break the scene restrictions
- Support VGA HDMI output
- Support ONVIF;access third party
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)
| Model | NBD8004RA-PWS / NBD8008RA-PWS |
|---|---|
| System | Main processor / Hi3536D |
| Operating System | Embedded Linux |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | Operator interface / 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4 / 1/4/9 |
| Video | Video input (IP) / 4*1080P / 4*5M / 8*1080P |
| Access bandwidth | 24Mbps / 48Mbps |
| Forwarding bandwidth | 24Mbps / 48Mbps |
| Video compression | H.264 |
| Display quality | Max:1080P |
| Playback quality | 1080P / 1080P |
| Decode | 4*1080P / 1*4M/2*1080P |
| VR | unsupport |
| Motion detection | Support(depend on camera) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| record &play back | Recording mode / Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 4*1080P / 1*4M/2*1080P |
| Search mode | Search by Time/Calendar/Event/Channel |
| Record storage | HDD、Network |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
| External interface | Video output / 1ch VGA，1ch HDMI HD output |
| Audio I/O | 0/0 |
| Alarm I/O | 0/0 |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI |
| USB interface | 2*USB2.0 ports( Reserved 1 pre interface) |
| HDD | 1*SATA(Up to 8TB for each disk) |
| ESATA | No |
| Serial interface | No |
| Other | ONVIF / No |
| Power supply | 12V/2A |
| Power Consumption | <10W(Without HDD) |
| Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
| Dimension | 123mm*70mm |
| Weight | A total of about 72g |
Photos
Files

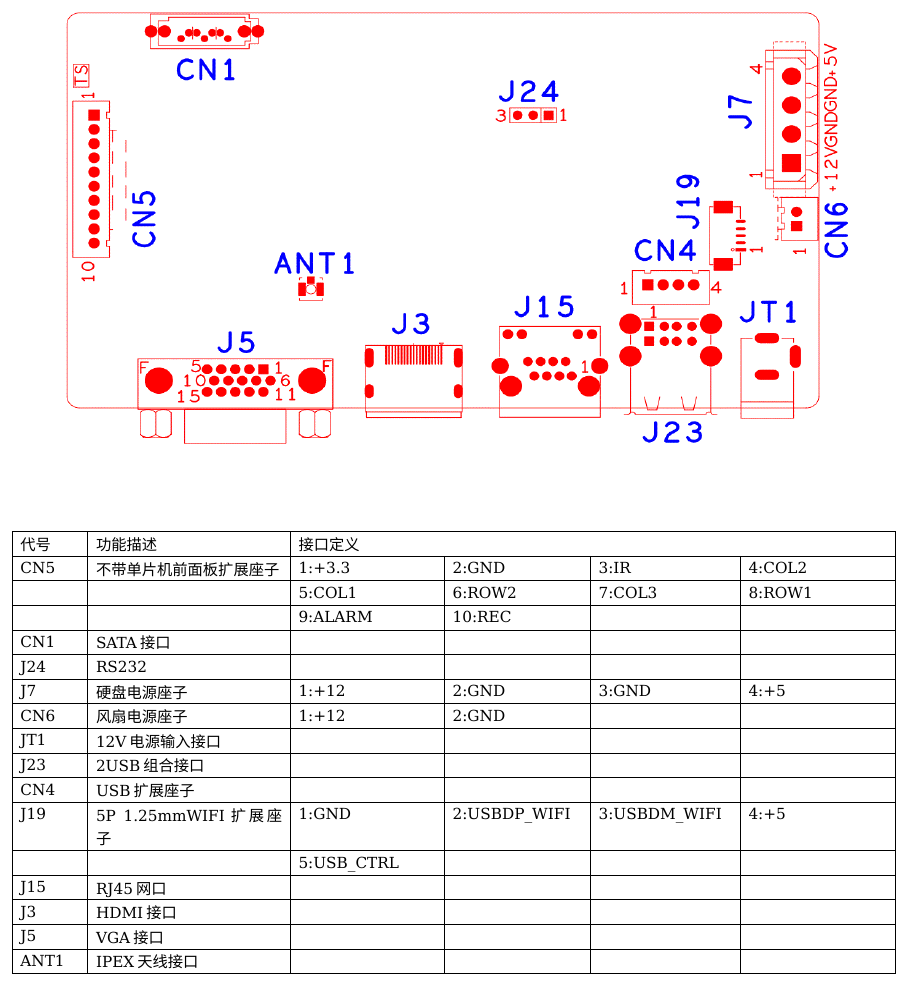

- NBD8008RA-PWS-pinout-1.png (pinout, 107 KB)
- NBD8008RA-PWS-datasheet.pdf (document, 254 KB)
- NBD8008RA-PWS-interface-zh.docx (document, 48 KB)
- NBD8008RA-PWS-interface-zh.pdf (document, 101 KB)

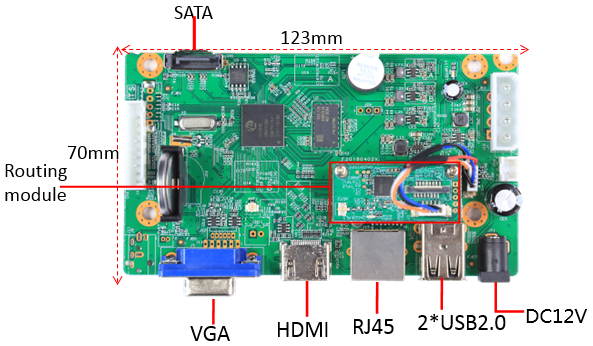

- interface-1.png (pinout, 290 KB)
