NBD80N16RA-KLY
NVR Board
- Maker:
- Xiongmai
- Device IDs:
- N95C5261
- Listed:
- 2026
JFTech
16ch 4K face recognition NVR board
The NBD80N16RA-KLY is a 16-channel 4K face recognition NVR motherboard. It integrates IPC access, storage, control, and intelligent analysis into a single platform, delivering precise facial analysis including face comparison and retrieval. The board supports real-time facial attribute extraction, face import via USB drive/camera/recording, storage for up to 2000 facial photos, and configurable allow/block lists. It is compatible with various intelligent front-end devices such as human shape detection and face detection cameras, supports H.265 AI encoding, and is primarily designed for use in face recognition network video recorders (NVRs).
| Main processor | NT98332 |
|---|---|
| Operating System | Embedded Linux |
| Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/2/4/9/16 |
| Video input (IP) | 16*4K(Maximum Supported Resolution up to 12MP) |
| Video compression | H.265AI/H.265+(compatible H.265/H.264) |
| Display quality | Max:4K |
| Playback quality | 12M/4K/5M/4M/3M/1080P |
| Decode | 12M(1)/4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2) |
| VR | Unsupport |
| Face recognition | Support facial recognition, support storing 2000 facial photos, support importing faces from USB flash drives/cameras/videos, support setting up blacklists and whitelists |
| Audio compression | G.711A |
| Intercom | Support |
| Recording mode | Alarm>Dynamic Detection>Timing |
| Local payback | 12M(1)/4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2) |
| Search mode | Search by Time/Calendar/Event/Channel/Face/Human/vehicle |
| Record storage | HDD、Network、Cloud |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
| Video output | 1ch VGA,1ch HDMI HD output |
| Audio I/O | 1/1(3.5mm Audio output) |
| Alarm I/O | 0/0 |
| Network interface | 1*RJ45 10M/100M/1000M Adaptive Ethernet port |
| USB interface | 2*USB2.0 ports |
| HDD | 2* SATA(Up to 14TB for each disk) |
| ONVIF | Support |
| Power supply | 12V/4A |
| Power Consumption | <10W(Without HDD) |
| Work environment | Temperature:0℃-＋55℃,Humidity:10%－90%RH,Atm:86kpa－106kp |
| Dimension | 118mm*73mm |
| Weight | 63g |

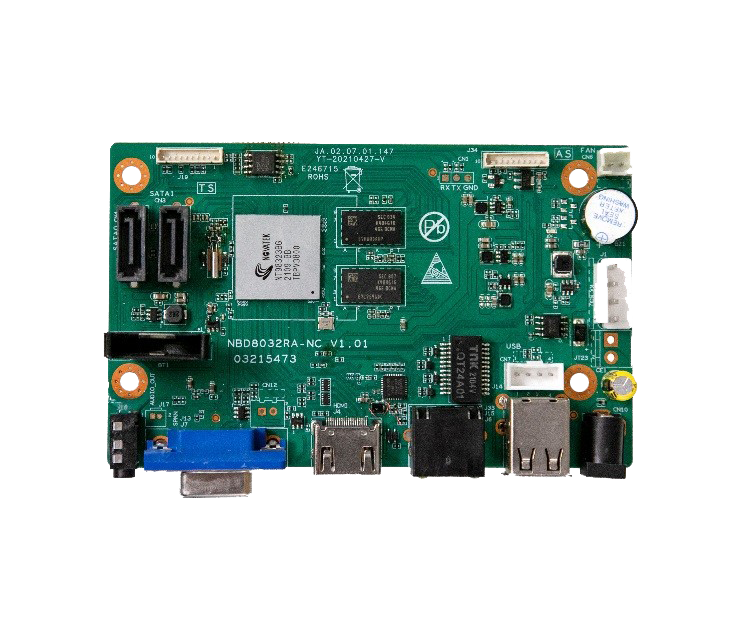

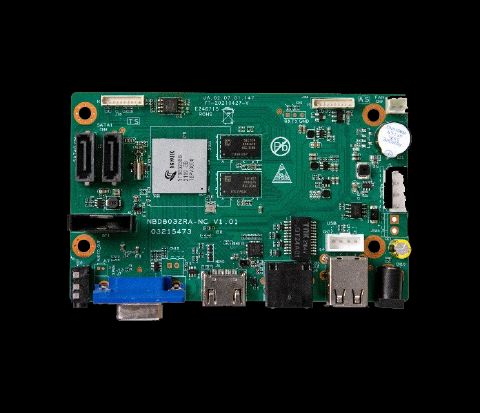

Photos
Files

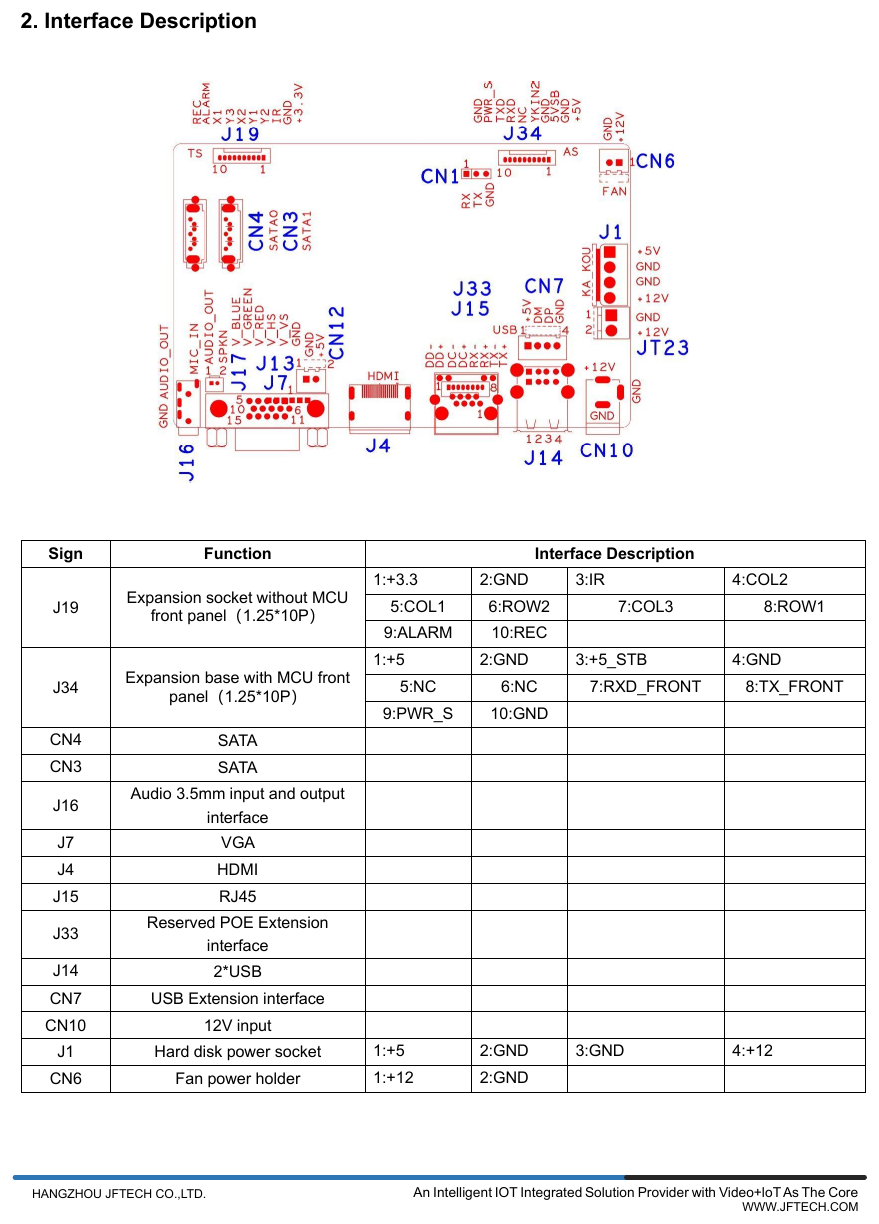

- NBD80N16RA-KLY-pinout-1.png (pinout, 277 KB)
- Parameters-for-NBD80N16RA-KLY.pdf (document, 441 KB)
