NBD80N32RA-KL

32ch 4K H.265 NVR Board · NVR Board

Xiongmai

32ch 4K H.265 NVR Board

Support intelligent front-end devices with human and face detection
Support HDMI, VGA output, 4K HD output
Support ONVIF, connects third-party devices
Works with web client, CMS, MYEYE central management platform; SDK available
Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
Powerful network services (DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.)
Remote access with built-in domain name service (ARSP), one-click remote monitoring
Support GB28181 for third-party platforms.

Specifications
Model	NBD80N32RA-KL
System	Main processor / NT98323
Operating system	Embedded Linux operating system
System resources	Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-user network operation, USB backup
Interface	User interface / 16-bit true-color graphical menu, mouse operation
Display	1/2/4/6/8/9/16/25/32 split screen
Video	Video input (IP) / 32*4K
Video decoding	H.265AI/H.265+ (compatible with H.265/H.264)
Monitoring quality	Max: 4K
Playback quality	4K/5M/4M/3M/1080P
VR	Not supported
Human and face detection	Supported (requires Xiongmai front-end cameras)
Audio	Standard / G.711A
Intercom	Supported
Playback	Recording mode / manual > alarm > motion detection > schedule
Local playback	2ch4K@12fps/3ch5M@20fps/4ch4M@20fps/4ch3M@20fps/6ch1080P@25fps
Recording search	Search by time, calendar, event, channel, face
Video storage	HDD, network, cloud storage
Backup method	Network backup, USB hard drive, USB burner, SATA burner
Interface	Video output / 1ch HDMI HD output, 1ch VGA output
Audio I/O	1/1 (3.5mm jack)
Alarm I/O	0/0
Network interface	1*RJ45 10M/100M/1000M adaptive Ethernet port
USB port	2*USB2.0 ports
HDD interface	2 SATA (up to 14TB per disk)
ESATA	None
Serial interface	None
ONVIF	Supported
Power supply	12V/4A / Power consumption
Operating environment	Temperature: 0℃~+55℃, humidity: 10%~90% RH, atmospheric pressure: 86kPa~106kPa

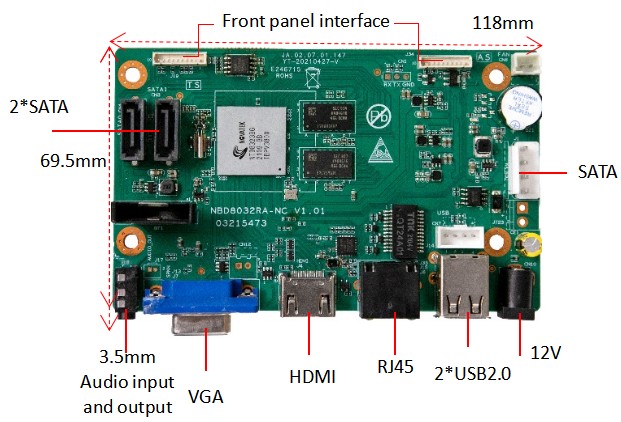

Dimensions	118mm*69.5mm
Weight	Approx. 63g
