NBD80X08RA-QWG
8ch 3.0MP H.265 450Meters WiFi NVR Board · WiFi Kit
- Maker:
- Xiongmai
- Device IDs:
- 0000023E
- Listed:
- 2021
Xiongmai
8ch 3.0MP H.265 450Meters WiFi NVR Board
Features
- Support access of multiple XM smart front-end devices with human detection and face detection function.
- Support HDMI /VGA HD output
- Support ONVIF;access third party
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)
- Support GB28181 protocol access tothird-party platforms.
| Model | NBD80X08RA-QWG |
|---|---|
| System | Main processor / XM8536D |
| Operating System | Embedded Linux |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
| Interface | Operator interface / 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4/6/8/9 |
| Video | Video input (IP) / 8*3M / 4*5M |
| Video compression | H.265AI/H.265+（ compatible withH.265/H.264） |
| Display quality | Max:1920*1080 |
| Playback quality | 5M / 3M |
| Decode | 8*3M / 4*5M |
| VR | unsupport |
| human shape / Face | Support(depend on camera) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| record &play back | Recording mode / Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 8*3M / 4*5M |
| Search mode | Search by Time/Calendar/Event/Channel/Face |
| Record storage | HDD、Network |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner |
| External interface | Video output / 1ch VGA，1ch HDMI HD output |
| Audio I/O | 1/1（3.5mm） |
| Alarm I/O | 0/0 |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+ 4/8ch WIFI |
| USB interface | 2*USB2.0 ports( Reserved 1 pre interface) |
| HDD | 1*SATA(Up to 14TB for each disk) |
| ESATA | No |
| Serial interface | No |
| Other | ONVIF / No |
| Power supply | 12V/2A |
| Power Consumption | <10W(Without HDD) |
| Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
| Dimension | 118mm*69.5mm |
| Weight | A total of about 7 4g |
Photos
Files

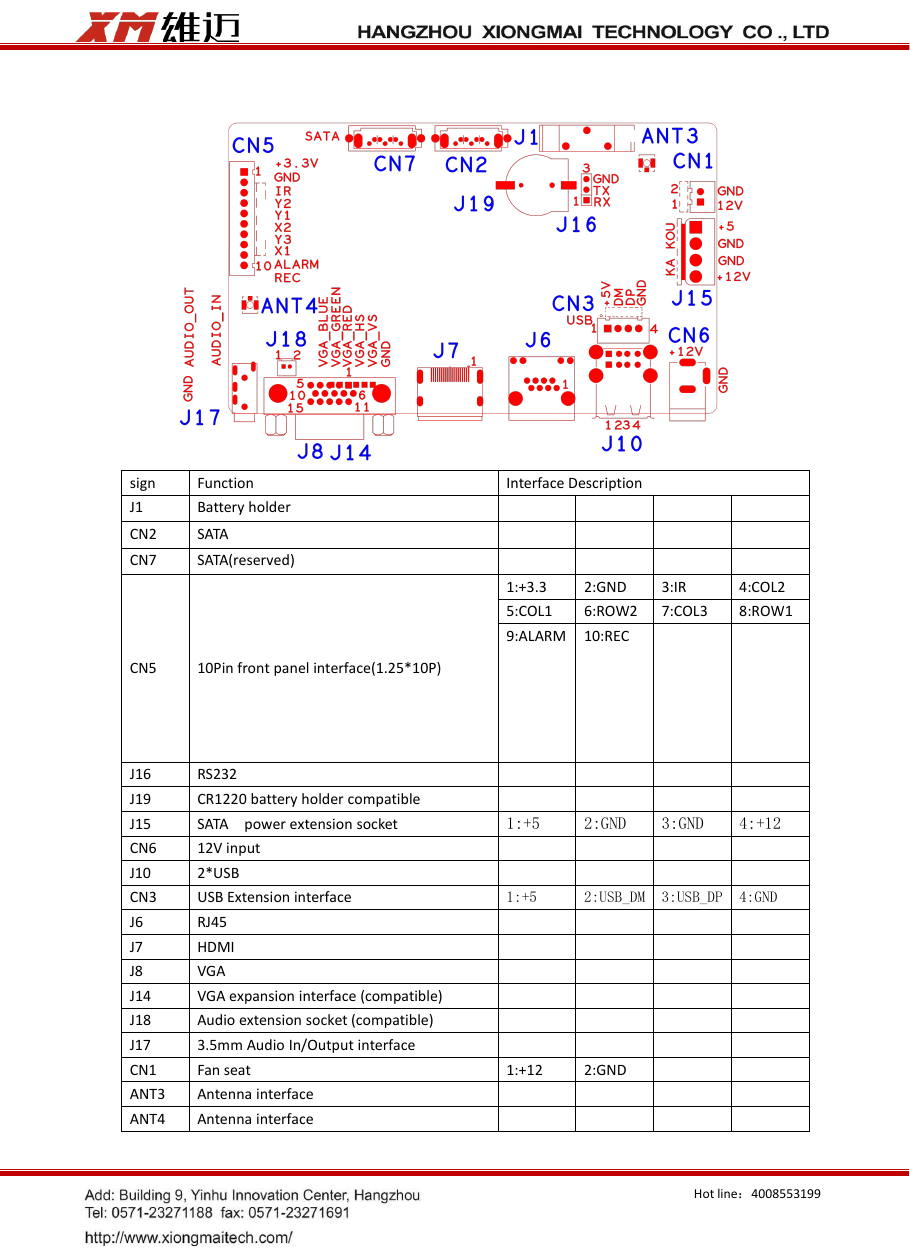

- NBD80X08RA-QWG-pinout-1.png (pinout, 190 KB)
- NBD80X08RA-QWG-datasheet.pdf (document, 1.7 MB)
- NBD80X08RA-QWG-interface-en.pdf (document, 1.4 MB)
- NBD80X08RA-QWG-interface-zh.pdf (document, 1.4 MB)

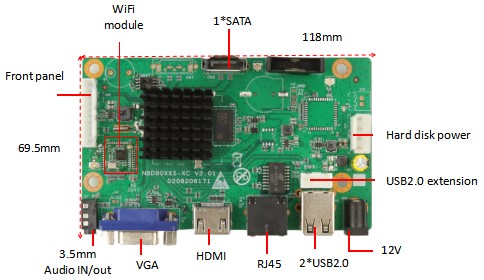

- interface-1.jpg (pinout, 38 KB)
