NBD88X09S-KL

9ch 4K H.265 NVR Board · NVR Board

Xiongmai

9ch 4K H.265 NVR Board

Support access of multiple XM smart front-end devices with human detection and face detection function.
Support HDMI 4K， VGA 1080P HD output
Support ONVIF;access third party
Support web, CMS, center platform management software MYEYE, provide SDK development
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches etc.)

Specifications
Model	NBD88X09S-KL
System	Main processor / XM8536D
Operating System	Embedded Linux
System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface / 16-bit true color graphic menu operation interface, support mouse operation
Preview	1/2/4/9
Video	Video input (IP) / 9*4K
Video compression	H.265AI/H.265+(compatible H.265/H.264)
Display quality	Max:4K
Playback quality	4K/5M/4M/3M/1080P
Decode	14K/15M/14M/23M/3*1080P
VR	Unsupport
human shape / Face	Support(depend on camera)
Audio	Audio compression / G.711A
Intercom	support
record &play back	Recording mode / Manual>Alarm>Dynamic Detection>Timing
Local payback	14K/15M/14M/23M/3*1080P
Search mode	Search by Time/Calendar/Event/Channel/Face
Record storage	HDD、Network、Cloud
Backup mode	Network backup, USB hard disk, USB burner, SATA burner

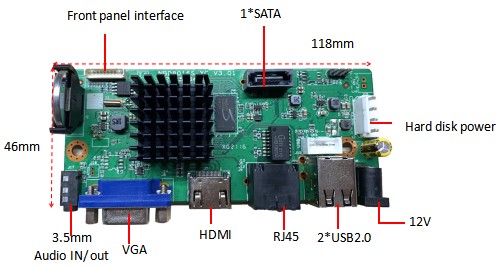

External interface	Video output / 1ch VGA，1ch HDMI HD output
Audio I/O	1/1（3.5mm）
Alarm I/O	0/0
Network interface	1*RJ45 10M/100M Adaptive Ethernet port
USB interface	2*USB2.0 ports(one USB extension interface is reserved)
HDD	1*SATA(Up to 14TB for each disk)
ESATA	No
Serial interface	No
Other	ONVIF / Support
Power supply	12V/2A
Power Consumption	<10W(Without HDD)
Work environment	Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
Dimension	118mm*46mm
Weight	A total of about 63g
