NVR8916E-NKL-V3
Network Video Recorder
- Maker:
- Xiongmai
- Device IDs:
- C638024Y
- Listed:
- 2023
JFTech
16*PoE NVR E Series
NVR8916E-NKL-V3 is an 16-channel PoE Dual hard drive position network HD hard disk recorder developed by our company. It supports a variety of intelligent functions such as human, face, car, and so on, Both as NVR for local independent work, but also networking to form a security system. Widely used in finance, telecommunications, transportation, electricity, education, water conservancy and other areas of security prevention.
| processor | NT98332 |
|---|---|
| system | Embedded Linux |
| Video input | 16*4K |
| Playback | 4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)1080P(8+2) |
| Decode | H.265AI/H.265+(compatible H.265/H.264) |
| Compression | G.711a |
| Intercom | support |
| Record mode | Manual>Alarm>Motiondetection>Timing |
| Inquire mode | Inquire by Time/Calendar/Event/Channel/Face |
| Storage mode | HDD Storage, Network Storage,CLoud Storage |
| Backup | Network, USB, SATA |
| HDMI output | 1*HDMI (MAX:4K) |
| VGA output | 1*VGA (MAX:1080P) |
| Ethernet port | 1*RJ45 1*10/100/1000Mbps Ethernet port |
| POE ports | 16 standard POE ports |
| Audio I/O | 1/1(3.5mm) |
| Alarm I/O | 0/0 |
| USB Port | 3*USB2.0 ports |
| HDD | 2*SATA interface (Up to 14TB) |
| Temperature | 0 ℃ - + 55 ℃ |
| Humidity | 10% -90% RH |
| Power supply | 48V/4A |
| Consumption | <10W(Without HDD) |
| Weight | Around 3.0KG |
| Dimension | 440(L)* 290mm(W)* 50mm(H) |

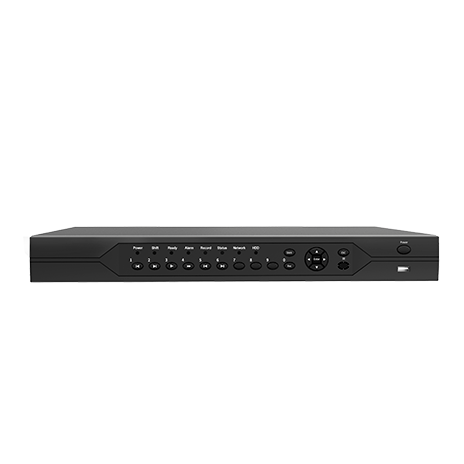

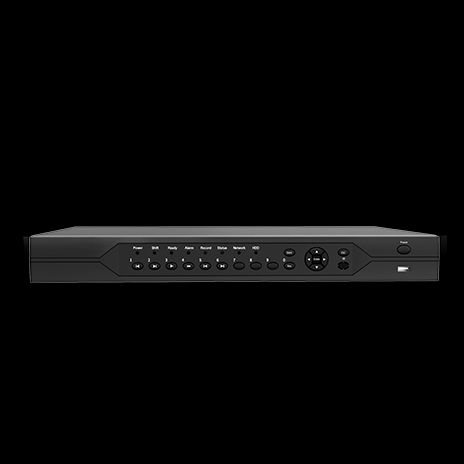

Photos
Files
- Parameters-for-NVR8916E-NKL-V3.pdf (document, 165 KB)
