RB-4P
4ch POE NVR Extension Board · NVR Board
- Maker:
- Xiongmai
- Listed:
- 2018
Xiongmai
4ch POE NVR Extension Board
Features
- conform to IEEE 802.3af
- The maximum transmission power is up to 15.4W
- The maximum power supply distance is 100m
- Support POE extended NVR board
- 4ch PoE RJ45 interface butt front-end PoE IPC，1ch RJ45 access LAN
- Reservation network port extension seat, docking PoE extended NVR board
- Reservation MIDO bus extension seat for VLAN
- 1ch 12V power supply output to PoE extended NVR
| Model | RB-4P |
|---|---|
| Network extended seat | Support for docking with NVR |
| POE( power supply ) | 15.4W output |
| POE( Data exchange ) | Automatic recognition PoE IPC |
| MDIO BUS | Support the functional configuration of the board |
| standards | IEEE 802.3，IEEE 802.3u，IEEE 802.3af |
| Interface | POE：4*10/100M RJ45 WLAN：1*10/100M RJ45 |
| Input power supply | 48V |
| Output power supply | Output 12V to NVR board |
| Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
| Dimension | 88mm*79.4mm |
| Weight | A total of about 78g |
Photos
Files

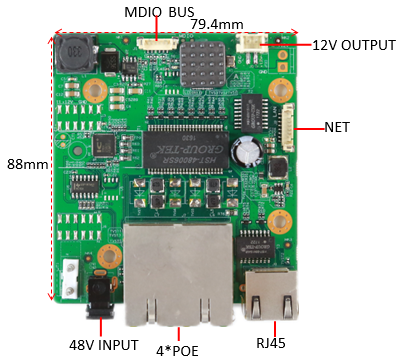

- interface-1.png (pinout, 209 KB)
