XAG-53TB50PTB-UA
AHD Camera Module
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
5MP Analog Video Camera Module
XAG-53TB50PTB-UA is a 5 million low-light bi-directional coaxial audio camera module, 5MP resolution, the image is more clear and detailed, support for bi-directional coaxial audio, zero-latency data transmission, full real-time, high-fidelity, long transmission distance, coaxial transmission of up to 500 meters, the standard coaxial control, the back-end call OSD, support for coaxial upgrades, respectively, access to the AHD/TVI/CVI back-end products, N system P system two-in-one, back-end deployment, easy switching, intelligent alerts, mainly used in ultra-high definition video surveillance cameras.
| ISP | TP3824 |
|---|---|
| Sensor | 1/2.7 inch Q03P sensor |
| Signal format | AHD/TVI/CVI/CVBS |
| Video Resolution | PAL/NTSC: 2592*1944 |
| Minimum Illumination | color：0.01Lux@（F1.2，AGC ON），0Lux with IR; Black & White：0.001Lux@（F1.2，AGC ON），0Lux with IR |
| Video output | XVI/AHD/TVI/CVI:5MP@20fps 5MP@12.5fps；CVBS:960H P/N |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| Lens Parameters | C/CS interface, M12 lens optional |
| Power | DC12V±10% |
| Coaxial Audio | Support 1ch IN/1ch OUT |
| Temperature and Humidity | - 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation) |
| Consumption | <5W |
| Size | 38mm*38mm |
| Remarks | Support UTC, coaxial upgrade |

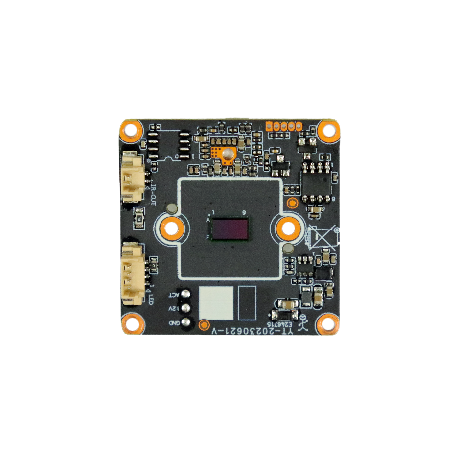

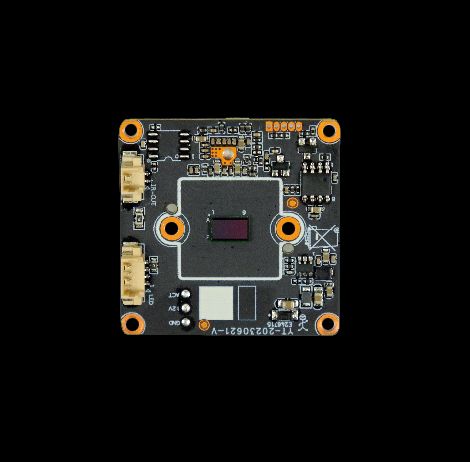

Photos
Files

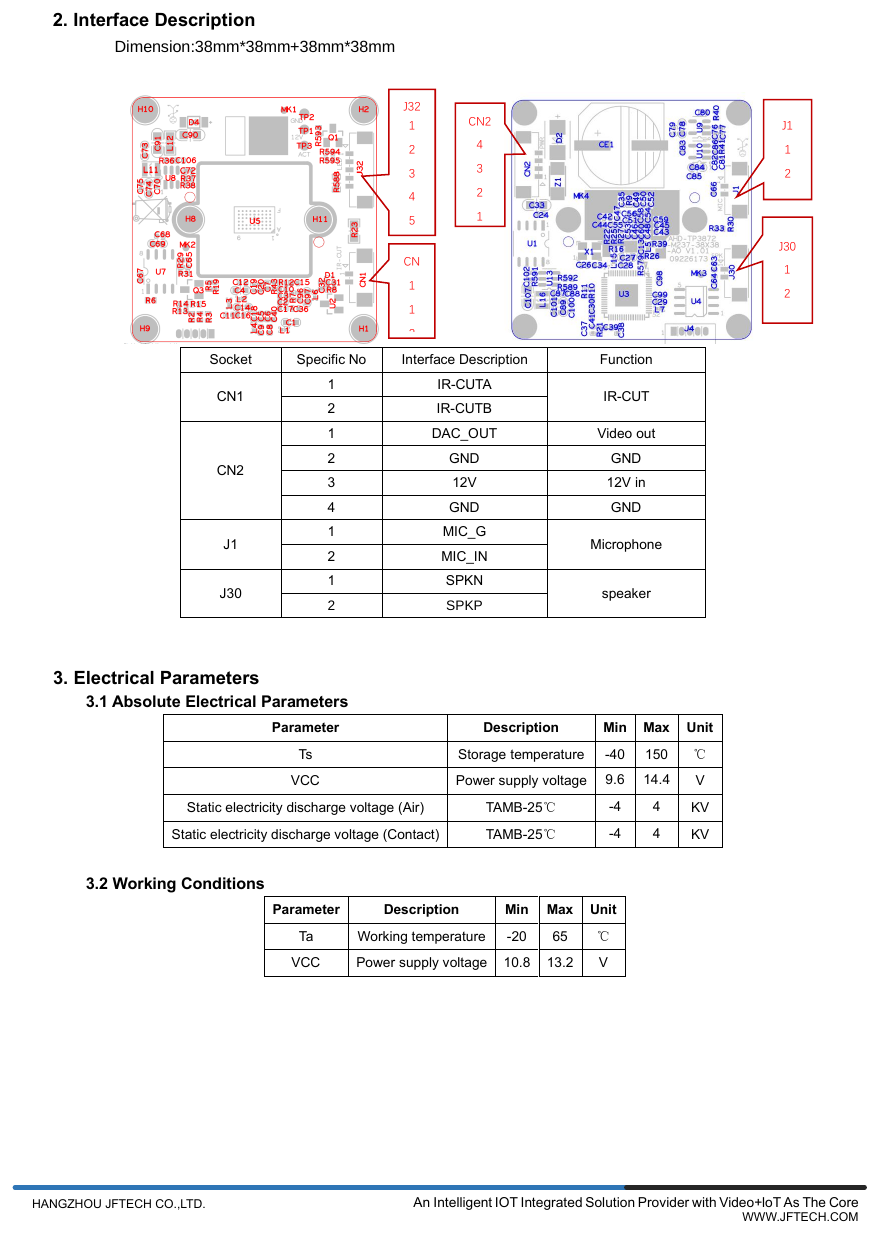

- XAG-53TB50PTB-UA-pinout-1.png (pinout, 217 KB)
- Parameters-for-XAG-53TB50PTB-UA.pdf (document, 480 KB)
