XAG-53X50PTB-U
AHD Camera Module
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
5MP Analog Video Camera Module
5MP FHD resolution, the image is more clear and delicate;
Zero-latency data transmission, full real-time, high fidelity;
Long transmission distance, coaxial transmission up to 500 meters;
Support UTC, enable OSD by the back-end;
Support coaxial upgrade, version upgrade convenient and efficient;
Support PIR function extension，can be connected with Passive
Infrared Detection devices;
Support XVI/AHD/TVI/CVI/CVBS DVR;
NTSC&PAL 2 in 1, easy to switch through back-end;
High-definition quality products with competitive price.
| ISP | XM350V200 |
|---|---|
| Sensor | 1/2.7 inch Q03P sensor |
| Signal format | XVI/AHD/TVI/CVI/CVBS |
| Video Resolution | PAL/NTSC : 2560*1920 |
| Minimum Illumination | color：0.1Lux@（F1.2，AGC ON），0Lux with IR; Black & White：0.01Lux@（F1.2，AGC ON），0Lux with IR |
| Video output | XVI/AHD/TVI/CVI:5MP@20fps 5MP@12.5fps；CVBS:960H P/N |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| Lens Parameters | C/CS interface, M12 lens optional |
| Power | DC12V±10% |
| Temperature and Humidity | - 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation) |
| Consumption | <5W |
| Size | Standard 32*32 positioning hole, compatible with 38*38 hole |
| Remarks | Support UTC, coaxial upgrade |

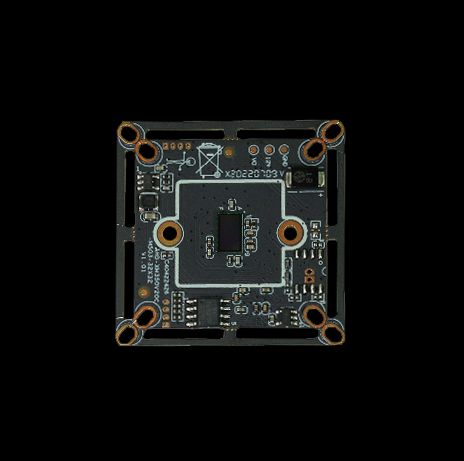

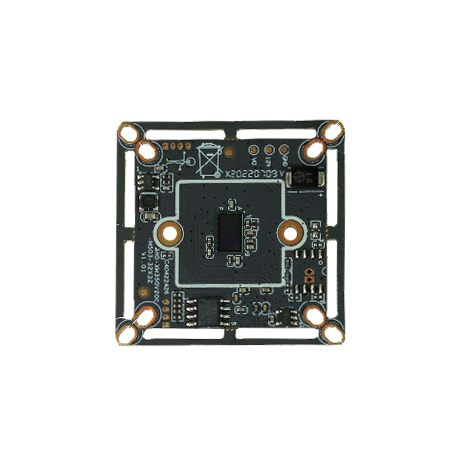

Photos
Files

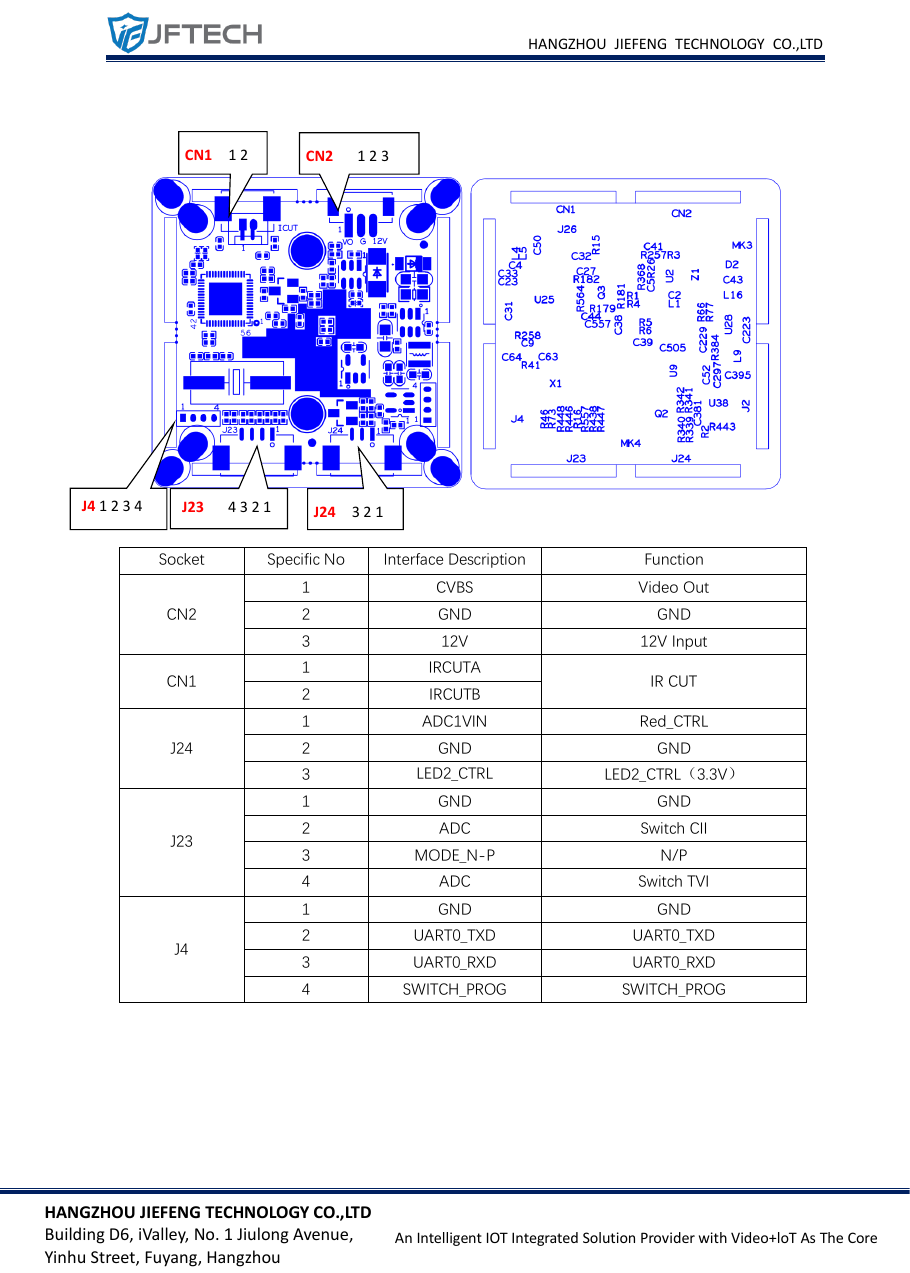

- XAG-53X50PTB-U-pinout-1.png (pinout, 146 KB)
- XAG-53X50PTB-U-Technical-parameters.pdf (document, 416 KB)
