XAG-53XA20PTA-HR
2.0MP XVI/AHD/TVI/CVI/CVBS Hybrid dual-light Module · XVI&AHD Hybrid Camera Module
- Maker:
- Xiongmai
- Listed:
- 2021
Xiongmai
2.0MP XVI/AHD/TVI/CVI/CVBS Hybrid dual-light Module
Features
- 1080P high resolution, 3D noise reduction,the image is more clear and delicate
- Zero-latency data transmission, full real-time, high fidelity
- Long transmission distance, coaxial transmission up to 500 meters
- Support UTC, enable OSD by the back-end
- Support coaxial upgrade, version upgrade convenient and efficient
- Compatible with AHD/TVI/CVI backend
- Support XVI，image quality is better
- NTSC&PAL 2 in 1, easy to switch through back-end
- High-definition quality products with competitive price
- infrared/white light dual-light intelligent switching
| Specifications | XAG-53XA20PTA-HR |
|---|---|
| ISP | XM330V300 |
| Sensor | 1/3 inch F37P sensor |
| Signal format | XVI/AHD/TVI/CVI/CVBS |
| Video Resolution | PAL/NTSC : 1920*1080 |
| Minimum Illumination | Color：0.01Lux@（F1.2，AGC ON），0Lux with IR / Black & White：0.001Lux@（F1.2，AGC ON），0Lux with IR |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| Lens Parameters | C/CS interface, M12 lens optional |
| Video output | 1080P@25fps |
| Power | DC12V±10% |
| Temperature and Humidity | - 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation) / Consumption |
| Size | Standard 32*32 positioning hole, compatible with 38*38 hole |
| Remarks | Support UTC,coaxial upgrade |
Photos
Files

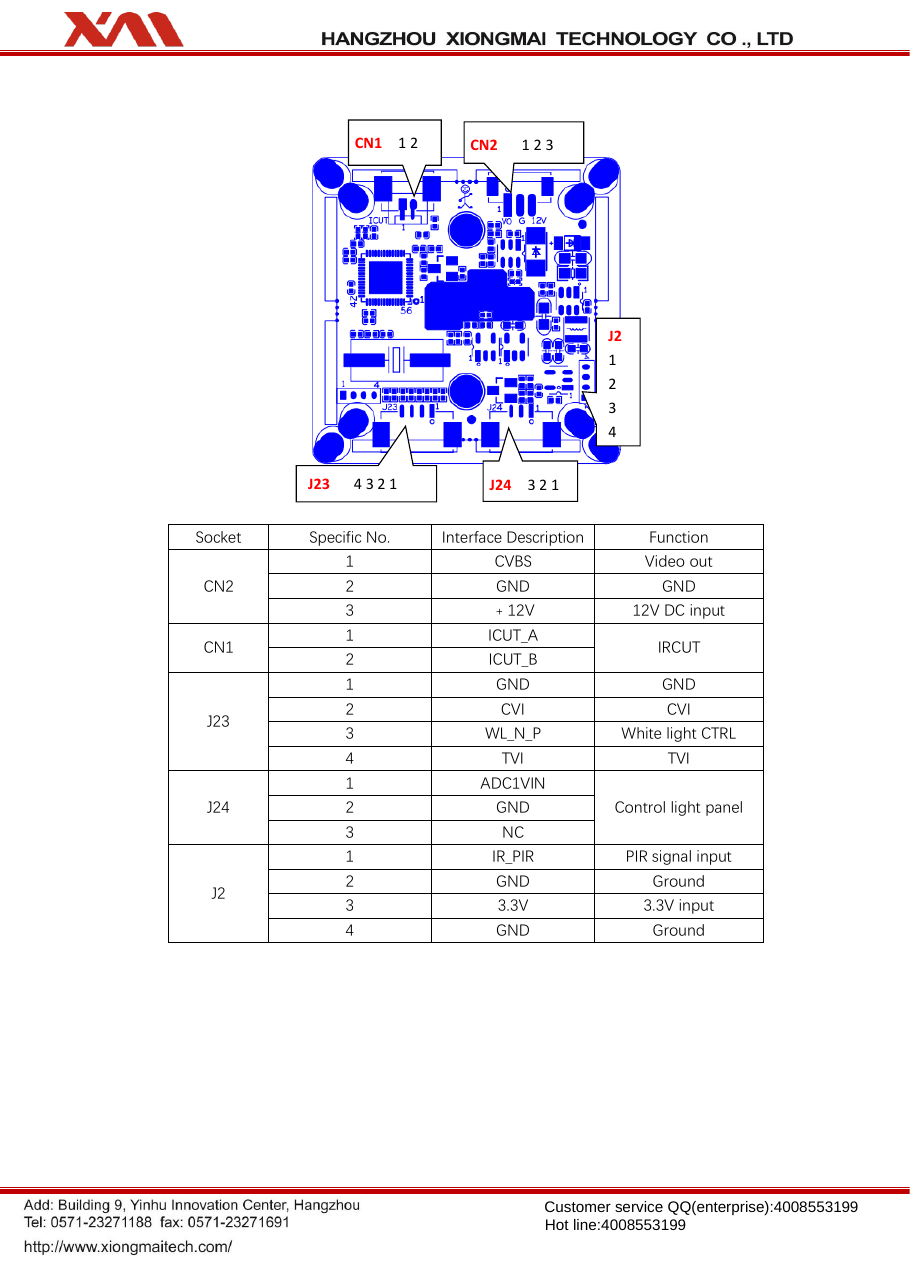

- XAG-53XA20PTA-HR-pinout-1.png (pinout, 134 KB)
- XAG-53XA20PTA-HR-interface-en.pdf (document, 1.2 MB)
- XAG-53XA20PTA-HR-interface-zh.pdf (document, 1.3 MB)
- XAG-53XA20PTA-HR-parameters.pdf (document, 1.4 MB)
