XM-ZH-338
4ch 4K POE Extension H.265 NVR Board · NVR Board
- Maker:
- Xiongmai
- SoC:
- HI3536CV100
- Listed:
- 2018
Xiongmai
4ch 4K POE Extension H.265 NVR Board
Features
- Requires external PoE expansion board, which supplies power and network connection
- Support HDMI, VGA output, 4K UHD output
- Support ONVIF, connects third-party devices
- Works with web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
- Powerful network services (DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.)
- Remote access with built-in domain name service (ARSP), one-click remote monitoring.
| Model | NBD8004R-YL(EP) |
|---|---|
| System | Main processor / Hi3536C |
| Operating system | Embedded Linux operating system |
| System resources | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-user network operation, USB backup |
| Interface | User interface / 16-bit true-color graphical menu, mouse operation |
| Display | 1/4 split screen |
| Video | Video input (IP) / 4*4K/4*1080P |
| Incoming bandwidth | 64Mbps |
| Forwarding bandwidth | 36Mbps |
| Video decoding | H.265++/H.265+/H.265/H.264 |
| Monitoring quality | Max:4K |
| Playback quality | 4K /1080P |
| Decoding capacity | 2*4K/4*1080P |
| VR | Not supported |
| Motion detection | Depends on the front-end camera |
| Audio | Standard / G.711A |
| Intercom | Not supported |
| Playback | Recording mode / manual > alarm > motion detection > schedule |
| Local playback | 2*4K/4*1080P |
| Recording search | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup method | Network backup, USB hard drive, USB burner, SATA burner |
| Interface | Video output / 1ch VGA, 1ch HDMI HD output |
| Audio I/O | 1/1 |
| Alarm I/O | 0/0 |
| Network interface | Network port provided by PoE expansion board |
| USB port | 2*USB2.0 ports |
| HDD interface | 1 SATA (up to 8TB per disk) |
| ESATA | None |
| Serial interface | None |
| ONVIF | Supported |
| Power supply | 12V power input from PoE expansion board / Power consumption |
| Operating environment | Temperature: 0℃~+55℃, humidity: 10%~90% RH, atmospheric pressure: 86kPa~106kPa |
| Dimensions | 137.5mm*82mm |
| Weight | Approx. 78g total |
Photos
Files

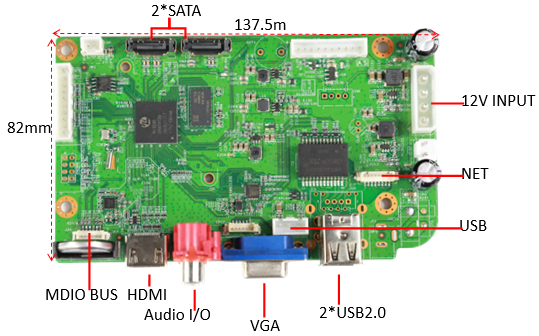

- interface-1.png (pinout, 283 KB)
